Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 40 | Depth (in) | 115 | Overall Height (in) | 143 | Weight (lbs) | 380 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 10 | Overhang Clearance (in) | 98 x 16.5 |
| Platform Height (in) | 100 | Platform Size (in) | 28 x 38 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 168 x 40 x 79 |
Specifications

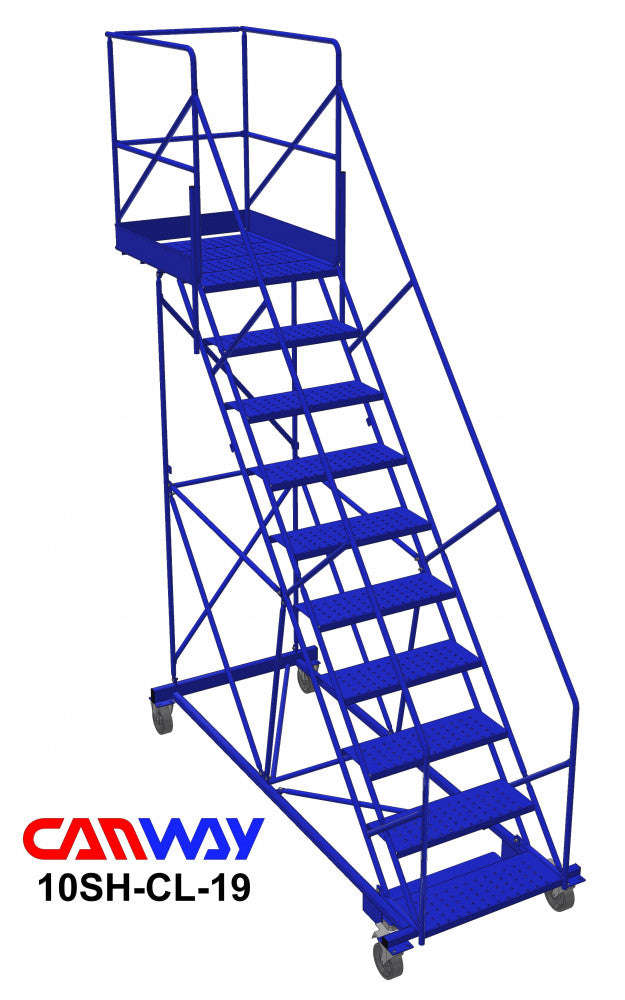

x10 Step 50° Cantilever Mobile Ladder Stand, 19" overhang
The Canway Equipment 10 Step 50° Cantilever Mobile Ladder Stand provides cantilever access to hard-to-reach areas with a 50° safety angle that allows the user to face forward while descending. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit features a 19" platform depth plus overhang, non-slip 9-1/2" raised perforated dimpled treads, and four 6" phenolic casters (two swivel with metal total lock brake and two rigid). Tested and approved by an Ontario Professional Engineer, the mobile ladder complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements. Maximum rated load is 400 lbs (one person only). Ships knocked down.
Technical Specifications
- Width (in): 40
- Depth (in): 115
- Overall Height (in): 143
- Weight (lbs): 380
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 10
- Overhang Clearance (in): 98 x 16.5
- Platform Height (in): 100
- Platform Size (in): 28 x 38
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 168 x 40 x 79
Common Applications
- Warehouse picking and storage access
- Distribution center order fulfillment
- Industrial production lines and machine access
- Facility maintenance and overhead servicing
- Inventory management and mezzanine access
Safety and Stability
The cantilever design and 50° safety angle promote forward-facing descent while the non-slip perforated treads and 6" phenolic casters with two swivel total-lock brakes ensure secure footing and positional stability. The unit meets ANSI 14.7 and OSHA 1910.29 standards and is validated by an Ontario Professional Engineer; maximum rated load is 400 lbs for one person.
Key Benefits
- High capacity: 400 lb rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tubing with powder coat finish
- Improved access: cantilever platform and 19" overhang for hard-to-reach areas
- Mobility: four 6" phenolic casters with two swivel casters and metal total lock brake
- Safe ascent/descent: 50° step angle and non-slip raised perforated treads
Frequently Asked Questions
What standards does this ladder comply with?
The ladder complies with ANSI 14.7 and OSHA 1910.29 and with applicable Ontario Occupational Health and Safety Act Regulation 851 requirements; it has been tested and approved by an Ontario Professional Engineer.
How is the product shipped and assembled?
The unit ships knocked down with a shipping size of 168 x 40 x 79 in; assembly instructions and user guide are available on the manufacturer website.
Ordering and Shipping
To purchase or request a quote for the Canway 10 Step 50° Cantilever Mobile Ladder Stand, contact Material Handling Canada or visit materialhandlingcanada.com for ordering, certification documents, schematic drawings, assembly instructions and shipping information.
