Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 39 | Depth (in) | 133 | Overall Height (in) | 143 | Weight (lbs) | 532 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 10 | Overhang Clearance (in) | 98 x 35.5 |
| Platform Height (in) | 100 | Platform Size (in) | 28 x 57 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 186 x 39 x 79 |
Specifications

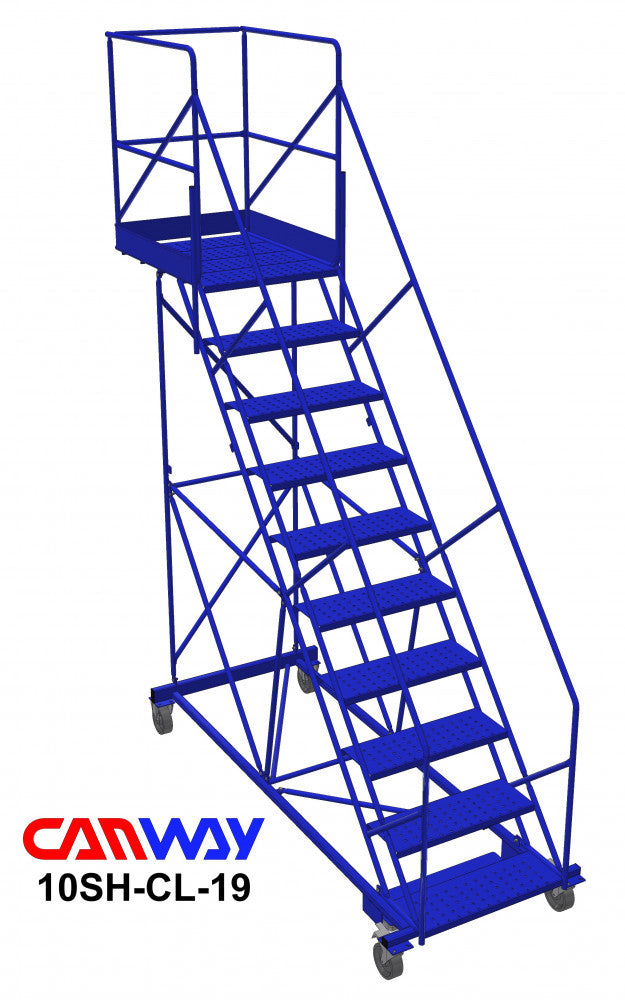

x10 Step 50° Cantilever Mobile Ladder Stand, 38" overhang
Cantilever design allows access to hard-to-reach areas with a 50° safety angle that lets the user face forward while descending. Constructed from 1" x 16 ga. round steel tube with a durable blue powder coat finish, the unit features a 19" platform depth plus 38" overhang and non-slip 9-1/2" deep perforated, dimpled treads. Four 6" phenolic casters (two swivel with metal total lock brake and two rigid) provide mobility. Rated for a maximum single-person load of 400 lb. Ships knocked down; see manufacturer documentation for assembly instructions, schematics, and Canway certification.
Technical Specifications
- Width (in): 39
- Depth (in): 133
- Overall Height (in): 143
- Weight (lbs): 532
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 10
- Overhang Clearance (in): 98 x 35.5
- Platform Height (in): 100
- Platform Size (in): 28 x 57
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 186 x 39 x 79
Common Applications
- Warehouse picking and order fulfillment
- Distribution center access for mezzanines and racking
- Industrial assembly and inspection platforms
- Facility maintenance and overhead servicing
Safety and Stability
Complies with ANSI 14.7 and OSHA 1910.29 and applicable Ontario Regulation 851 requirements. Tested and approved by an Ontario Professional Engineer for steel mobile ladder stands. Four phenolic casters with two swivel units that include metal total lock brakes provide controlled mobility and on-site stability.
Key Benefits
- 400 lb capacity for single-person use
- Durable 1" x 16 ga. steel construction with powder coat finish for long service life
- Cantilever design and 38" overhang for access to hard-to-reach areas
- Non-slip, perforated 9-1/2" deep treads for secure footing
- Mobile with locking swivel casters for repositioning and safe placement
Frequently Asked Questions
Q: What is the maximum load capacity?
A: Maximum rated load is 400 lbs (one person only).
Q: Does it meet regulatory safety standards?
A: Yes. It complies with ANSI 14.7, OSHA 1910.29, and applicable Ontario Regulation 851; tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
Contact Material Handling Canada to purchase or arrange shipment. For product details, assembly instructions, schematic drawings, and certification documents, visit materialhandlingcanada.com or contact our sales team for quoting and lead time information.
