Description
xMobile Ladder Stand with Front Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 73 | Overall Height (in) | 132 | Weight (lbs) | 190 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 10 | Platform Height (in) | 90 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 144 x 38 x 39 |
Specifications

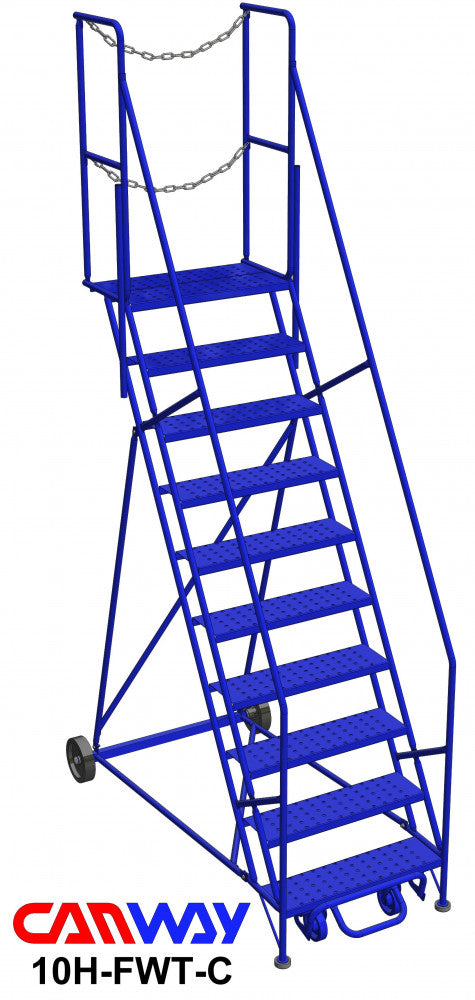

x10 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through
Canway Equipment mobile ladder stand with front walk through and diamond channel grating provides safe access to platforms and raised surfaces. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit features 15" platform depth, 7-1/2" deep non-slip diamond channel grating treads, a positive floor locking trip step mechanism, snap chain, and a 400 lb. maximum rated load (one person only). Units 4H-5H ship fully assembled; 6H-20H ship knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety regulations; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width: 38 in
- Depth: 73 in
- Overall Height: 132 in
- Weight: 190 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 10
- Platform Height: 90 in
- Platform Size: 28 x 15 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Shipping Size: 144 x 38 x 39 in
Common Applications
- Order for warehouse access and stock picking
- Distribution center operations and mezzanine access
- Industrial manufacturing floor access and machine servicing
- Facility maintenance and inspection tasks
- General maintenance and repair work where safe, mobile elevated access is required
Safety and Stability
The ladder stand includes non-slip diamond channel treads, a positive floor locking trip step mechanism, snap chain and compliant handrails. Designed and tested to meet ANSI 14.7, OSHA 1910.29 and relevant Ontario safety regulations to ensure stable, single-person use at a 400 lb capacity.
Key Benefits
- High capacity: 400 lb maximum rated load for single-user operation
- Durable construction: 1" x 16 ga. steel tube and powder coat finish for long service life
- Safe footing: non-slip diamond channel grating treads and positive locking step
- Mobility: polyolefin wheels and rubber swivel casters for easy positioning
- Efficiency: 15" platform depth and front walk-through access for faster tasks
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs and is intended for one person only.
Does the unit ship assembled?
Units 4H-5H ship fully assembled; units 6H-20H ship knocked down for shipping.
Ordering and Shipping
Contact Material Handling Canada to order or request a quote for this Canway Equipment ladder stand. Visit materialhandlingcanada.com or contact our sales team for availability, lead times and shipping details.
