Description

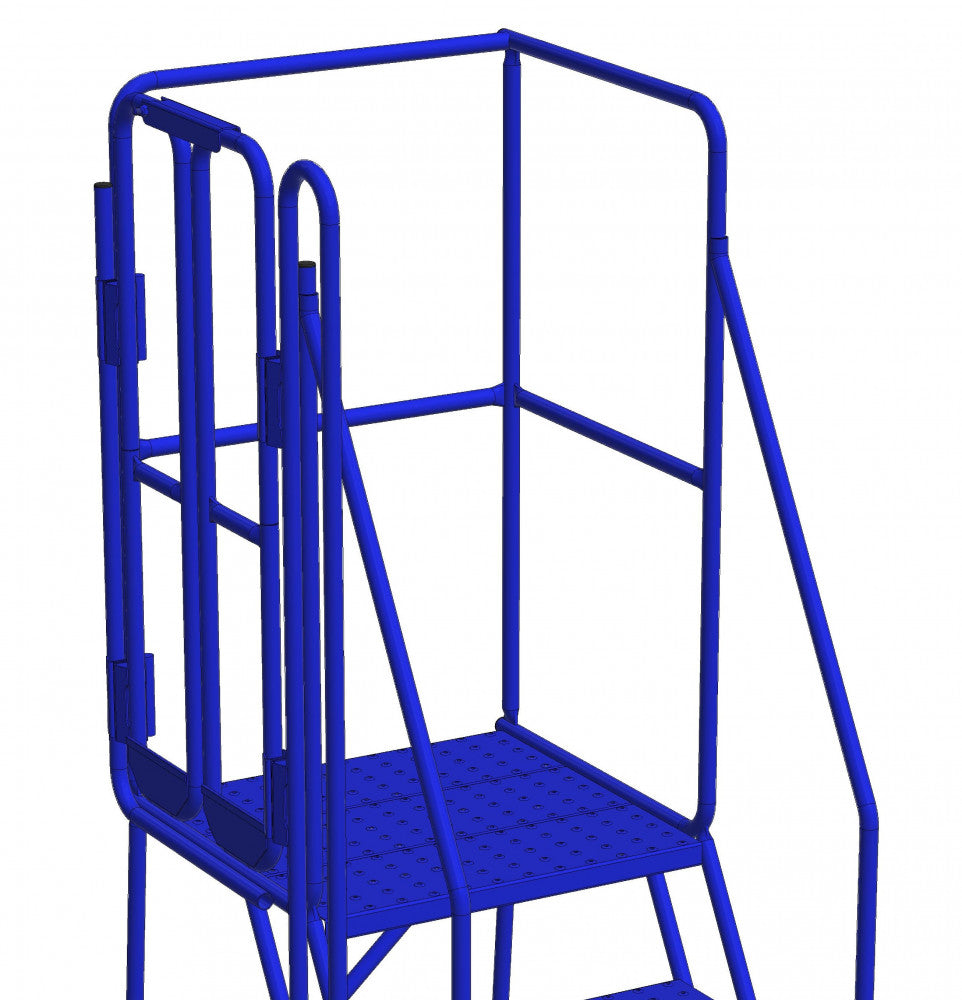

xMobile Ladder Stand with Left Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 78 | Overall Height (in) | 132 | Weight (lbs) | 190 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 10 | Platform Height (in) | 90 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 156 x 38 x 55 |
Specifications
x10 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through, Double Gate
Mobile Ladder Stand with Left Walk Through, Double Gate, Diamond Channel Grating allows for easy access to platforms and other raised surfaces. Spring loaded double gate with latch and positive floor locking trip step mechanism enhance safe use. Constructed of 1" x 16 ga. round tube with non-slip diamond channel grating tread on 7-1/2" deep steps and a 22.5" platform depth. Durable blue powder coat finish. Ships knocked down. Maximum rated load: 400 lbs (one person only). Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width (in): 38
- Depth (in): 78
- Overall Height (in): 132
- Weight (lbs): 190
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 10
- Platform Height (in): 90
- Platform Size (in): 28 x 22.5
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 156 x 38 x 55
Common Applications
- Warehouse access to mezzanines and elevated platforms
- Distribution center picking and inventory tasks
- Industrial assembly and maintenance platforms
- Facility service access for HVAC, lighting, and utilities
- Maintenance and repair operations requiring mobile elevation
Safety and Stability
The unit features a spring-loaded double gate with latch, positive floor locking trip step mechanism, non-slip diamond channel grating treads, and meets ANSI 14.7 and OSHA 1910.29 standards. Engineered and tested to applicable Ontario and North American safety requirements for reliable stability under the rated load.
Key Benefits
- 400 lb rated capacity for one-person tasks
- Durable steel construction with powder coat finish for long service life
- Diamond channel grating and 7-1/2" tread depth for slip resistance
- Mobile design with polyolefin wheels and rubber swivel casters for maneuverability
- Left walk-through design and double gate for efficient access
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person.
Does the ladder meet regulatory standards?
Yes. It complies with ANSI 14.7 and OSHA 1910.29 and applicable Ontario Regulation 851; it has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada for ordering and shipping details. Visit materialhandlingcanada.com to inquire about lead times, freight, and availability through Canway Equipment.
