Description

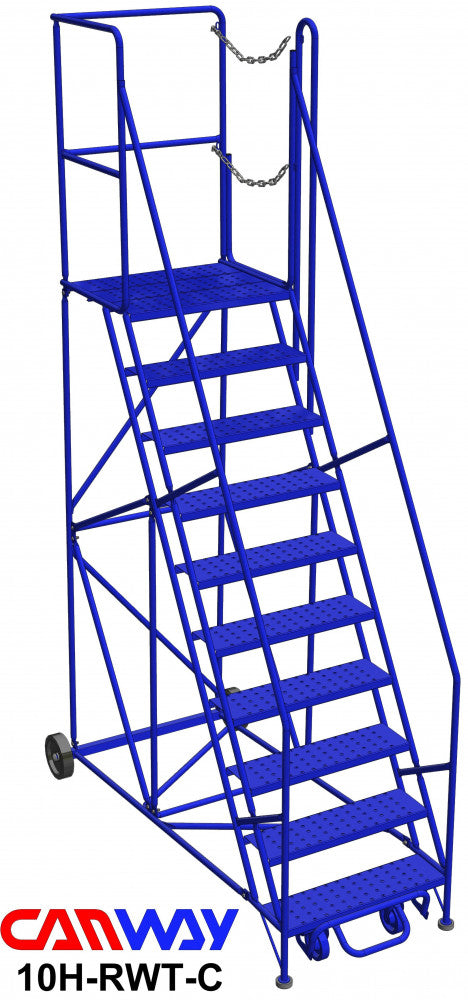

xMobile Ladder Stand with Right Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 78 | Overall Height (in) | 132 | Weight (lbs) | 190 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 10 | Platform Height (in) | 90 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 156 x 38 x 55 |
Specifications
x10 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through
Mobile Ladder Stand with Right Walk Through and diamond channel grating provides safe access to elevated platforms and raised surfaces and includes a snap chain for added security. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit features 22.5" platform depth, 7-1/2" non-slip diamond channel grating treads, a positive floor locking trip step mechanism, and a maximum rated load of 400 lb (one person only). Units 4H-5H ship fully assembled; 6H-20H ship knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel models.
Technical Specifications
- Width: 38 in
- Depth: 78 in
- Overall Height: 132 in
- Weight: 190 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat (Blue)
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 10
- Platform Height: 90 in
- Platform Size: 28 x 22.5 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail: 42 in
- Shipping Size: 156 x 38 x 55 in
Common Applications
- Warehouse access and inventory stocking
- Distribution center order picking and staging
- Industrial equipment servicing and inspection
- Facility maintenance and elevated light-duty tasks
- Safe access for manufacturing line changeovers
Safety and Stability
The ladder stand is engineered for stability with a positive floor locking trip step mechanism, non-slip diamond channel grating treads, and compliance to ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851. It is tested and approved by an Ontario Professional Engineer; maximum rated load is 400 lb for one person.
Key Benefits
- 400 lb rated capacity for single-user access
- Durable steel construction with powder coat finish for long service life
- Mobile design with 8" polyolefin wheels and 5" rubber swivel casters for repositioning
- Non-slip diamond channel grating for improved footing and safety
- Ships assembled or knocked down depending on model for flexible logistics
Frequently Asked Questions
What standards does this ladder meet?
It complies with ANSI 14.7, OSHA 1910.29 and applicable provisions of the Ontario Occupational Health and Safety Act Regulation 851 and is tested by an Ontario Professional Engineer.
How is the unit shipped?
Models 4H-5H ship fully assembled; models 6H-20H ship knocked down. Shipping size is 156 x 38 x 55 in.
Ordering and Shipping
To buy or request a quote for the 10 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through from Canway Equipment, contact Material Handling Canada via materialhandlingcanada.com for pricing, lead times and shipping options.
