Description

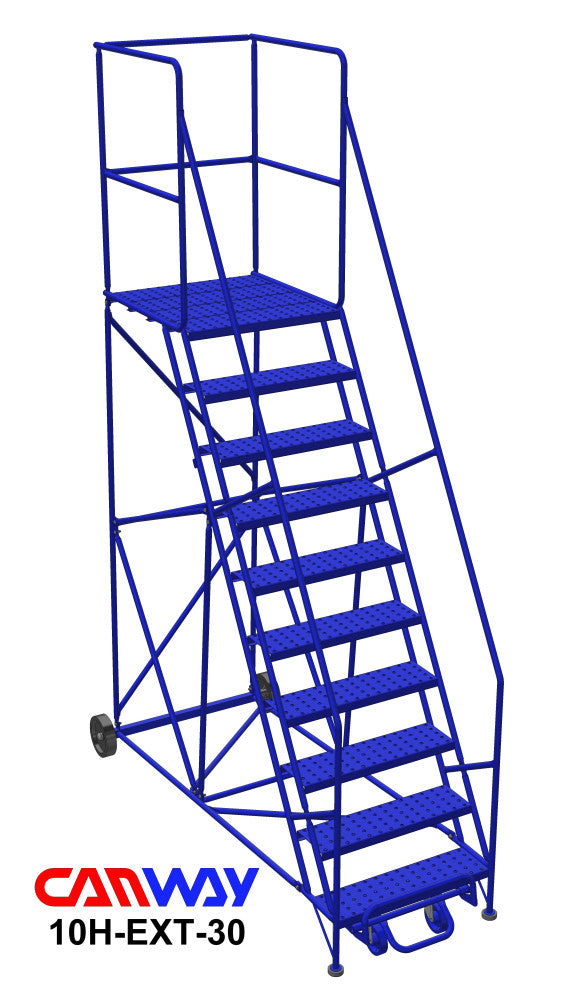

xMobile Ladder Stand with Diamond Channel Grating and Extended Platform
- 1" x 16 ga. round tube construction
- 30" platform depth
- 7-1/2" deep non-slip diamond channel grating steps
- Positive floor-locking trip step mechanism
- 400 lb capacity
- Ships knocked down
- Durable blue powder coat finish
- Complies with ANSI 14.7 and OSHA 1910.29 mobile ladder standards
- Complies with Ontario Occupational Health and Safety Act, Regulation 851
- Tested and approved by an Ontario Professional Engineer (Canada & USA)
- Maximum rated load: 400 lbs (one person only)
Specifications
| Width (in) | 38 | Depth (in) | 85 |
| Overall Height (in) | 132 | Weight (lbs) | 205 |
| Capacity (lbs) | 400 | Material | Steel |
| Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin |
| Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 10 | Platform Height (in) | 90 |
| Platform Size (in) | 28 x 30 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 |
| Shipping Size (in) | 144 x 38 x 39 |
Specifications
x10 Step 60° Mobile Ladder Stand with Diamond Channel Grating and Extended Platform
Canway Equipment mobile ladder stand constructed with 1" x 16 ga. round tube, 30" platform depth and 28 x 30" platform size. Steps are 7-1/2" deep with non-slip diamond channel grating tread, positive floor locking trip step mechanism, 400 lb maximum rated load (one person only), durable blue powder coat finish. Ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851. Tested and approved by an Ontario Professional Engineer for steel and stainless steel designs covering Ontario, Canada and the United States.
Technical Specifications
- Width: 38 in
- Depth: 85 in
- Overall Height: 132 in
- Weight: 205 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 10
- Platform Height: 90 in
- Platform Size: 28 x 30 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Shipping Size: 144 x 38 x 39 in
Common Applications
- Warehouse picking and stock replenishment
- Distribution center order fulfillment
- Industrial production line access
- Facility maintenance and inspection tasks
- Safe access for inventory and mezzanine work
Safety and Stability
Designed for one-person use with a 400 lb rated load, non-slip diamond channel treads, positive floor locking trip step mechanism, and engineered compliance to ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 to ensure reliable stability and regulatory conformance.
Key Benefits
- High load capacity: 400 lb rating for single-person tasks
- Durable construction: 1" x 16 ga. steel tube with powder coat finish
- Safe footing: 7-1/2" deep diamond channel grating steps
- Extended work area: 30" platform depth and 28 x 30" platform
- Mobility: polyolefin wheels and rubber swivel casters for transport
- Regulatory compliance: engineered and tested to applicable standards
Frequently Asked Questions
What is the maximum load capacity?
The ladder stand is rated for a maximum load of 400 lbs and intended for one person only.
Does the product meet safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or order the 10 Step 60° Mobile Ladder Stand from Canway Equipment, contact Material Handling Canada for pricing, lead times and shipping options. Visit materialhandlingcanada.com or contact our sales team to buy, order or arrange shipment and supply.
