Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 40 | Depth (in) | 124 | Overall Height (in) | 153 | Weight (lbs) | 385 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 11 | Overhang Clearance (in) | 108 x 16.5 |
| Platform Height (in) | 110 | Platform Size (in) | 28 x 38 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 181 x 40 x 79 |
Specifications

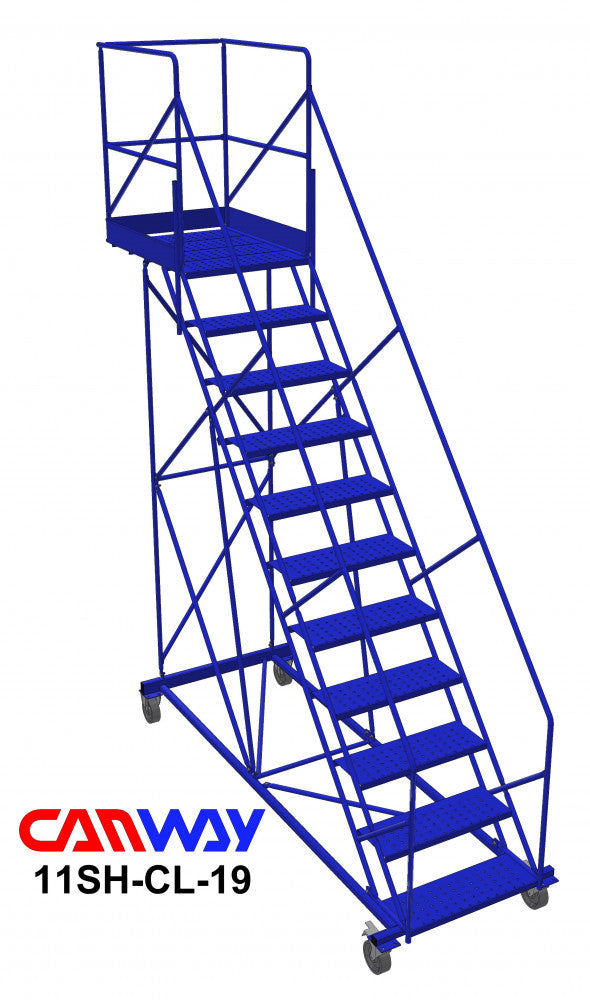

x11 Step 50° Cantilever Mobile Ladder Stand, 19" overhang
Cantilever design provides access to hard-to-reach areas with a 50° safety angle that allows the user to face forward while descending. Constructed from 1" x 16 ga. round steel tube with a durable blue powder coat finish. Platform depth is 19" plus overhang; steps feature a non-slip, raised, perforated dimpled tread pattern. Features four 6" phenolic casters (two swivel with metal total lock brake and two rigid). Rated 400 lb capacity; ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width (in): 40
- Depth (in): 124
- Overall Height (in): 153
- Weight (lbs): 385
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 11
- Overhang Clearance (in): 108 x 16.5
- Platform Height (in): 110
- Platform Size (in): 28 x 38
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 181 x 40 x 79
Common Applications
- Warehouse picking and stocking
- Distribution center order fulfillment
- Industrial assembly and production lines
- Facility maintenance and overhead access
- Equipment service and inspection tasks
Safety and Stability
Designed and tested for one-person use with a maximum rated load of 400 lbs. Non-slip perforated steps, full handrails, and locking swivel casters provide stability. Meets ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 safety requirements; professional engineering approval provided.
Key Benefits
- High capacity: 400 lb maximum rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish for long service life
- Mobility: four 6" phenolic casters with two swivel total-lock brakes for controlled positioning
- Access efficiency: cantilever design and 19" platform depth with overhang for hard-to-reach areas
- Operator safety: 50° step angle, full handrails and non-slip tread pattern
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person.
Does the unit comply with safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851; it has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request shipping and assembly details, contact Material Handling Canada through materialhandlingcanada.com. Our team can provide quotes, lead times, and technical documentation including assembly instructions, schematics and certification statements.
