Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 39 | Depth (in) | 150 | Overall Height (in) | 163 | Weight (lbs) | 580 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 12 | Overhang Clearance (in) | 118 x 35.5 |
| Platform Height (in) | 120 | Platform Size (in) | 28 x 57 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 212 x 39 x 79 |
Specifications

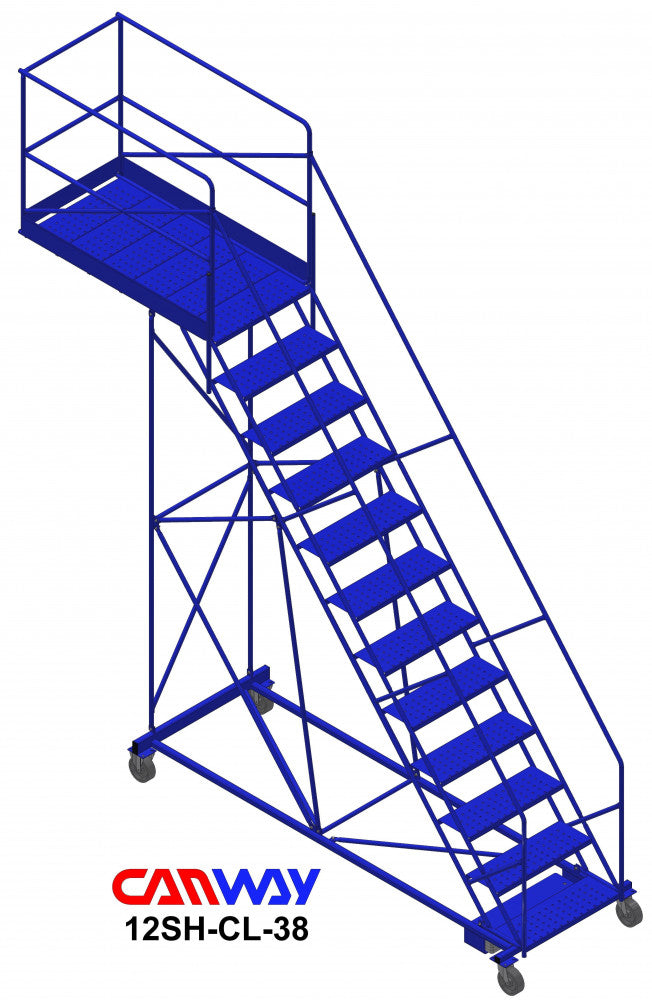

x12 Step 50° Cantilever Mobile Ladder Stand, 38" overhang
Cantilever design provides access to hard-to-reach areas while the 50° safety angle allows users to face forward when descending. Constructed from 1" x 16 ga. round steel tubing with a durable blue powder coat finish, this mobile ladder stand features a 19" platform depth plus overhang, non-slip 9-1/2" deep perforated dimpled treads, and four 6" phenolic casters (2 swivel with metal total lock brake, 2 rigid). Rated for a maximum 400 lb load (one person only) and compliant with ANSI 14.7, OSHA 1910.29 and applicable Ontario regulations; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width: 39 in
- Depth: 150 in
- Overall Height: 163 in
- Weight: 580 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size: 6 x 2 in
- Caster Type: Phenolic
- # of Steps (incl. Platform): 12
- Overhang Clearance: 118 x 35.5 in
- Platform Height: 120 in
- Platform Size: 28 x 57 in
- Step Angle: 50°
- Step Width: 28 in
- Handrail: 42 in
- Shipping Size: 212 x 39 x 79 in
Common Applications
- Warehouse picking and racking access
- Distribution center order fulfillment
- Industrial assembly and tooling stations
- Facility maintenance and overhead access
Safety and Stability
Features non-slip perforated steps, handrails, and four phenolic casters with two swivel casters that include metal total lock brakes to ensure positional stability. Complies with ANSI 14.7, OSHA 1910.29 and Ontario safety requirements; rated for one person up to 400 lbs.
Key Benefits
- High capacity: 400 lb maximum rated load
- Durable construction: 1" x 16 ga. steel tubing with powder coat finish
- Enhanced mobility: four 6" phenolic casters with locking swivel casters
- Improved safety: 50° step angle for forward-facing descent and non-slip tread
- Access efficiency: cantilever design and 19" platform depth with 38" overhang
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person only.
Does it meet industry safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario regulations and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To buy or request a quote for the 12 Step 50° Cantilever Mobile Ladder Stand from Canway Equipment, contact Material Handling Canada. Visit materialhandlingcanada.com or reach out to our sales team to order, arrange shipping, and obtain assembly instructions, schematics, and certification documents.
