Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 39 | Depth (in) | 160 | Overall Height (in) | 163 | Weight (lbs) | 692 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 12 | Overhang Clearance (in) | 118 x 45 |
| Platform Height (in) | 120 | Platform Size (in) | 28 x 66 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 221 x 39 x 79 |
Specifications

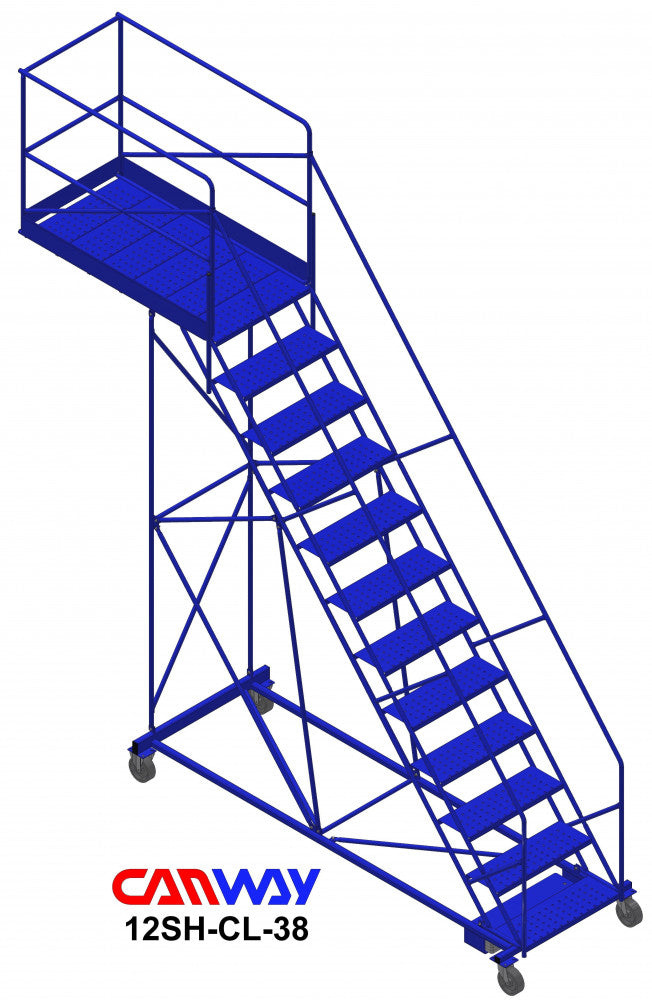

x12 Step 50° Cantilever Mobile Ladder Stand, 47" overhang
Cantilever design allows access to hard-to-reach areas with a 50° safety angle so the user faces forward while descending. Constructed from 1" x 16 ga. round steel tube with a durable blue powder coat finish, the unit features a 19" platform depth plus the 47" overhang, 9-1/2" deep non-slip perforated steps and four 6" phenolic casters (2 swivel with metal total lock brake and 2 rigid). Rated for one person with a maximum load of 400 lb. Ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards. See manufacturer documents for assembly, schematics and certification.
Technical Specifications
- Width (in): 39
- Depth (in): 160
- Overall Height (in): 163
- Weight (lbs): 692
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 12
- Overhang Clearance (in): 118 x 45
- Platform Height (in): 120
- Platform Size (in): 28 x 66
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 221 x 39 x 79
Common Applications
- Warehouse picking and inventory access
- Distribution center staging and pallet handling
- Industrial machine access and maintenance
- Facility servicing and overhead stock retrieval
Safety and Stability
The ladder stand meets ANSI 14.7 and OSHA 1910.29 requirements and is tested and approved by an Ontario Professional Engineer. Non-slip raised perforated steps, handrails and metal total lock brakes on swivel casters provide stable, code-compliant access for one person at a 400 lb maximum rated load.
Key Benefits
- High capacity: 400 lb rated load for single-user operations
- Durable construction: 1" x 16 ga. steel tube and powder coat finish for long service life
- Mobility: four 6" phenolic casters with two total lock brakes for secure positioning
- Efficient access: 50° angle and cantilever design improve reach and ergonomics
- Compliance: engineered and certified to applicable safety standards
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs (one person only).
Does the unit ship assembled?
The product ships knocked down; assembly instructions and user guide are available from the vendor.
Ordering and Shipping
To purchase or request shipping for the 12 Step 50° Cantilever Mobile Ladder Stand from Canway Equipment, contact Material Handling Canada via materialhandlingcanada.com for quotes, lead times and ordering assistance.
