Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 40 | Depth (in) | 140 | Overall Height (in) | 173 | Weight (lbs) | 372 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 13 | Overhang Clearance (in) | 128 x 16.5 |
| Platform Height (in) | 130 | Platform Size (in) | 28 x 38 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 207 x 40 x 79 |
Specifications

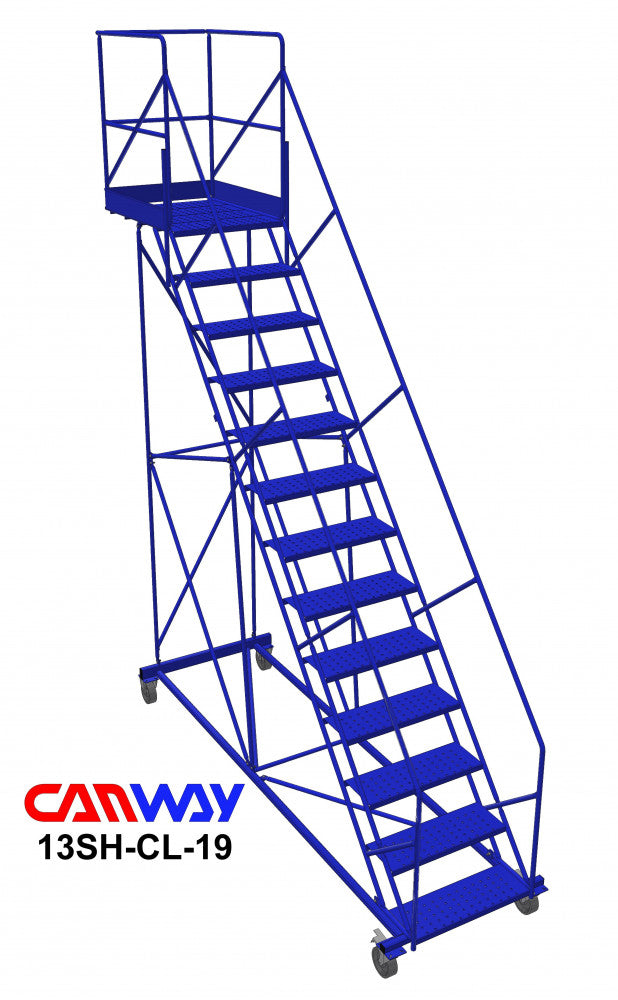

x13 Step 50° Cantilever Mobile Ladder Stand, 19" overhang
Cantilever design provides access to hard-to-reach areas while the 50° safety angle allows the user to face forward when descending. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit ships knocked down and is tested and approved by an Ontario Professional Engineer. Platform depth with overhang is 19", steps feature a 9-1/2" deep non-slip raised perforated dimpled tread, and the ladder complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 safety standards. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width (in): 40
- Depth (in): 140
- Overall Height (in): 173
- Weight (lbs): 372
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 13
- Overhang Clearance (in): 128 x 16.5
- Platform Height (in): 130
- Platform Size (in): 28 x 38
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 207 x 40 x 79
Common Applications
- Warehouse picking and storage access
- Distribution center order fulfillment
- Industrial production and assembly platforms
- Facility maintenance and servicing
- Loading dock and racking access
Safety and Stability
Equipped with four 6" phenolic casters (2 swivel with metal total lock brake, 2 rigid) and a 50° safety step angle for forward-facing descent. Designed and tested to meet ANSI 14.7, OSHA 1910.29 and relevant Ontario safety regulations for stable, single-user operation at a 400 lb capacity.
Key Benefits
- 400 lb capacity for single-person tasks
- Durable 1" x 16 ga. steel construction with powder coat finish for long service life
- Cantilever platform and 19" overhang for access to hard-to-reach areas
- Non-slip perforated dimpled tread steps for worker safety
- Mobile design with locking swivel casters for efficient repositioning
Frequently Asked Questions
What is the maximum load capacity?
Maximum rated load is 400 lbs for one person.
Does this ladder meet regulatory standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements, and is tested by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or obtain a quotation, contact Material Handling Canada through materialhandlingcanada.com for product availability, ladder assembly instructions, schematics and Canway certification docs. Our team can advise on shipping, lead times and site requirements.
