Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 39 | Depth (in) | 168 | Overall Height (in) | 173 | Weight (lbs) | 637 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 13 | Overhang Clearance (in) | 128 x 45 |
| Platform Height (in) | 130 | Platform Size (in) | 28 x 66 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 234 x 39 x 79 |
Specifications

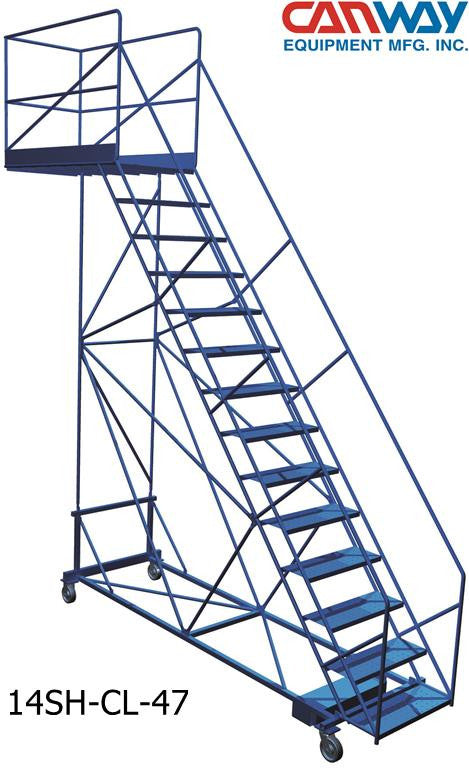

x13 Step 50° Cantilever Mobile Ladder Stand, 47" overhang
Cantilever design allows access to hard-to-reach areas while a 50° safety angle lets users face forward when descending. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, this mobile ladder features a 19" platform depth plus 47" overhang, non-slip 9-1/2" deep perforated steps, and four 6" phenolic casters (two swivel with metal total lock brake and two rigid). Rated for a maximum single-user load of 400 lb and shipped knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel units.
Technical Specifications
- Width (in): 39
- Depth (in): 168
- Overall Height (in): 173
- Weight (lbs): 637
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 13
- Overhang Clearance (in): 128 x 45
- Platform Height (in): 130
- Platform Size (in): 28 x 66
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 234 x 39 x 79
Common Applications
- Warehouse order picking and stock replenishment
- Distribution center access to high racking
- Industrial maintenance and machine servicing
- Facility facilities access for HVAC, electrical, and lighting work
Safety and Stability
The ladder is designed with a cantilever platform and 50° step angle for secure forward-facing use. Non-slip perforated treads, full handrails, and metal total-lock braking on swivel casters enhance stability. Meets ANSI 14.7, OSHA 1910.29 and Ontario OHS Regulation 851; tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only).
Key Benefits
- High capacity: 400 lb rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tubing with powder coat finish
- Mobility: four 6" phenolic casters with two swivel total-lock brakes
- Access efficiency: 47" cantilever overhang and 19" platform depth
- Safety: 50° step angle, non-slip perforated tread and full handrails
Frequently Asked Questions
What standards does this ladder comply with?
Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851; tested and approved by an Ontario Professional Engineer.
How is the unit shipped and what is the rated capacity?
The ladder ships knocked down for transport; maximum rated load is 400 lbs for one person.
