Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 39 | Depth (in) | 167 | Overall Height (in) | 183 | Weight (lbs) | 550 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 14 | Overhang Clearance (in) | 138 x 35.5 |
| Platform Height (in) | 140 | Platform Size (in) | 28 x 57 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 238 x 39 x 79 |
Specifications

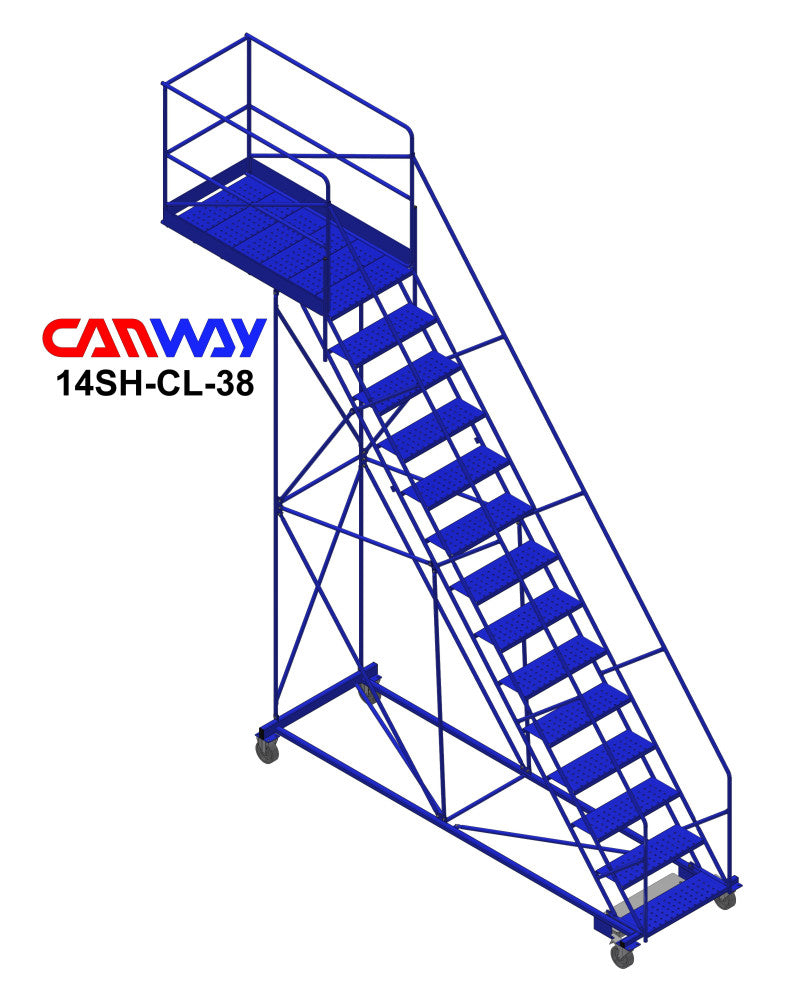

x14 Step 50° Cantilever Mobile Ladder Stand, 38" overhang
The Canway Equipment 14 Step 50° Cantilever Mobile Ladder Stand provides cantilever access to hard-to-reach areas with a 50° safety angle that allows the user to face forward while descending. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit features a 19" platform depth plus 38" overhang, non-slip 9-1/2" deep perforated dimpled steps, and four 6" phenolic casters for mobility. The stand ships knocked down and is tested and approved by an Ontario Professional Engineer; it complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 safety standards.
Technical Specifications
- Width (in): 39
- Depth (in): 167
- Overall Height (in): 183
- Weight (lbs): 550
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 14
- Overhang Clearance (in): 138 x 35.5
- Platform Height (in): 140
- Platform Size (in): 28 x 57
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 238 x 39 x 79
Common Applications
- Warehouse picking and order fulfillment
- Distribution center access and inventory tasks
- Industrial production line maintenance and machine access
- Facility maintenance and overhead servicing
Safety and Stability
Designed for one-person use with a maximum rated load of 400 lbs, the cantilever configuration and 50° step angle improve user stability and forward-facing descent. Four 6" phenolic casters (two swivel with total lock brake and two rigid) provide controlled mobility and secure positioning. Unit complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851.
Key Benefits
- High capacity: 400 lb rated load for one person
- Durable construction: 1" x 16 ga. round tube steel and powder coat finish
- Enhanced mobility: four 6" phenolic casters with two swivel total-lock brakes
- Improved access: cantilever design and 38" overhang for hard-to-reach areas
- Slip-resistant steps: 9-1/2" deep perforated dimpled tread pattern
Frequently Asked Questions
What standards does this ladder comply with?
The ladder complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act, Regulation 851 requirements; it is tested and approved by an Ontario Professional Engineer.
How is the product shipped and installed?
The unit ships knocked down; assembly instructions, user guide and schematic drawings with dimensions are available on the vendor website and from Material Handling Canada.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada through materialhandlingcanada.com for pricing, lead times and shipping details. Our team can supply CAD drawings, certification statements and assembly documentation to support procurement and compliance.
