Description
xMobile Ladder Stand with Front Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 93 | Overall Height (in) | 168 | Weight (lbs) | 265 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 14 | Platform Height (in) | 126 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 187 x 38 x 39 |
Specifications

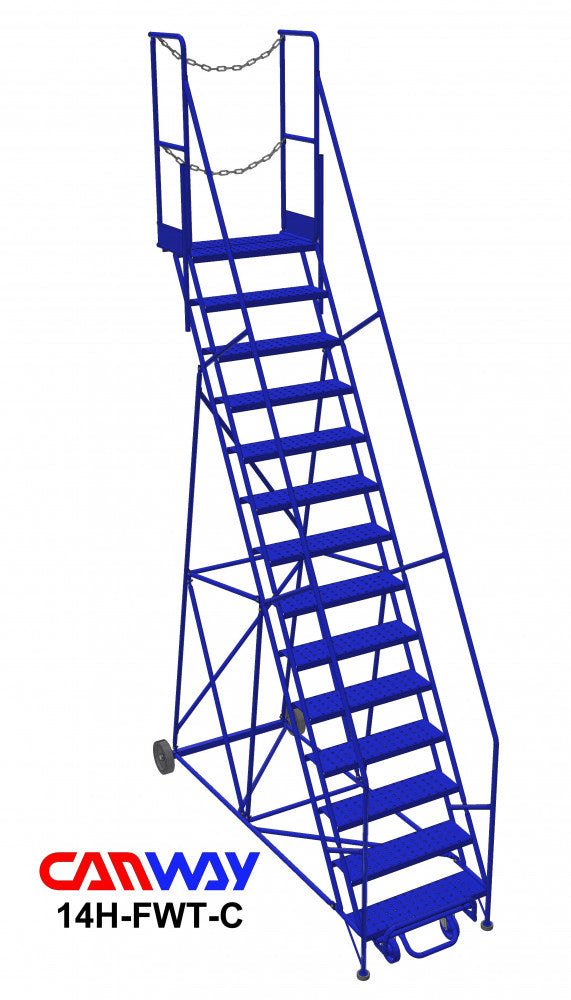

x14 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through
Mobile ladder stand with front walk through and non-slip diamond channel grating for safe access to platforms and raised surfaces. Constructed from 1" x 16 ga. round tube with a durable blue powder coat finish. Includes snap chain, positive floor locking trip step mechanism, and ships fully assembled (4H-5H) or knocked down (6H-20H). Maximum rated load 400 lb (one person only). Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width: 38 in
- Depth: 93 in
- Overall Height: 168 in
- Weight: 265 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat (Blue)
- Wheel Size: 8 in (Polyolefin)
- Caster Size: 5 in (Rubber Swivel)
- # of Steps (incl. platform): 14
- Platform Height: 126 in
- Platform Size: 28 x 15 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Platform Depth: 15 in
- Step Depth: 7-1/2 in (non-slip diamond channel grating)
- Shipping Size: 187 x 38 x 39 in
Common Applications
- Warehouse order picking and stock access
- Distribution center platform access
- Industrial production lines and mezzanine access
- Facility maintenance and building services
- Safely reaching raised storage and equipment
Safety and Stability
Designed for one-person use with a 400 lb rated load, positive floor locking trip step and non-slip diamond channel treads. Meets ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 for mobile ladder safety; engineering approval provided.
Key Benefits
- High load capacity: 400 lb rating for single-user operations
- Durable construction: 1" x 16 ga. steel tube and powder coat finish
- Secure footing: diamond channel grating for non-slip steps
- Mobility: polyolefin wheels and swivel rubber casters for positioning
- Compliance: engineered and tested to applicable safety standards
Frequently Asked Questions
What is the maximum load and intended user count?
Maximum rated load is 400 lbs and the ladder is rated for one person only.
Does this ladder meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851, and is tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request a quote for the Canway 14 Step 60° Mobile Ladder Stand, contact Material Handling Canada via materialhandlingcanada.com. Our team can provide availability, shipping options and assistance with specifications for your site.
