Description
xMobile Ladder Stand with Front Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 89 | Overall Height (in) | 168 | Weight (lbs) | 265 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 14 | Platform Height (in) | 126 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 187 x 38 x 39 |
Specifications

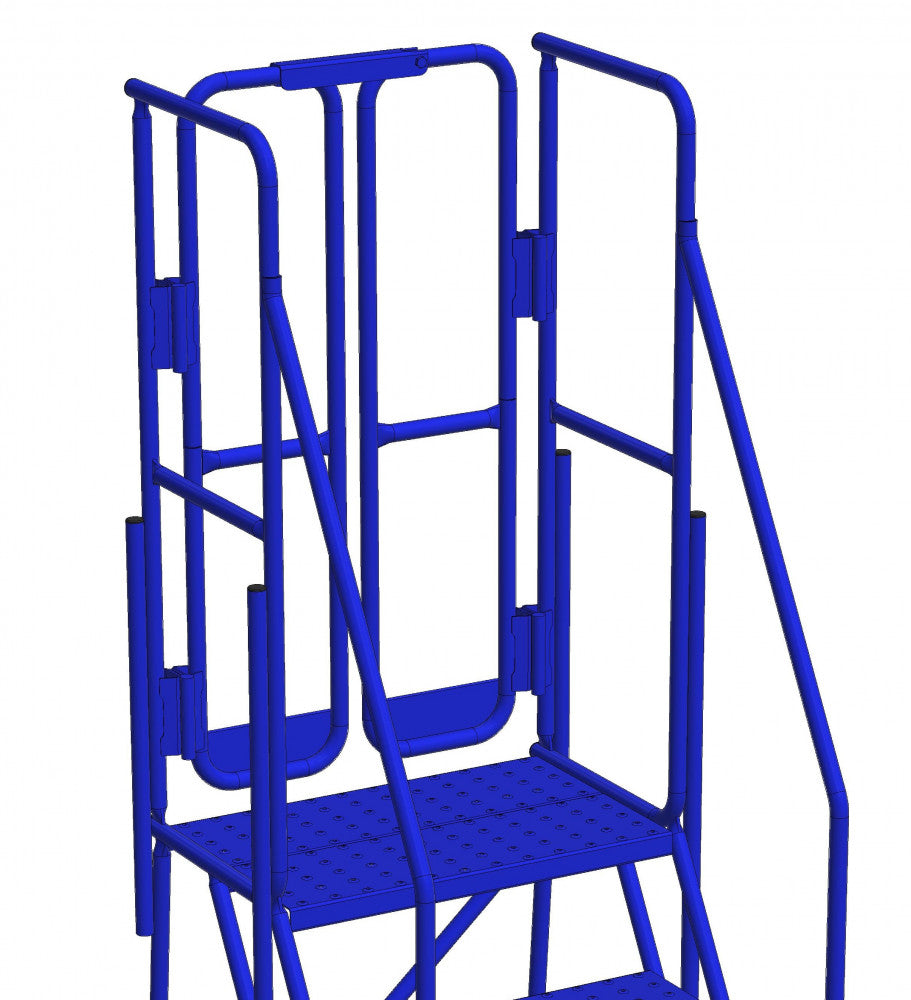

x14 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through, Double Gate
Mobile Ladder Stand with front walk through and spring loaded double gate with latch. Constructed of 1" x 16 ga. round tube steel with durable blue powder coat finish and 15" platform depth. Steps are 7-1/2" deep with non-slip diamond channel grating tread, positive floor locking trip step mechanism, ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851. Maximum rated load 400 lbs (one person only). Tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width (in): 38
- Depth (in): 89
- Overall Height (in): 168
- Weight (lbs): 265
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 14
- Platform Height (in): 126
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 187 x 38 x 39
Common Applications
- Warehouse order picking and racking access
- Distribution center stock handling
- Industrial production floor access and maintenance
- Facility servicing and overhead equipment access
- Maintenance teams requiring mobile, safe elevated work platforms
Safety and Stability
Designed and tested to meet ANSI 14.7 and OSHA 1910.29 with a positive floor locking trip step, spring loaded double gate and non-slip diamond channel treads to ensure stability and safe single-person use at a 400 lb rated capacity.
Key Benefits
- Capacity: Rated 400 lbs for single-person operations
- Durability: 1" x 16 ga. steel construction with powder coat finish
- Mobility: Polyolefin wheels and rubber swivel casters for easy repositioning
- Efficiency: 15" deep platform and 14 steps for practical access to elevated areas
- Safety: Non-slip diamond channel treads and positive locking mechanism
Frequently Asked Questions
What is the maximum load capacity?
The ladder stand is rated for a maximum load of 400 lbs and intended for one person only.
Does the unit comply with safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851 and is tested by an Ontario Professional Engineer.
Ordering and Shipping
To buy or request a quote, contact Material Handling Canada through materialhandlingcanada.com. Our team will assist with order details, shipping options and lead times for this Canway Equipment model.
