Description
xMobile Ladder Stand with Diamond Channel Grating
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 93 | Overall Height (in) | 168 | Weight (lbs) | 257 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 14 | Platform Height (in) | 126 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 187 x 38 x 39 |
Specifications

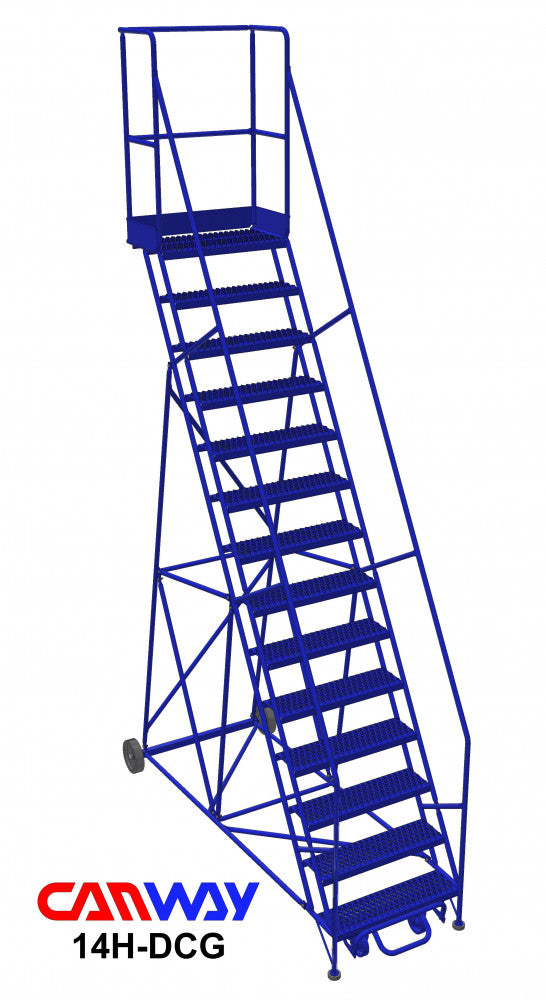

x14 Step 60° Mobile Ladder Stand with Diamond Channel Grating
Canway Equipment's 14 Step 60° Mobile Ladder Stand features 1" x 16 ga. round tube steel construction, 15" platform depth and 7-1/2" non-slip diamond channel grating treads. The unit includes a positive floor locking trip step mechanism, a durable blue powder coat finish and a maximum rated load of 400 lb (one person only). The ladder ships knocked down in 6H-20H and is tested and approved by an Ontario Professional Engineer for use in Ontario, Canada and the United States. It complies with ANSI 14.7, OSHA 1910.29 and applicable provisions of Ontario Regulation 851.
Technical Specifications
- Width (in): 38
- Depth (in): 93
- Overall Height (in): 168
- Weight (lbs): 257
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 14
- Platform Height (in): 126
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 187 x 38 x 39
Common Applications
- Warehouse picking and inventory access
- Distribution center order fulfillment
- Industrial plant access and staging
- Facility maintenance and servicing
- Shipping and receiving areas
Safety and Stability
The ladder stand provides stable 60° step access with non-slip diamond channel grating and a positive floor locking trip step mechanism. It is ANSI 14.7 and OSHA 1910.29 compliant and meets applicable Ontario Regulation 851 requirements; rated for a maximum single-person load of 400 lb and professionally approved by an Ontario P.Eng.
Key Benefits
- 400 lb capacity for single-user operations
- Durable steel construction with powder coat finish for long service life
- Non-slip diamond channel treads for enhanced foot traction
- Mobile design with polyolefin wheels and rubber swivel casters for easy positioning
- Ships knocked down to reduce freight dimensions and handling
- Meets recognized safety standards for regulatory compliance
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lb and the ladder is intended for one person only.
Does this ladder meet regulatory safety standards?
Yes. The unit complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To order or request a quote, contact Material Handling Canada through materialhandlingcanada.com for pricing, availability and shipping options. Our team can assist with lead times, shipping dimensions and product configuration for your site requirements.
