Description

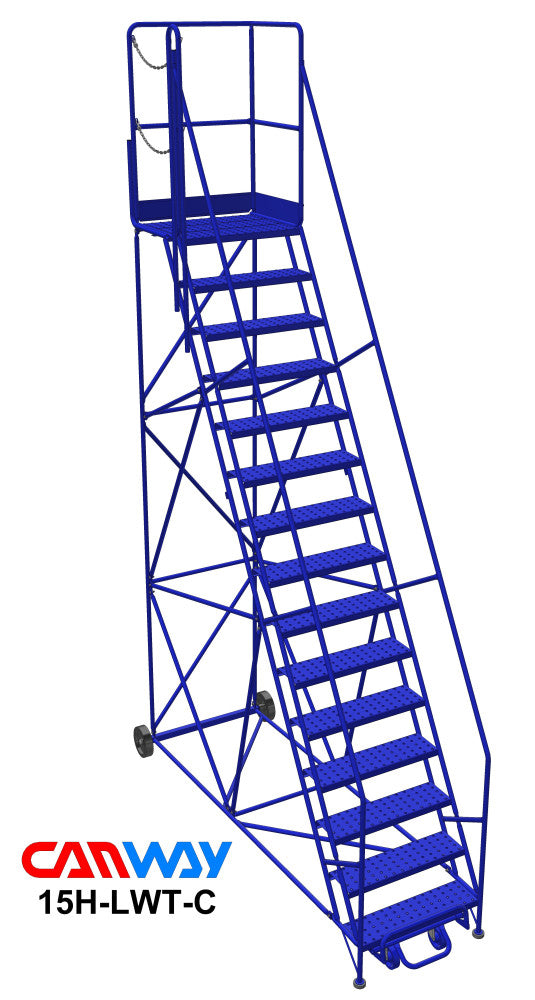

xMobile Ladder Stand with Left Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 102 | Overall Height (in) | 177 | Weight (lbs) | 275 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 15 | Platform Height (in) | 135 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 38 x 206 x 55 |
Specifications
x15 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through
Mobile Ladder Stand with Left Walk Through and diamond channel grating for non-slip steps. Constructed of 1" x 16 ga. round tube with a durable blue powder coat finish. Includes snap chain, positive floor locking trip step mechanism and ships fully assembled for smaller sizes; larger units ship knocked down. Maximum rated load 400 lb (one person only). Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless options.
Technical Specifications
- Width: 38 in
- Depth: 102 in
- Overall Height: 177 in
- Weight: 275 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 15
- Platform Height: 135 in
- Platform Size: 28 x 22.5 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Shipping Size: 38 x 206 x 55 in
Common Applications
- Warehouse stocking and mezzanine access
- Distribution centre order picking and staging
- Industrial assembly and production platforms
- Facility maintenance and equipment servicing
- Any raised-surface access requiring mobile, secure egress
Safety and Stability
Designed to meet ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 requirements. Features positive floor locking trip step mechanism, diamond channel grating treads and a 400 lb rated load for single-person use to ensure stability and slip resistance.
Key Benefits
- 400 lb capacity for single-person tasks
- Durable steel construction with powder coat finish for longevity
- Non-slip diamond channel grating for improved traction
- Mobile design with polyolefin wheels and rubber swivel casters for maneuverability
- Positive locking mechanism enhances on-platform safety
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person.
Does it meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and Ontario OHS Regulation 851 and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or arrange shipping, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team to order this best-selling, top-of-the-line ladder stand from Canway Equipment and discuss delivery, assembly and site requirements.
