Description
xMobile Ladder Stand with Right Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 102 | Overall Height (in) | 177 | Weight (lbs) | 275 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 15 | Platform Height (in) | 135 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 38 x 206 x 55 |
Specifications

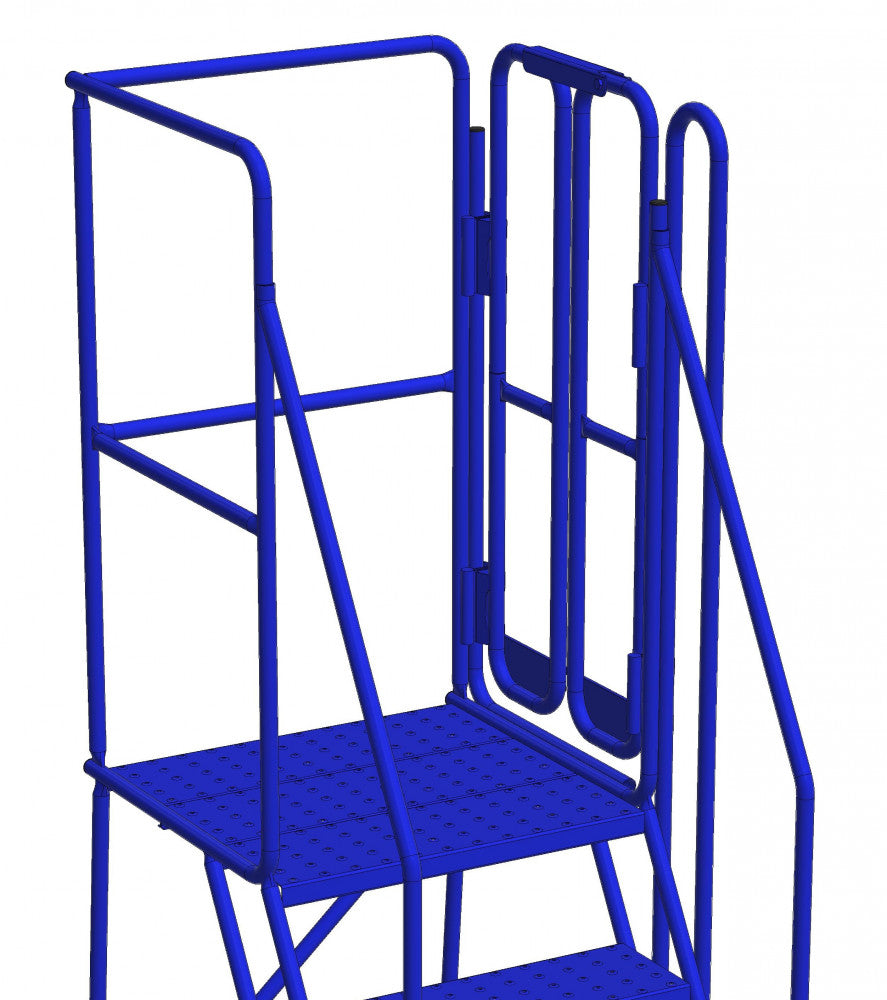

x15 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through, Double Gate
Mobile Ladder Stand with Right Walk Through, Double Gate and diamond channel grating allows easy access to platforms and raised surfaces. Features a spring-loaded double gate with latch, 1" x 16 ga. round tube construction, 22.5" platform depth and 7-1/2" non-slip diamond channel grating treads. Includes positive floor locking trip step mechanism, ships knocked down, and has a durable blue powder coat finish. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 standards. Tested and approved by an Ontario Professional Engineer for steel and stainless steel. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width (in): 38
- Depth (in): 102
- Overall Height (in): 177
- Weight (lbs): 275
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 15
- Platform Height (in): 135
- Platform Size (in): 28 x 22.5
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 38 x 206 x 55
Common Applications
- Warehouse inventory access and mezzanine work
- Distribution center order picking and stock replenishment
- Industrial assembly and maintenance platforms
- Facility servicing, equipment inspection and repairs
- General maintenance and asset access in manufacturing plants
Safety and Stability
Designed to meet ANSI 14.7 and OSHA 1910.29 requirements with a positive floor locking trip step mechanism, spring-loaded double gate with latch, and non-slip diamond channel grating treads to ensure stability and user safety for a single-person 400 lb rated load.
Key Benefits
- 400 lb capacity for single-person tasks
- Durable 1" x 16 ga. steel construction with powder coat finish for corrosion resistance
- Diamond channel grating treads and handrails for slip resistance and secure access
- Mobile design with polyolefin wheels and rubber swivel casters for easy repositioning
- Ships knocked down for lower transport volume and simplified site assembly
Frequently Asked Questions
What standards does this ladder comply with?
It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements and is tested and approved by an Ontario Professional Engineer.
How is the unit shipped and assembled?
The ladder stand ships knocked down to reduce shipping size; on-site assembly is required following supplied instructions.
Ordering and Shipping
To purchase or obtain a quote for this Canway Equipment, best-selling, top-of-the-line mobile ladder stand, contact Material Handling Canada. Visit materialhandlingcanada.com to order, request shipping details, or arrange supply and technical assistance.
