Description

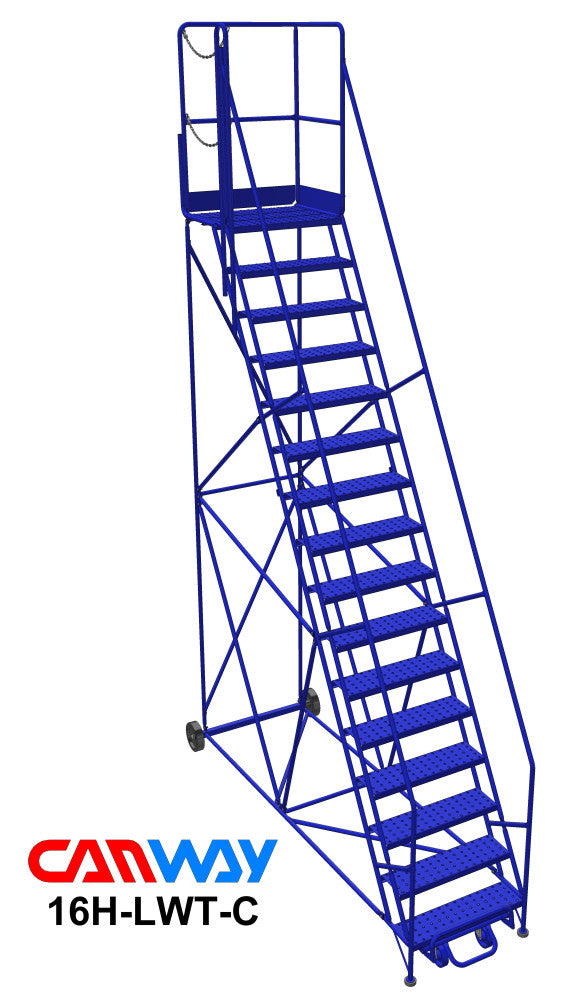

xMobile Ladder Stand with Left Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 108 | Overall Height (in) | 186 | Weight (lbs) | 285 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 16 | Platform Height (in) | 144 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 220 x 38 x 55 |
Specifications
x16 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through
Mobile ladder stand with left walk through and non-slip diamond channel grating treads designed for safe access to platforms and raised surfaces. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish. Features a 22.5" platform depth, 7-1/2" deep diamond channel grating steps, a positive floor locking trip step mechanism, snap chain, and ships knocked down for efficient delivery. Complies with ANSI 14.7 and OSHA 1910.29 and applicable Ontario safety regulations; tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width: 38 in
- Depth: 108 in
- Overall Height: 186 in
- Weight: 285 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- Number of Steps (incl. Platform): 16
- Platform Height: 144 in
- Platform Size: 28 x 22.5 in
- Platform Depth: 22.5 in
- Step Depth: 7-1/2 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Shipping Size: 220 x 38 x 55 in
Common Applications
- Warehouse inventory access and mezzanine entry
- Distribution center picking and staging
- Industrial production floor access and maintenance
- Facility inspection and overhead equipment servicing
- General maintenance and repair tasks requiring elevated access
Safety and Stability
The ladder stand meets ANSI 14.7 and OSHA 1910.29 requirements and complies with Ontario Regulation 851. It includes a positive floor locking trip step mechanism, snap chain for platform security, engineered steel construction and was reviewed by a licensed Ontario Professional Engineer to ensure structural integrity and safe single-user operation at a 400 lb maximum load.
Key Benefits
- Capacity: 400 lb rated for single-user tasks
- Durability: 1" x 16 ga. steel construction with powder coat finish
- Mobility: polyolefin wheels and swivel rubber casters for repositioning
- Efficiency: ships knocked down for easier transport and storage
- Safety: non-slip diamond channel grating treads and positive locking mechanism
Frequently Asked Questions
What is the rated load and intended number of users?
Maximum rated load is 400 lbs and the stand is intended for one person only.
Does the ladder comply with industry safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety regulations, and has been tested and approved by an Ontario Professional Engineer.
