Description

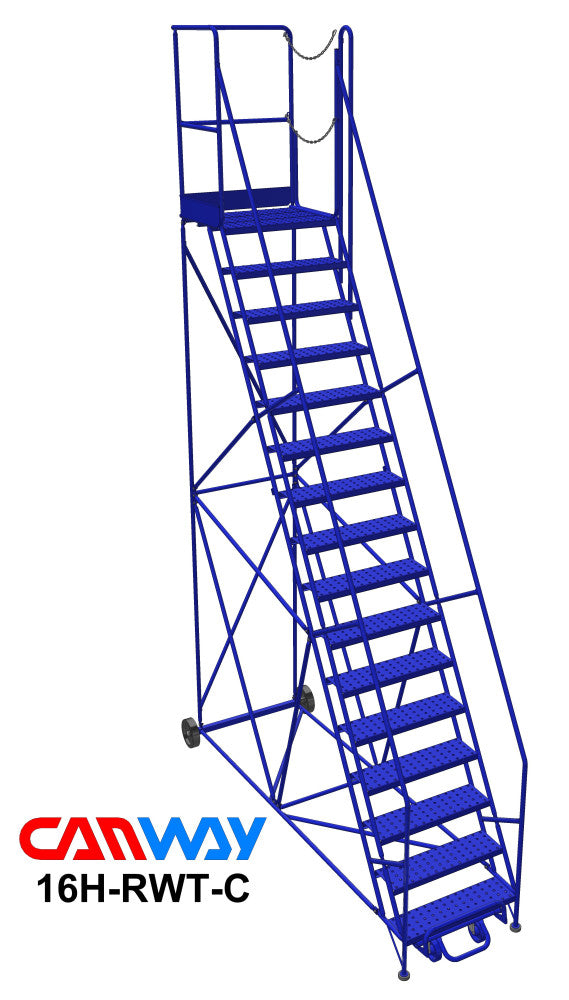

xMobile Ladder Stand with Right Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 108 | Overall Height (in) | 186 | Weight (lbs) | 285 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 16 | Platform Height (in) | 144 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 38 x 220 x 55 |
Specifications
x16 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through
Canway Equipment's 16 Step 60° Mobile Ladder Stand features a right walk-through configuration with non-slip diamond channel grating treads and a 22.5" platform depth. Constructed from 1" x 16 ga. round tubing with a durable blue powder coat finish, the unit ships fully assembled for sizes 4H-5H and knocked down for 6H-20H. Includes snap chain, positive floor locking trip step mechanism, and is tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only). Complies with ANSI 14.7, OSHA 1910.29 and Ontario OHS Act Regulation 851.
Technical Specifications
- Width: 38 in
- Depth: 108 in
- Overall Height: 186 in
- Weight: 285 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat (Blue)
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 16
- Platform Height: 144 in
- Platform Size: 28 x 22.5 in
- Platform Depth: 22.5 in
- Step Width: 28 in
- Step Depth: 7-1/2 in (diamond channel grating tread)
- Step Angle: 60°
- Handrail Height: 42 in
- Shipping Size: 38 x 220 x 55 in
Common Applications
- Warehouse picking and inventory access
- Distribution center order fulfillment
- Industrial machinery and mezzanine access
- Facility maintenance and inspection
- Light manufacturing and assembly platforms
Safety and Stability
The ladder stand incorporates a positive floor locking trip step mechanism, non-slip diamond channel grating treads, and tested casters to provide stable, mobile access. It meets ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 requirements and has been engineered and approved by an Ontario Professional Engineer.
Key Benefits
- 400 lb rated capacity for one-person use
- Durable steel construction and powder coat finish for long service life
- Mobile design with polyolefin wheels and rubber swivel casters for easy positioning
- Non-slip diamond channel grating for improved traction and safety
- Right walk-through configuration for efficient platform access and workflow
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs and intended for one person only.
Does the unit comply with safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and Ontario OHS Act Regulation 851 and is tested and approved by an Ontario Professional Engineer.
