Description

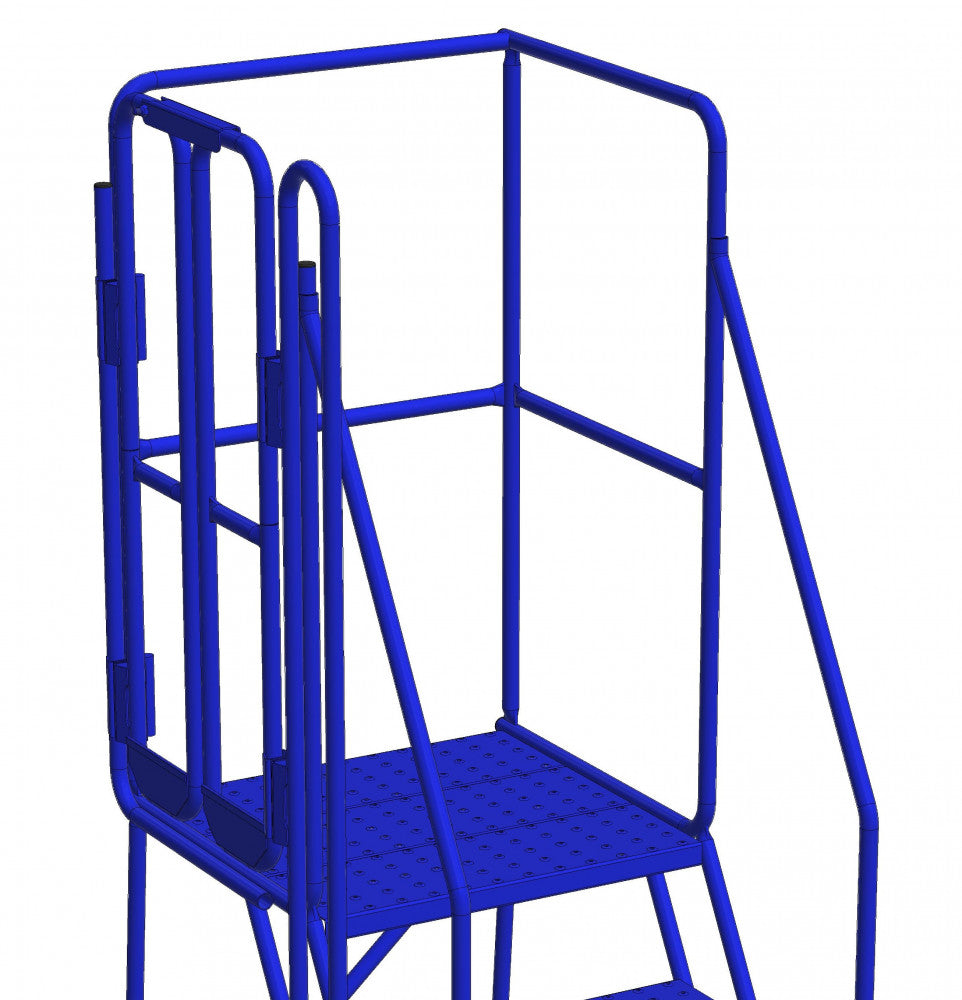

xMobile Ladder Stand with Left Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 114 | Overall Height (in) | 195 | Weight (lbs) | 330 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 17 | Platform Height (in) | 153 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 229 x 46 x 55 |
Specifications
x17 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through, Double Gate
Mobile ladder stand with left walk through and spring-loaded double gate with latch. Constructed of 1" x 16 ga. round tube steel with durable blue powder coat finish and non-slip diamond channel grating treads. Features 22.5" platform depth, 7-1/2" deep steps, positive floor locking trip step mechanism, ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851; tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width: 46 in
- Depth: 114 in
- Overall Height: 195 in
- Weight: 330 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size: 8 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 17
- Platform Height: 153 in
- Platform Size: 28 x 22.5 in
- Step Angle: 60°
- Step Width: 28 in
- Handrail Height: 42 in
- Shipping Size: 229 x 46 x 55 in
Common Applications
- Warehouse access to elevated racks and mezzanines
- Distribution centers for inventory picking and staging
- Industrial plants for equipment servicing and inspection
- Facility maintenance for overhead work and repairs
- Manufacturing lines requiring safe, mobile access
Safety and Stability
Designed to meet ANSI 14.7 and OSHA 1910.29 standards with a positive floor locking trip step mechanism, spring-loaded double gate with latch, and tested engineering approval to ensure stability and single-user 400 lb rated capacity.
Key Benefits
- High capacity: 400 lb rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish
- Safe, non-slip access: diamond channel grating treads and positive lock
- Mobility: polyolefin wheels and rubber swivel casters for transport
- Efficient platform: 22.5" depth and 28" step width for secure footing
Frequently Asked Questions
What is the maximum load capacity?
The ladder stand is rated for a maximum load of 400 lbs and intended for one person only.
Does it meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements and has been tested and approved by an Ontario Professional Engineer.
