Description
xMobile Ladder Stand with Front Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 111 | Overall Height (in) | 204 | Weight (lbs) | 340 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 18 | Platform Height (in) | 162 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 229 x 46 x 39 |
Specifications

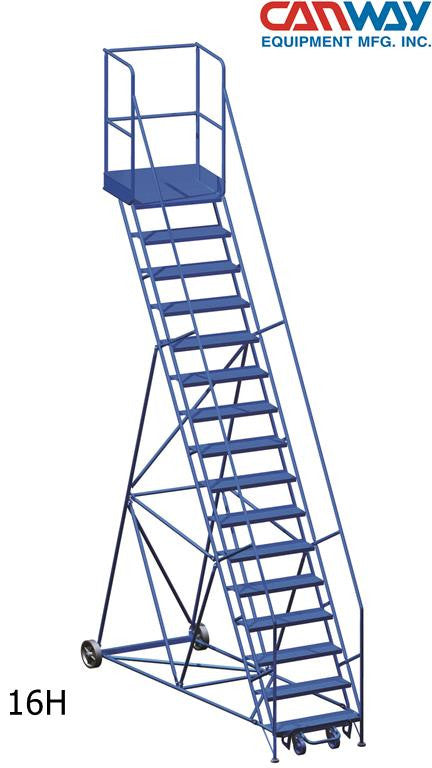

x18 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through
Mobile Ladder Stand with front walk-through access and non-slip diamond channel grating treads. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish. Features a 15" platform depth, 7-1/2" deep steps, positive floor locking trip step mechanism, included snap chain, and a maximum rated load of 400 lb (one person). Complies with ANSI 14.7, OSHA 1910.29, and applicable Ontario Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel models.
Technical Specifications
- Width (in): 46
- Depth (in): 111
- Overall Height (in): 204
- Weight (lbs): 340
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 18
- Platform Height (in): 162
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 229 x 46 x 39
Common Applications
- Warehouse order picking and inventory access
- Distribution centre platform access and stock replenishment
- Industrial production lines and machine access
- Facility maintenance and equipment servicing
- Safety access for inspections and overhead storage
Safety and Stability
Designed to meet ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 safety requirements. Positive floor locking trip step and non-slip diamond channel grating provide stability and secure footing for a single user up to the 400 lb rated capacity.
Key Benefits
- High capacity: 400 lb rating for single-person use
- Durable construction: 1" x 16 ga. round tube steel with powder coat finish
- Safe, non-slip treads: diamond channel grating on 7-1/2" deep steps
- Mobile and stable: polyolefin wheels with rubber swivel casters and locking mechanism
- Efficient access: 15" platform depth and front walk-through design
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person.
Does the unit ship assembled?
Units 4H–5H ship fully assembled; units 6H–20H ship knocked down.
