Description

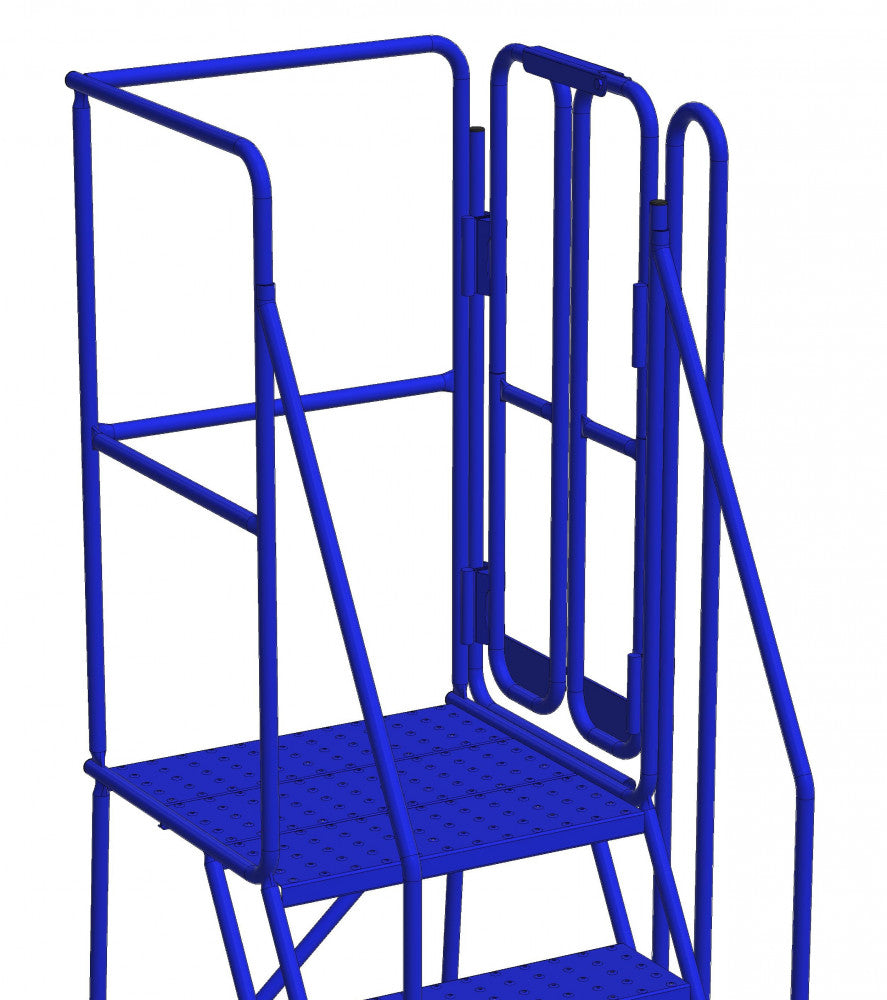

xMobile Ladder Stand with Right Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 119 | Overall Height (in) | 204 | Weight (lbs) | 340 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 18 | Platform Height (in) | 162 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 239 x 46 x 55 |
Specifications
x18 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through, Double Gate
Mobile Ladder Stand with Right Walk Through, Double Gate, Diamond Channel Grating. Allows for easy access to platforms and other raised surfaces. Spring loaded double gate with latch. 1" x 16 ga. round tube construction. 22.5" platform depth. Steps are 7-1/2" deep, non-slip diamond channel grating tread. Positive floor locking trip step mechanism. Ships knocked down. Durable blue powder coat finish. Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29. Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851. Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width (in): 46
- Depth (in): 119
- Overall Height (in): 204
- Weight (lbs): 340
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 18
- Platform Height (in): 162
- Platform Size (in): 28 x 22.5
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 239 x 46 x 55
Common Applications
- Warehouse picking and inventory access
- Distribution center order fulfillment
- Industrial production line access and servicing
- Facility maintenance and overhead equipment servicing
- Stockroom and loading dock access
Safety and Stability
The ladder stand features non-slip diamond channel grating treads, a spring loaded double gate with latch, and a positive floor locking trip step mechanism. Designed and tested to meet ANSI 14.7, OSHA 1910.29 and applicable Ontario safety regulations for stable single-person use at a 400 lb capacity.
Key Benefits
- 400 lb rated capacity for single-user tasks
- Durable steel construction with powder coat finish for long service life
- Diamond channel grating provides non-slip step surfaces
- Mobile design with polyolefin wheels and rubber swivel casters for easy positioning
- Right walk-through configuration and double gate for safe, efficient access
Frequently Asked Questions
Q: What is the maximum load capacity?
A: The stand is rated for a maximum load of 400 lbs and intended for one person only.
Q: Does it meet safety standards?
A: Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Act Regulation 851; it is also tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To buy or request a quote for the Canway Equipment 18 Step 60° Mobile Ladder Stand, contact Material Handling Canada. Visit materialhandlingcanada.com to order, arrange shipping, or obtain technical and pricing information.
