Description
xMobile Ladder Stand with Front Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 117 | Overall Height (in) | 213 | Weight (lbs) | 360 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 x 2 | Wheel Type | Polyolefin | Caster Size (in) | 5 x 1-1/4 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 19 | Platform Height (in) | 171 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 240 x 46 x 39 |
Specifications

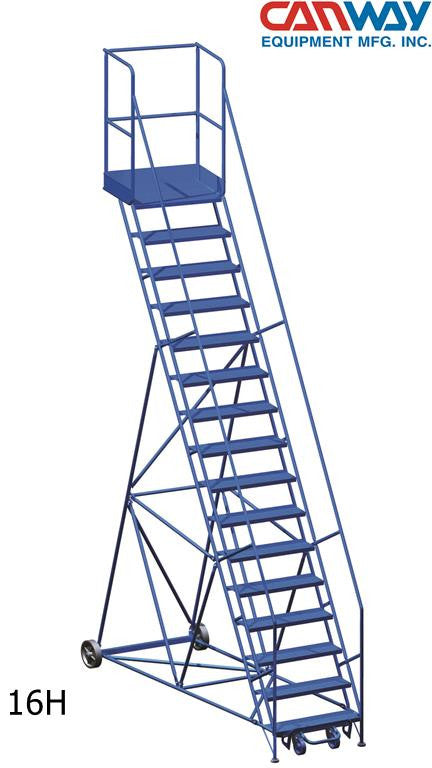

x19 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through
Mobile Ladder Stand with front walk through and non-slip diamond channel grating, designed for safe access to elevated platforms and raised surfaces. Constructed of 1" x 16 ga. round tube steel with a durable blue powder coat finish. Features a 15" platform depth, 7-1/2" deep treads, positive floor locking trip step mechanism, snap chain, and a maximum rated load of 400 lbs (one person only). Complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel variants.
Technical Specifications
- Width (in): 46
- Depth (in): 117
- Overall Height (in): 213
- Weight (lbs): 360
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8 x 2
- Wheel Type: Polyolefin
- Caster Size (in): 5 x 1-1/4
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 19
- Platform Height (in): 171
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 240 x 46 x 39
Common Applications
- Warehouse picking and inventory access
- Distribution center order fulfillment
- Industrial production line access and maintenance
- Facility service and equipment inspection
- Maintenance platforms for HVAC, plumbing, and utilities
Safety and Stability
Designed to meet ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 requirements. Non-slip diamond channel treads, positive floor locking trip step, snap chain and tested engineering approval provide stability and compliance for single-user operation up to 400 lbs.
Key Benefits
- High capacity: 400 lb rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tubing with powder coat finish for long service life
- Safe access: 7-1/2" non-slip diamond channel grating treads and positive locking step
- Mobility: polyolefin wheels and rubber swivel casters for repositioning
- Compliance: engineered and tested to applicable ANSI/OSHA and Ontario standards
Frequently Asked Questions
What is the platform size and height?
Platform size is 28 x 15 in and platform height is 171 in.
How is the unit shipped?
Units with 4H-5H ship fully assembled; 6H-20H ship knocked down as specified by the vendor.
