Description

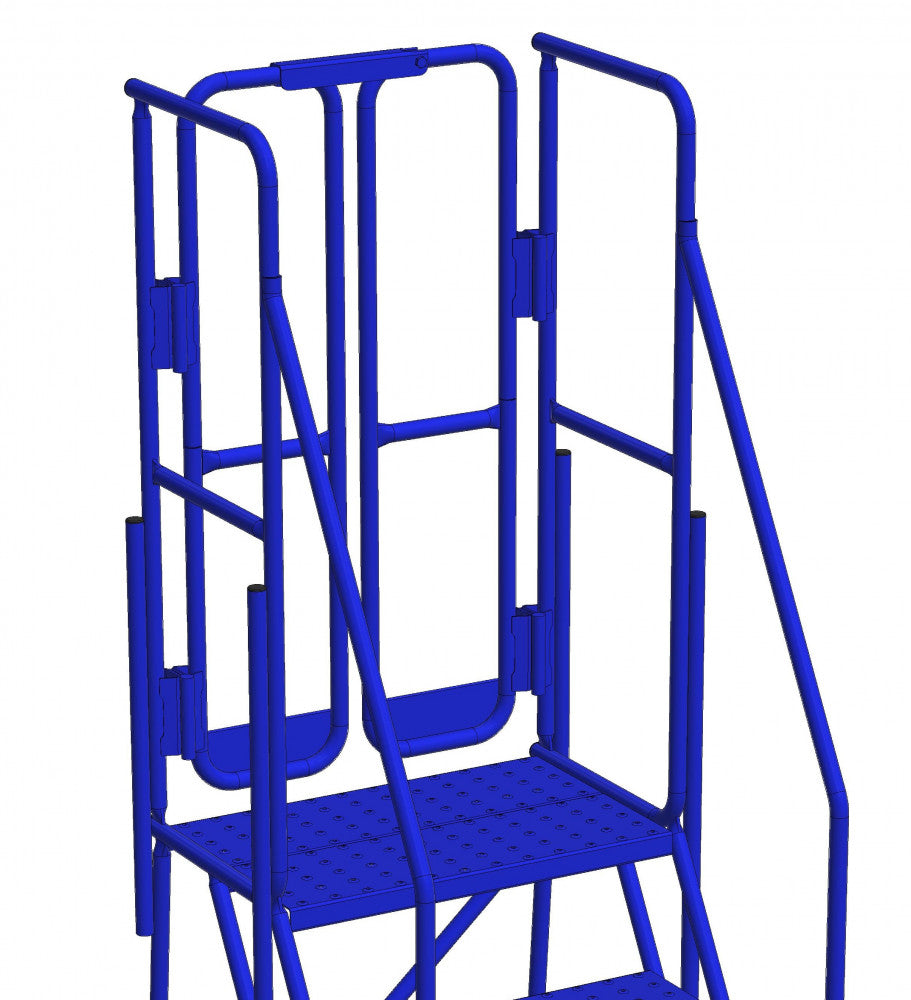

xMobile Ladder Stand with Front Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 122 | Overall Height (in) | 222 | Weight (lbs) | 370 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 x 2 | Wheel Type | Polyolefin | Caster Size (in) | 5 x 1-1/4 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 20 | Platform Height (in) | 180 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 249 x 46 x 39 |
Specifications
x20 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through, Double Gate
Mobile ladder stand with front walk-through and spring-loaded double gate with latch. Constructed of 1" x 16 ga. round tube steel with durable blue powder coat finish and 15" platform depth. Steps feature 7-1/2" deep non-slip diamond channel grating tread, positive floor locking trip step mechanism, and a maximum rated load of 400 lbs (one person only). Ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards; tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width (in): 46
- Depth (in): 122
- Overall Height (in): 222
- Weight (lbs): 370
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8 x 2
- Wheel Type: Polyolefin
- Caster Size (in): 5 x 1-1/4
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 20
- Platform Height (in): 180
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 249 x 46 x 39
Common Applications
- Warehouse picking and inventory access
- Distribution center order staging
- Industrial production lines and machine access
- Facility maintenance and overhead equipment service
Safety and Stability
Designed and tested to comply with ANSI 14.7, OSHA 1910.29, and Ontario Regulation 851. Features non-slip diamond channel treads, positive floor locking trip step mechanism, spring-loaded double gate, and engineered structural tubing for stable single-person use up to 400 lbs.
Key Benefits
- Capacity: Rated 400 lb load for single-user tasks
- Durability: Steel construction with powder coat finish resists wear
- Mobility: Polyolefin wheels and rubber swivel casters enable repositioning
- Efficiency: 15" platform depth and 20-step reach improve access productivity
- Safety: Non-slip treads, handrails and locking mechanisms reduce risk
Frequently Asked Questions
What standards does this ladder meet?
The ladder complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851; it was tested and approved by an Ontario Professional Engineer.
How is the product shipped and assembled?
The unit ships knocked down to reduce shipping size (249 x 46 x 39 in) and requires assembly on site per supplier instructions.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada through materialhandlingcanada.com. Our team can assist with ordering, shipping logistics, and delivery options for this Canway Equipment ladder stand.
