Description

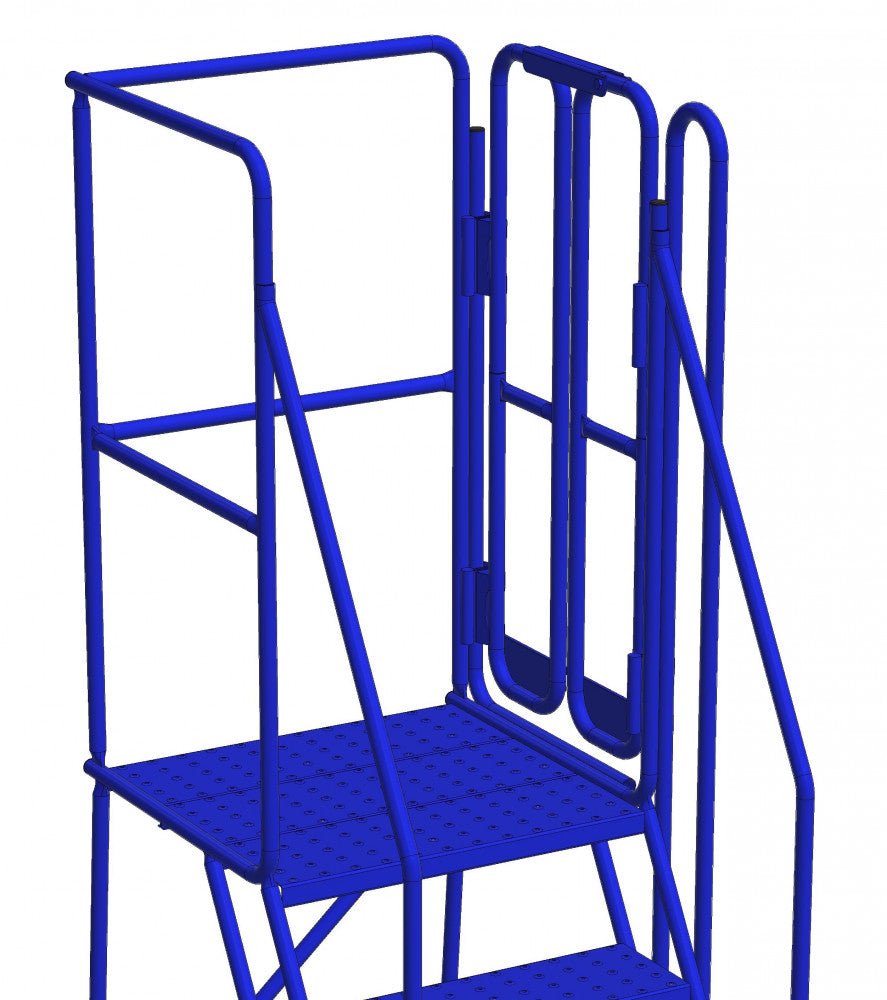

xMobile Ladder Stand with Right Walk Through, Double Gate, Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces
Spring loaded double gate with latch
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 46 | Depth (in) | 130 | Overall Height (in) | 222 | Weight (lbs) | 370 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 20 | Platform Height (in) | 180 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 259 x 46 x 55 |
Specifications
x20 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Right Walk Through, Double Gate
Canway Equipment mobile ladder stand featuring right walk-through access, spring-loaded double gate with latch, and non-slip diamond channel grating treads. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, this unit ships knocked down and is rated for a single-user capacity of 400 lbs. Compliant with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851; engineered and approved by an Ontario Professional Engineer for steel and stainless models.
Technical Specifications
- Width (in): 46
- Depth (in): 130
- Overall Height (in): 222
- Weight (lbs): 370
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 20
- Platform Height (in): 180
- Platform Size (in): 28 x 22.5
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 259 x 46 x 55
Common Applications
- Warehouse picking and inventory access
- Distribution center order staging
- Industrial production line access and tooling maintenance
- Facility maintenance and elevated inspection tasks
Safety and Stability
Features non-slip diamond channel grating treads, positive floor locking trip step mechanism, and spring-loaded double gate with latch to ensure secure access. Designed and tested to meet ANSI and OSHA mobile ladder standards and Ontario regulatory requirements for safe single-person use at a 400 lb capacity.
Key Benefits
- High capacity: 400 lb single-user rating for typical industrial tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish for long service life
- Mobility: polyolefin wheels and rubber swivel casters for controlled movement
- Safety: diamond channel treads, locking trip step, and double-gate access
- Efficiency: 22.5" platform depth and 28" step width for comfortable footing and work access
Frequently Asked Questions
What is the maximum load capacity?
The ladder stand is rated for a maximum load of 400 lbs for one person.
Does this unit meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851 and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or arrange shipment contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team to order this Canway Equipment best-selling, top-of-the-line mobile ladder stand and arrange supply to your site.
