Description

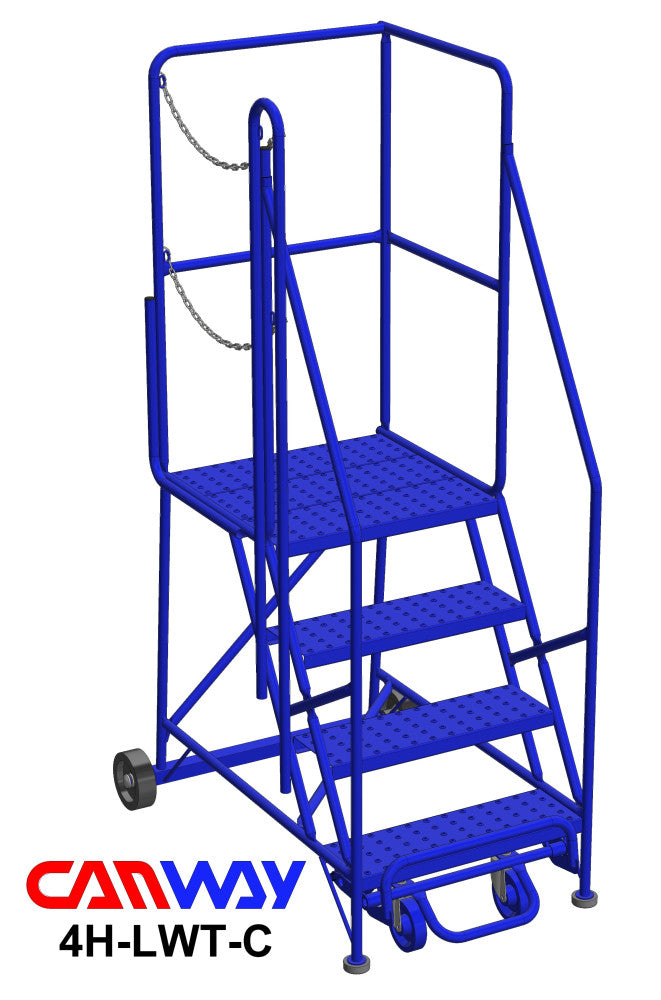

xMobile Ladder Stand with Left Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 34 | Depth (in) | 46 | Overall Height (in) | 78 | Weight (lbs) | 90 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 6 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 4 | Platform Height (in) | 36 | Platform Size (in) | 24 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Shipping Size (in) | 34 x 46 x 78 |
Specifications
x4 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through
Mobile Ladder Stand with Left Walk Through and diamond channel grating allows easy access to platforms and raised surfaces and includes snap chain. Constructed from 1" x 16 ga. round tube with a 22.5" platform depth, 7-1/2" deep non-slip diamond channel grating treads, positive floor locking trip step mechanism, and a durable blue powder coat finish. Tested and approved by an Ontario Professional Engineer and compliant with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851. Maximum rated load: 400 lb (one person only).
Technical Specifications
- Width (in): 34
- Depth (in): 46
- Overall Height (in): 78
- Weight (lbs): 90
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 6
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 4
- Platform Height (in): 36
- Platform Size (in): 24 x 22.5
- Step Angle (°): 60
- Step Width (in): 24
- Handrail (in): 42
- Shipping Size (in): 34 x 46 x 78
Common Applications
- Warehouse stock access and picking
- Distribution centers for order fulfillment
- Industrial maintenance and machine access
- Facility service and inspection tasks
Safety and Stability
Equipped with non-slip diamond channel grating treads, a positive floor locking trip step mechanism, stable 60° step angle and tested compliance with ANSI, OSHA and Ontario safety regulations to ensure single-person use up to the 400 lb rated capacity.
Key Benefits
- 400 lb rated capacity for secure single-person operation
- Durable steel construction with powder coat finish for long service life
- Diamond channel grating treads for slip resistance
- Mobility via polyolefin wheels and rubber swivel casters for efficient repositioning
- Ships assembled or knocked down depending on height to simplify delivery
Frequently Asked Questions
What is the platform size and height?
The platform measures 24 x 22.5 inches and the platform height is 36 inches.
Does this model meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or arrange shipping, contact Material Handling Canada through materialhandlingcanada.com. Our team can provide pricing, lead times, and shipping options for this Canway Equipment model.
