Description

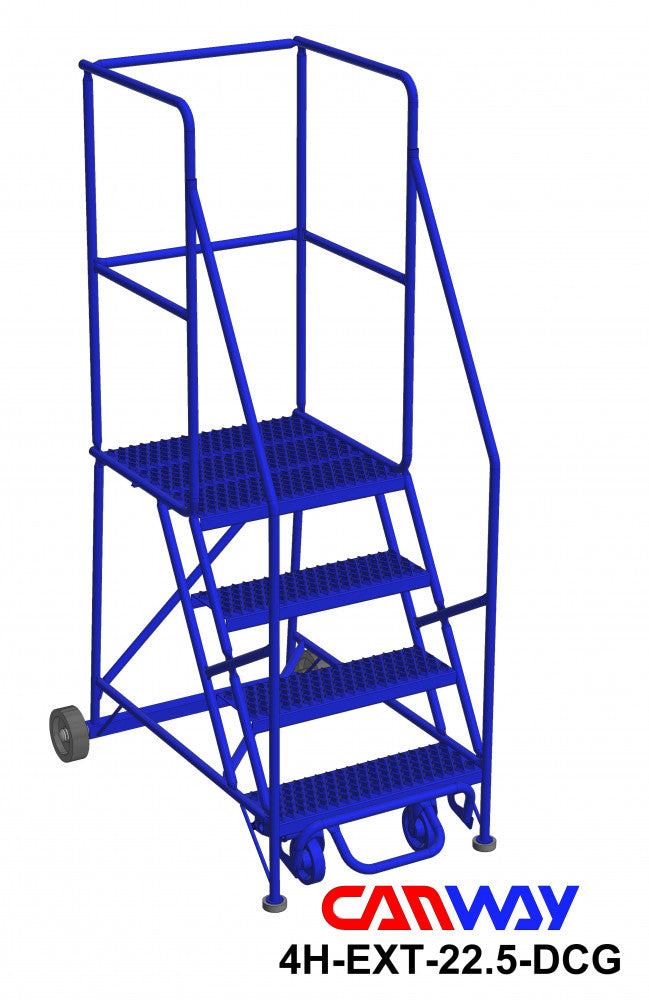

xMobile Ladder Stand with Diamond Channel Grating and Extended Platform
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip, diamond channel grating tread
Positive floor locking trip step mechanism
Ships fully assembled
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 34 | Depth (in) | 47 | Overall Height (in) | 78 | Weight (lbs) | 100 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 6 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 4 | Platform Height (in) | 36 | Platform Size (in) | 24 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Shipping Size (in) | 47 x 34 x 78 |
Specifications

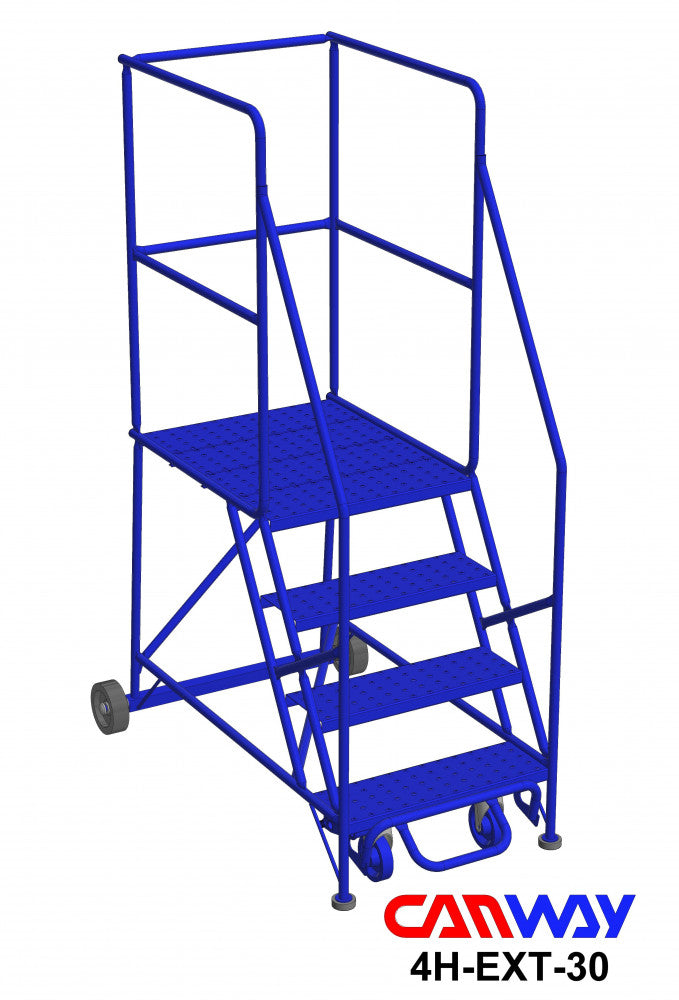

x4 Step 60° Mobile Ladder Stand with Diamond Channel Grating and Extended Platform
Mobile ladder stand with diamond channel grating tread and extended platform designed for industrial access. Constructed from 1" x 16 ga. round tube steel, ships fully assembled with a durable blue powder coat finish. Steps are 7-1/2" deep with 22.5" platform depth and a positive floor locking trip step mechanism. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards; tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width (in): 34
- Depth (in): 47
- Overall Height (in): 78
- Weight (lbs): 100
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 6
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 4
- Platform Height (in): 36
- Platform Size (in): 24 x 22.5
- Step Angle (°): 60
- Step Width (in): 24
- Handrail (in): 42
- Shipping Size (in): 47 x 34 x 78
Common Applications
- Warehouse inventory access and picking
- Distribution center order fulfillment
- Industrial production line access
- Facility maintenance and overhead servicing
Safety and Stability
Design incorporates non-slip diamond channel grating, a positive floor locking trip step mechanism and approved engineering for compliance with ANSI, OSHA and Ontario safety regulations to ensure stable, code-compliant use.
Key Benefits
- 400 lb rated capacity for single-person tasks
- Durable steel construction with powder coat for long service life
- Mobile design with polyolefin wheels and rubber swivel casters for easy repositioning
- Extended 22.5" platform and 7-1/2" non-slip steps for safer work access
- Ships fully assembled to reduce on-site setup time
Frequently Asked Questions
What standards does this ladder comply with?
Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851; tested and approved by an Ontario Professional Engineer.
What is the maximum load and intended use?
Maximum rated load is 400 lbs for one person; intended for industrial access, maintenance and material handling tasks.
