Description
xCrossover Ladder - 60 °
Provides safe walkway over conveyors, machinery, pipes, and other obstacles
1 x 16 ga. round tube construction
Standard non-slip, perforated, raised, dimpled step
60 ° standard angle slope
400 lb. capacity
Ships in two pieces, easily bolts together
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
Product must be skidded for shipping; skid fee will apply
| Width (in) | 29 | Depth (in) | 103 | Overall Height (in) | 87 | Weight (lbs) | 201 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| # of Steps (incl. Platform) | 5 | Platform Height (in) | 45 | Platform Size (in) | 24 x 60 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Clearance (in) | 43-5/8 x 42-1/2 | Shipping Size (in) | 120 x 40 x 62 |
Specifications

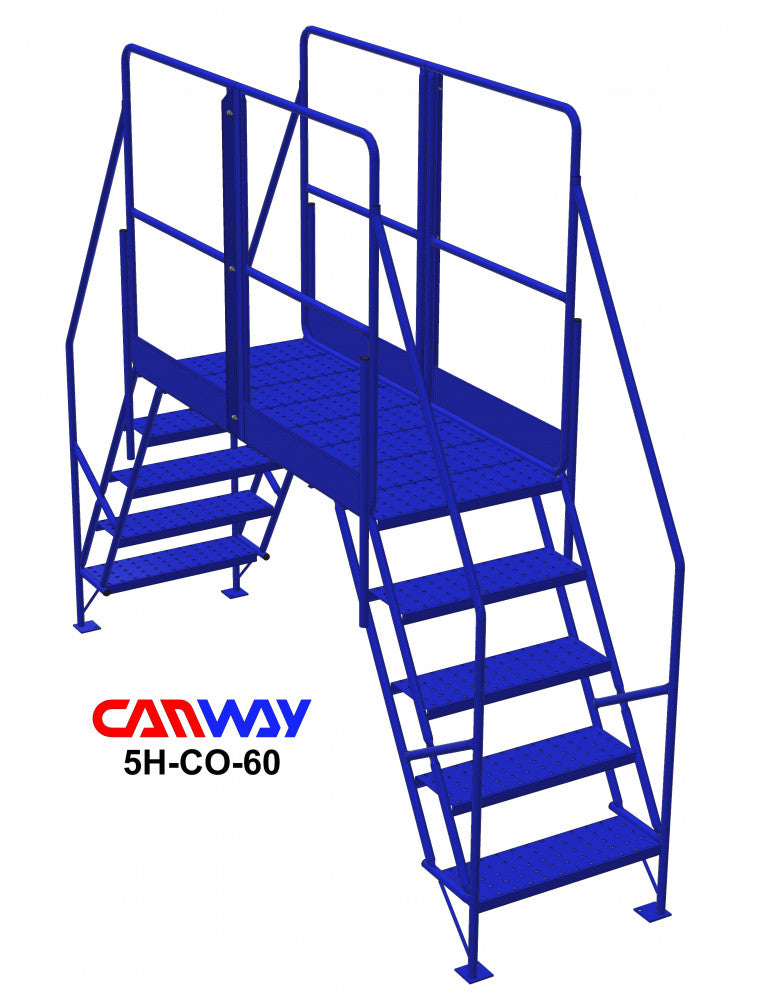

x5 Step 60° Crossover Ladder
The 5 Step 60° Crossover Ladder from Canway Equipment provides a safe walkway over conveyors, machinery, pipes and other obstacles. Constructed from 1 x 16 ga. round steel tube with a durable blue powder coat finish, it features standard non-slip perforated raised dimpled steps, a 24 x 60 inch platform, and a maximum rated load of 400 lb (one person only). Ships in two pieces and easily bolts together. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel variants.
Technical Specifications
- Width (in): 29
- Depth (in): 103
- Overall Height (in): 87
- Weight (lbs): 201
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- # of Steps (incl. Platform): 5
- Platform Height (in): 45
- Platform Size (in): 24 x 60
- Step Angle (°): 60
- Step Width (in): 24
- Handrail (in): 42
- Clearance (in): 43-5/8 x 42-1/2
- Shipping Size (in): 120 x 40 x 62
Common Applications
- Warehouse access over conveyor lines
- Distribution centre maintenance and walkways
- Industrial plants and production facilities
- Facility service access for piping and machinery
- Maintenance and inspection platforms
Safety and Stability
The ladder is built to a 60° slope with non-slip perforated steps and a 42-inch handrail for secure ascent and descent. It meets ANSI 14.7 and OSHA 1910.29 requirements and is compliant with Ontario OHS Regulation 851; engineered and tested by a Professional Engineer covering Ontario, Canada and the United States.
Key Benefits
- 400 lb rated capacity for one-person access
- Durable steel construction with powder coat finish for longevity
- Ships in two pieces for manageable on-site assembly
- Perforated, raised dimpled steps for slip resistance
- Designed to improve operational efficiency and safe access over obstacles
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs (one person only).
Does the ladder comply with safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851, and is tested and approved by an Ontario Professional Engineer.
