Description
xMobile Ladder Stand with Diamond Channel Grating
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
Ships fully assembled
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 34 | Depth (in) | 46 | Overall Height (in) | 87 | Weight (lbs) | 98 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 6 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 5 | Platform Height (in) | 45 | Platform Size (in) | 24 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Shipping Size (in) | 46 x 34 x 87 |
Specifications

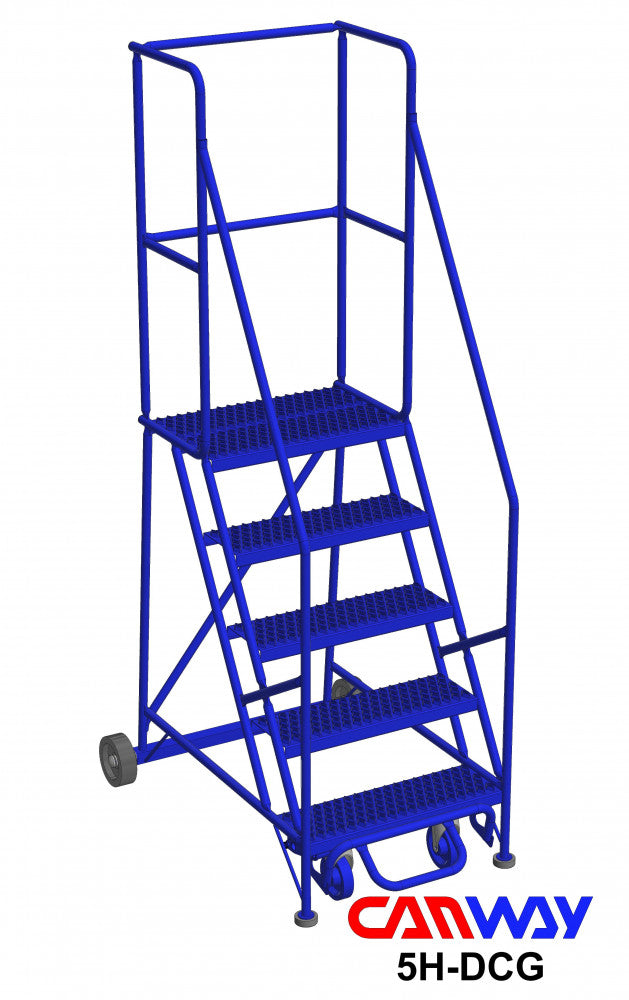

x5 Step 60° Mobile Ladder Stand with Diamond Channel Grating
Canway Equipment's 5 Step 60° Mobile Ladder Stand features 1" x 16 ga. round tube steel construction, non-slip diamond channel grating treads and a 15" platform depth. The unit ships fully assembled with a durable blue powder coat finish and is tested and approved by an Ontario Professional Engineer. Maximum rated load is 400 lb (one person only). Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851 requirements.
Technical Specifications
- Width: 34 in
- Depth: 46 in
- Overall Height: 87 in
- Weight: 98 lbs
- Capacity / Maximum rated load: 400 lbs (one person only)
- Material: Steel
- Finish: Powder Coat (Blue)
- Wheel Size: 6 in
- Wheel Type: Polyolefin
- Caster Size: 5 in
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 5
- Platform Height: 45 in
- Platform Size: 24 x 15 in
- Platform Depth: 15 in
- Step Depth: 7-1/2 in
- Step Width: 24 in
- Step Angle: 60°
- Handrail Height: 42 in
- Shipping Size: 46 x 34 x 87 in
Common Applications
- Warehouse picking and inventory access
- Distribution center order staging
- Industrial production line access
- Facility maintenance and inspection
- Mechanical and electrical servicing in plants
Safety and Stability
The ladder stand uses a positive floor locking trip step mechanism, non-slip diamond channel grating treads, and engineered steel construction to provide stable, compliant access. It meets ANSI 14.7 and OSHA 1910.29 standards and is approved per Ontario safety regulations.
Key Benefits
- 400 lb capacity for single-user tasks
- Durable powder coat steel construction for long service life
- Mobile design with polyolefin wheels and rubber swivel casters for easy repositioning
- Non-slip diamond grating treads for improved worker safety
- Ships fully assembled to reduce on-site setup time
Frequently Asked Questions
What standards does this ladder comply with?
It complies with ANSI 14.7, OSHA 1910.29 and the Ontario Occupational Health and Safety Act Regulation 851; it has been tested and approved by an Ontario Professional Engineer.
How is the ladder delivered and installed?
The unit ships fully assembled in a 46 x 34 x 87 in package and is ready for immediate use upon placement at the worksite.
Ordering and Shipping
To purchase or request a quote for the Canway Equipment 5 Step 60° Mobile Ladder Stand, contact Material Handling Canada for pricing, availability and shipping options. Visit materialhandlingcanada.com to order or request technical assistance.
