Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 40 | Depth (in) | 82 | Overall Height (in) | 103 | Weight (lbs) | 401 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 6 | Overhang Clearance (in) | 58 x 16.5 |
| Platform Height (in) | 60 | Platform Size (in) | 28 x 38 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 116 x 39 x 79 |
Specifications

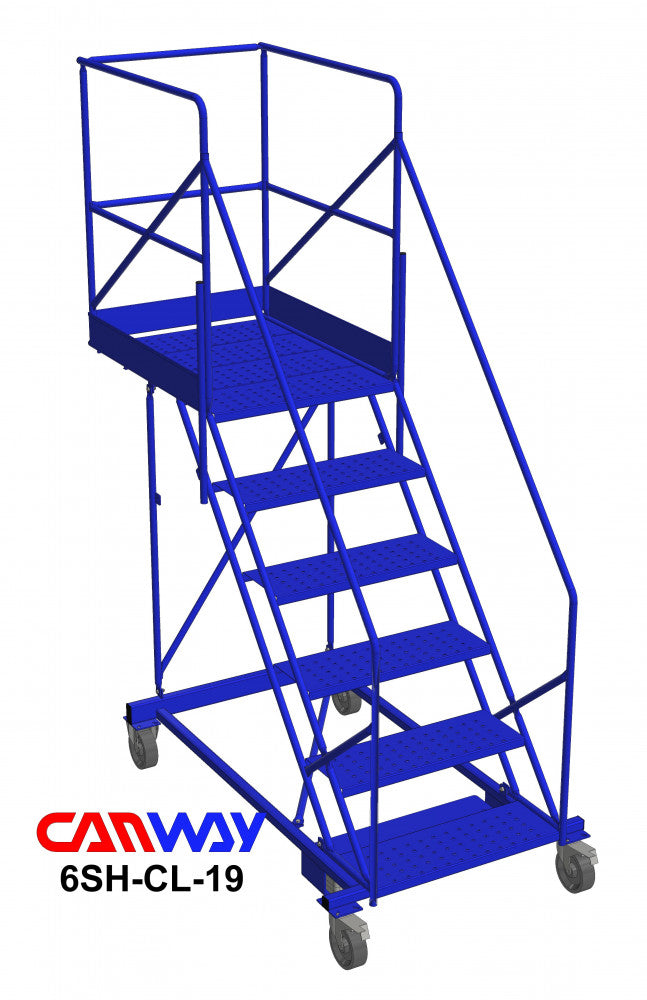

x6 Step 50° Cantilever Mobile Ladder Stand, 19" overhang
Cantilever design provides access to hard-to-reach areas with a 50° safety angle that allows users to face forward while descending. Constructed from 1" x 16 ga. round steel tube with a durable blue powder coat finish. Features a 19" platform depth plus overhang, 9-1/2" deep non-slip perforated steps, four 6" phenolic casters (2 swivel with metal total lock brake and 2 rigid), 400 lb capacity, and ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety regulations; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width: 40 in
- Depth: 82 in
- Overall Height: 103 in
- Weight: 401 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size: 6 x 2 in
- Caster Type: Phenolic
- # of Steps (incl. Platform): 6
- Overhang Clearance: 58 x 16.5 in
- Platform Height: 60 in
- Platform Size: 28 x 38 in
- Step Angle: 50°
- Step Width: 28 in
- Handrail: 42 in
- Shipping Size: 116 x 39 x 79 in
Common Applications
- Warehouse picking and order fulfillment
- Distribution center access and stock replenishment
- Industrial assembly and overhead maintenance
- Facility servicing and inspection tasks
- Maintenance shops and production lines
Safety and Stability
Designed and tested to meet ANSI 14.7 and OSHA 1910.29 standards with a 400 lb maximum rated load for one person. Features non-slip perforated steps, secure handrails and metal total lock brakes on swivel casters for stable positioning.
Key Benefits
- High capacity: 400 lb rated load for single-user tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish
- Improved access: cantilever design and 19" platform depth with overhang
- Safe descent: 50° step angle to face forward while descending
- Mobility: four 6" phenolic casters with locking mechanism
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs and is intended for one person only.
Does the unit meet regulatory standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act requirements; it was tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To buy or request a quote, contact Material Handling Canada. Visit materialhandlingcanada.com for ordering, shipping details, assembly instructions, schematic drawings and Canway certification documents.
