Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 40 | Depth (in) | 101 | Overall Height (in) | 103 | Weight (lbs) | 728 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 6 | Overhang Clearance (in) | 58 x 35.5 |
| Platform Height (in) | 60 | Platform Size (in) | 28 x 57 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 134 x 39 x 79 |
Specifications

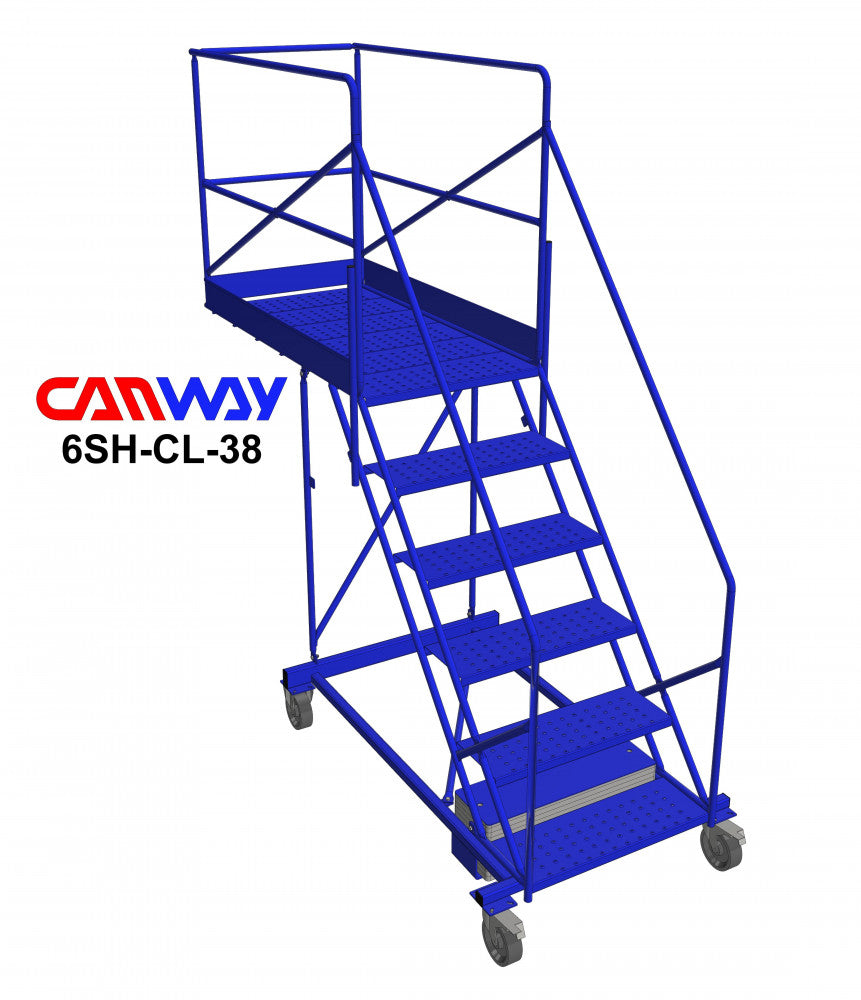

x6 Step 50° Cantilever Mobile Ladder Stand, 38" overhang
Cantilever design provides access to hard-to-reach areas with a 50° safety angle that allows the user to face forward while descending. Constructed from 1" x 16 ga. round tube steel with a 19" platform depth plus overhang and 9-1/2" deep non-slip, raised perforated dimpled tread steps. Four 6" phenolic casters (2 swivel with metal total lock brake and 2 rigid) provide mobility. Durable blue powder coat finish. Maximum rated load: 400 lbs (one person only). Ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width (in): 40
- Depth (in): 101
- Overall Height (in): 103
- Weight (lbs): 728
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 6
- Overhang Clearance (in): 58 x 35.5
- Platform Height (in): 60
- Platform Size (in): 28 x 57
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 134 x 39 x 79
Common Applications
- Warehouse stocking and inventory access
- Distribution center order picking
- Industrial production line access
- Facility maintenance and servicing
- Any application requiring mobile elevated access to hard-to-reach areas
Safety and Stability
Engineered for stability with a cantilever platform, phenolic casters with total lock braking on swivels, non-slip perforated tread steps and compliance to ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 for safe single-person use up to 400 lb.
Key Benefits
- High capacity: 400 lb rating for single-person tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish
- Enhanced mobility: four 6" phenolic casters with locking swivels
- Improved safety: 50° step angle and non-slip perforated tread
- Designed for serviceability: ships knocked down for economical transport
Frequently Asked Questions
What is the platform height and size?
Platform height is 60 in and platform size is 28 x 57 in.
What standards and approvals does this ladder meet?
Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario standards; tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada through materialhandlingcanada.com. Our team can provide ladder assembly instructions, schematics and Canway certification documents and arrange shipping and delivery for B2B orders.
