Description
xSafety Angle Crossover Ladder
Provides safe walkway over conveyors, machinery, pipes, and other obstacles
50 ° safety angle allows user to face forward while descending
1 x 16 ga. round tube construction
Standard non-slip, perforated, raised, dimpled step
400 lb. capacity
Ships in two pieces, easily bolts together
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
Product must be skidded for shipping; skid fee will apply
| Width (in) | 29 | Depth (in) | 117 | Overall Height (in) | 102 | Weight (lbs) | 201 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| # of Steps (incl. Platform) | 6 | Platform Height (in) | 60 | Platform Size (in) | 24 x 30 | Step Angle (°) | 50 |
| Step Width (in) | 24 | Handrail (in) | 42 | Clearance (in) | 58-5/8 x 9-3/8 | Shipping Size (in) | 132 x 40 x 49 |
Specifications

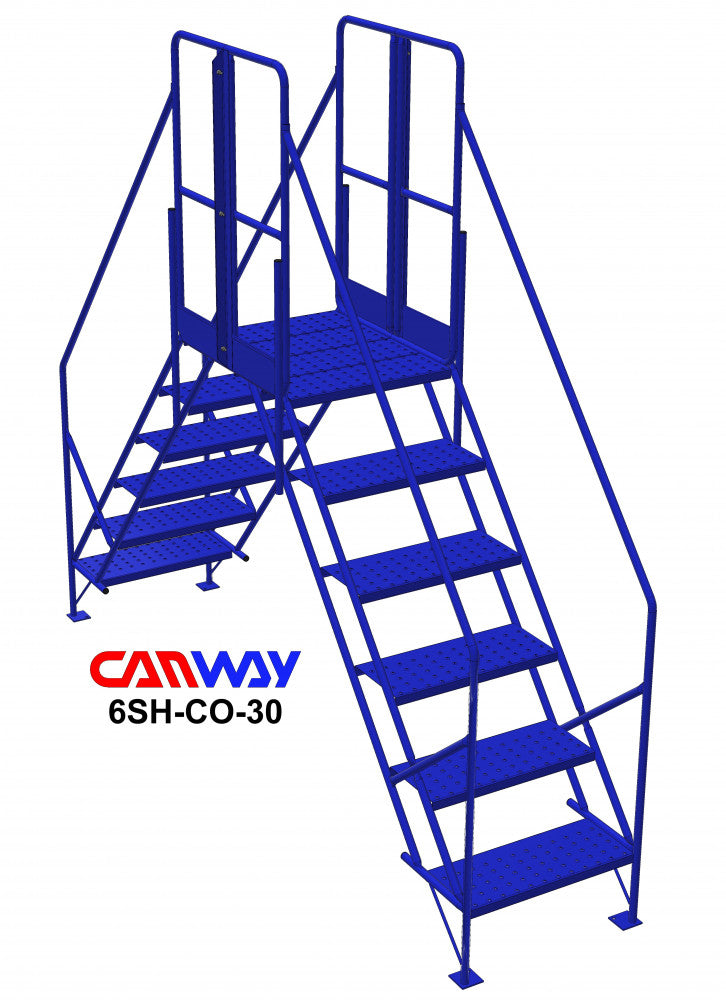

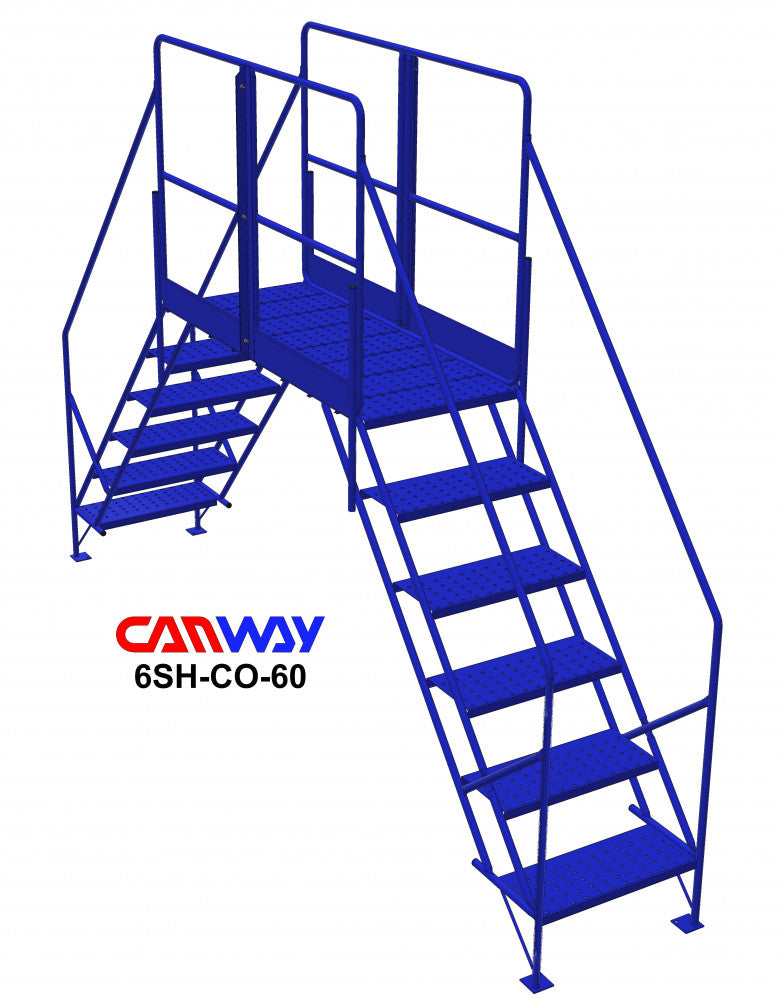

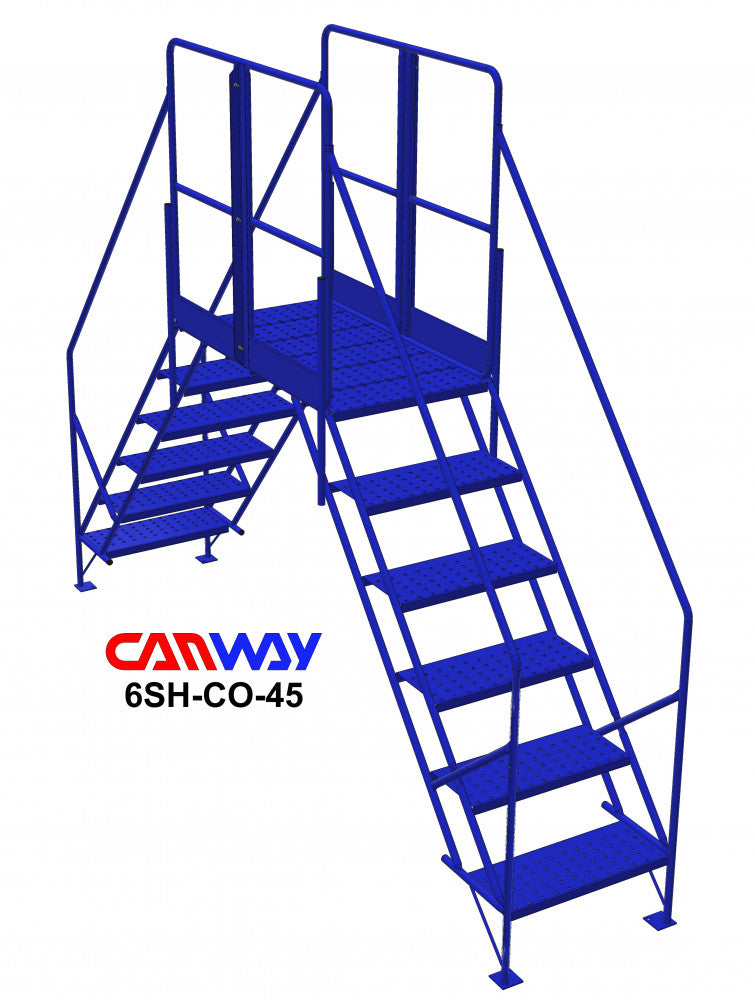

x6 Step 50° Safety Angle Crossover Ladder
The 6 Step 50° Safety Angle Crossover Ladder from Canway Equipment provides a safe walkway over conveyors, machinery, pipes and other obstacles. The 50° safety angle allows the user to face forward while descending. Constructed from 1 x 16 ga. round tube steel with a durable blue powder coat finish and standard non-slip, perforated, raised dimpled steps. Rated for a maximum load of 400 lb (one person only). Ships in two pieces and easily bolts together; product must be skidded for shipping and a skid fee will apply. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario OHS Regulation 851 standards; tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width (in): 29
- Depth (in): 117
- Overall Height (in): 102
- Weight (lbs): 201
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- # of Steps (incl. Platform): 6
- Platform Height (in): 60
- Platform Size (in): 24 x 30
- Step Angle (°): 50
- Step Width (in): 24
- Handrail (in): 42
- Clearance (in): 58-5/8 x 9-3/8
- Shipping Size (in): 132 x 40 x 49
Common Applications
- Access over conveyors in warehouses and distribution centres
- Machine and equipment crossover in industrial plants
- Facility maintenance access across piping and ductwork
- Temporary or permanent crossover solutions for manufacturing lines
Safety and Stability
Designed and tested to meet ANSI 14.7 and OSHA 1910.29 requirements and applicable Ontario regulations, this ladder incorporates non-slip perforated steps, a stable 50° angle for forward-facing descent, and certified engineering for reliable stability under a 400 lb rated load.
Key Benefits
- High capacity: 400 lb maximum rated load for single-user operation
- Durable construction: 1 x 16 ga. round tube steel with powder coat finish for long service life
- Safe descent: 50° safety angle enables users to face forward when descending
- Efficient installation and transport: ships in two pieces and bolts together onsite
- Regulatory compliance: engineered and tested to applicable ANSI, OSHA and Ontario standards
Frequently Asked Questions
What is the maximum load capacity?
The ladder is rated for a maximum load of 400 lb and intended for one person only.
Does the ladder meet regulatory safety standards?
Yes. It complies with ANSI 14.7 and OSHA 1910.29 and meets applicable Ontario OHS Regulation 851 requirements; it has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or order the 6 Step 50° Safety Angle Crossover Ladder from Canway Equipment, contact Material Handling Canada for pricing, lead time and shipping arrangements. Visit materialhandlingcanada.com or contact our sales team to request a quote; note that the product must be skidded for shipping and a skid fee will apply.
