Description
xCantilever design allows access to hard-to-reach areas
50 ° safety angle ladder allows user to face forward while descending
1"x 16 ga. round tube construction
19" platform depth plus overhang
Steps are 9-1/2" deep, non-slip, raised, perforated, dimpled tread pattern
Four 6" phenolic casters, 2 swivel with metal total lock brake (CAS-6PH-SW-MTLB) and 2 rigid (CAS-6PH-RG)
400 lb. capacity
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
See website for:
Ladder Assembly Instructions and User Guide
Schematic Drawings with dimensions and isometric view
Canway Certification Statement covering Mobile Ladder Stands
| Width (in) | 39 | Depth (in) | 108 | Overall Height (in) | 113 | Weight (lbs) | 668 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Caster Size (in) | 6 x 2 | Caster Type | Phenolic | # of Steps (incl. Platform) | 7 | Overhang Clearance (in) | 68 x 35.5 |
| Platform Height (in) | 70 | Platform Size (in) | 28 x 57 | Step Angle (°) | 50 | Step Width (in) | 28 |
| Handrail (in) | 42 | Shipping Size (in) | 147 x 39 x 79 |
Specifications

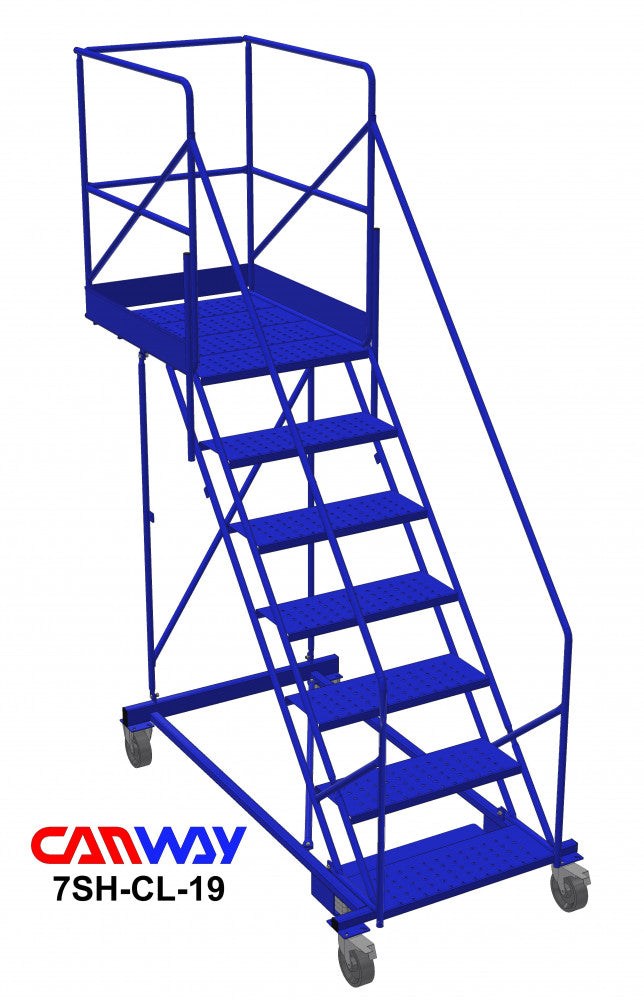

x7 Step 50° Cantilever Mobile Ladder Stand, 38" overhang
Cantilever design allows access to hard-to-reach areas while the 50° safety angle lets the user face forward when descending. Constructed of 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit features a 19" platform depth plus overhang and non-slip 9-1/2" deep steps with raised, perforated, dimpled tread. Four 6" phenolic casters (2 swivel with metal total lock brake and 2 rigid) provide mobility. Rated for a maximum load of 400 lb (one person only). Ships knocked down. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards. See manufacturer documentation for assembly, schematics and certification.
Technical Specifications
- Width (in): 39
- Depth (in): 108
- Overall Height (in): 113
- Weight (lbs): 668
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Caster Size (in): 6 x 2
- Caster Type: Phenolic
- # of Steps (incl. Platform): 7
- Overhang Clearance (in): 68 x 35.5
- Platform Height (in): 70
- Platform Size (in): 28 x 57
- Step Angle (°): 50
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 147 x 39 x 79
Common Applications
- Warehouse picking and staging
- Distribution center access and order fulfillment
- Industrial production line maintenance
- Facility service and repairs
- Machine access for inspection and tooling
Safety and Stability
The ladder stand is engineered to meet ANSI 14.7 and OSHA 1910.29 mobile ladder standards and is tested and approved by an Ontario Professional Engineer. Non-slip perforated treads, 50° step angle, handrails and metal total lock brakes on swivel casters enhance user safety and unit stability under the 400 lb rated load.
Key Benefits
- High load capacity: 400 lb rating for single-user industrial tasks
- Durable construction: 1" x 16 ga. round tube steel with powder coat finish
- Maneuverability: four 6" phenolic casters with two total lock brakes
- Access efficiency: 19" platform depth plus 38" overhang for hard-to-reach areas
- Safety-oriented design: 50° angle, handrails and non-slip treads
Frequently Asked Questions
What is the maximum load capacity?
Maximum rated load is 400 lbs (one person only).
Does the unit comply with industrial safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act requirements; certified by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada through materialhandlingcanada.com. Professional sales and shipping support are available for supply, ordering and delivery to industrial sites.
