Description

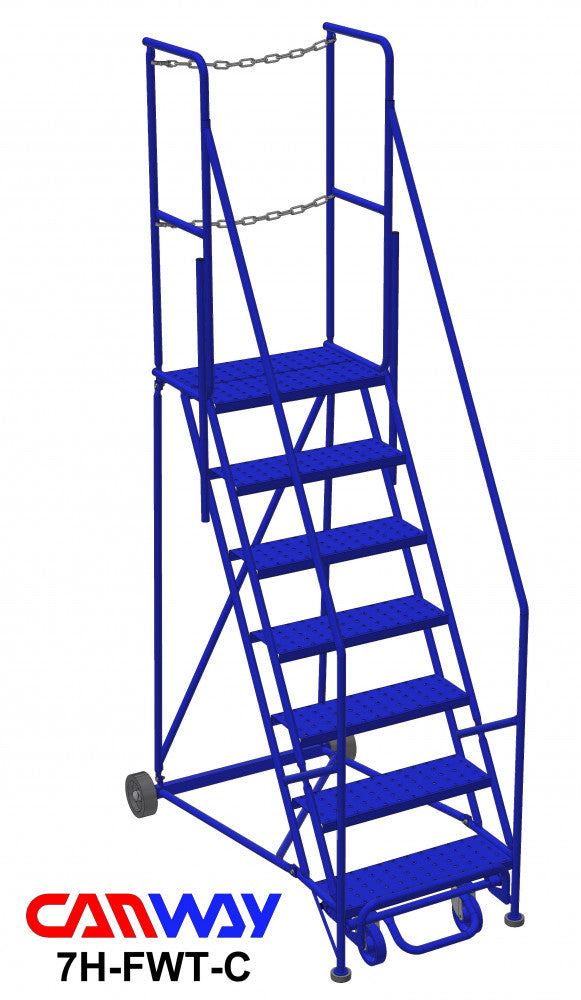

xMobile Ladder Stand with Front Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 34 | Depth (in) | 56 | Overall Height (in) | 105 | Weight (lbs) | 130 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 6 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 7 | Platform Height (in) | 63 | Platform Size (in) | 24 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Shipping Size (in) | 110 x 34 x 39 |
Specifications
x7 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Front Walk Through
Mobile Ladder Stand with front walk-through access and non-slip diamond channel grating treads. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish. Includes snap chain, positive floor locking trip step mechanism, 15" platform depth and tested/approved by an Ontario Professional Engineer. Complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851. Maximum rated load: 400 lbs (one person only). 4H-5H ship fully assembled; 6H-20H ship knocked down.
Technical Specifications
- Width (in): 34
- Depth (in): 56
- Overall Height (in): 105
- Weight (lbs): 130
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 6
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 7
- Platform Height (in): 63
- Platform Size (in): 24 x 15
- Step Angle (°): 60
- Step Width (in): 24
- Handrail (in): 42
- Shipping Size (in): 110 x 34 x 39
Common Applications
- Warehouse picking and inventory access
- Distribution center order staging
- Industrial production lines and maintenance stations
- Facility access for HVAC, electrical, and overhead servicing
Safety and Stability
Designed to meet ANSI 14.7 and OSHA 1910.29 with a positive floor locking trip step mechanism, non-slip diamond channel treads and engineer-tested construction to ensure stability under the 400 lb maximum rated load.
Key Benefits
- 400 lb capacity supports one worker and tools
- Durable steel construction with powder coat finish for long service life
- Diamond channel grating provides non-slip, secure footing
- Front walk-through design for efficient access and egress
- Casters and wheels provide mobility for flexible work areas
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs for one person.
Does it comply with safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and Ontario Regulation 851 and has been tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or request a quote, contact Material Handling Canada. Visit materialhandlingcanada.com to order, arrange shipping, or discuss delivery and assembly options with our sales team.
