Description
xMobile Ladder Stand with Left Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 34 | Depth (in) | 61 | Overall Height (in) | 105 | Weight (lbs) | 130 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 6 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 7 | Platform Height (in) | 63 | Platform Size (in) | 24 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 24 | Handrail (in) | 42 | Shipping Size (in) | 124 x 34 x 52 |
Specifications

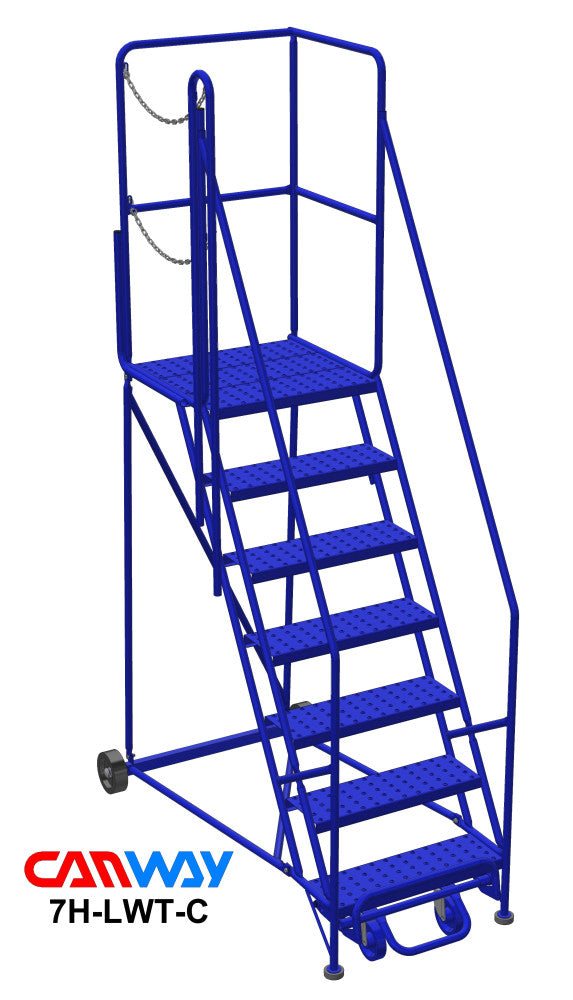

x7 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through
Canway Equipment mobile ladder stand with left walk through and non-slip diamond channel grating provides safe access to platforms and raised surfaces. Constructed from 1" x 16 ga. round tube steel with a durable blue powder coat finish, the unit includes a snap chain, positive floor locking trip step mechanism, and a maximum rated load of 400 lb (one person only). Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements; tested and approved by an Ontario Professional Engineer.
Technical Specifications
- Width: 34 in
- Depth: 61 in
- Overall Height: 105 in
- Weight: 130 lbs
- Capacity: 400 lbs
- Material: Steel
- Finish: Powder Coat (Blue)
- Wheel Size: 6 in (Polyolefin)
- Caster Size: 5 in (Rubber Swivel)
- # of Steps (incl. platform): 7
- Platform Height: 63 in
- Platform Size: 24 x 22.5 in
- Step Angle: 60°
- Step Width: 24 in
- Handrail Height: 42 in
- Shipping Size: 124 x 34 x 52 in
Common Applications
- Warehouse picking and order fulfillment
- Distribution center access and staging
- Industrial production floor access
- Facility maintenance and equipment servicing
- Safe access for inspection and inventory tasks
Safety and Stability
The ladder incorporates non-slip diamond channel grating treads, a positive floor locking trip step, and is rated for a single-user maximum load of 400 lb. It meets ANSI 14.7 and OSHA 1910.29 standards and is certified by an Ontario Professional Engineer for use in Ontario, Canada and the United States.
Key Benefits
- Capacity: 400 lb single-user rating for routine access tasks
- Durability: welded steel construction with powder coat finish resists wear
- Mobility: polyolefin wheels and rubber swivel casters for easy repositioning
- Stability: positive floor locking mechanism enhances user stability
- Efficiency: 22.5" platform depth and 7-1/2" deep steps for comfortable footing
Frequently Asked Questions
What is the maximum load and user capacity?
The maximum rated load is 400 lbs and the product is intended for one person only.
Does the ladder meet regulatory safety standards?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Regulation 851 requirements and has been tested and approved by an Ontario Professional Engineer.
