Description
xAppliance truck with auto-rewind ratchet locking system
Roller stairclimbers
Non-marking vinyl on contact surfaces
24" wide x 5" deep toe plate
Capacity : 800/1200 (when using back wheels)
Flip out casters give extra support to heavy loads
8"cushion rubber wheels
Durable red powder coat finish
Set up charge applies to orders less than 10 units
Replacement Parts:
WHL-8C 5/8
HW-SHAFT COLLAR 5/8"
CAS-3HDTS
COM-RSS
BF-H
BF-V-72
CRA-1284AR
HDA-HA
HDA-LA
HDA-TP
HDA-TS
RB1284AR
| Width (in) | 24 | Depth (in) | 15 | Overall Height (in) | 72 | Weight (lbs) | 72 |
| Toe Plate | 24 x 5 | Capacity (lbs) | 800/1200 (when using back wheels) | Material | Steel | Handle Type | Loop |
| Finish | Powder Coat | Colour | Red | Wheel Size (in) | 8 x 2 | Wheel Type | Cushion Rubber |
| Caster Size (in) | 3x1-1/4 | Caster Type | Black Rubber | Shipping Size (in) | 24 x 15 x 72 |
Specifications

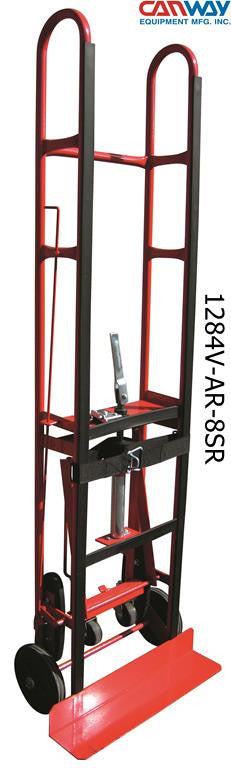

x72" High Auto-Rewind Ratchet System
The 72" High Auto-Rewind Ratchet System by Canway Equipment is an appliance truck with an integrated auto-rewind ratchet locking system and roller stairclimbers for controlled vertical movement. Contact surfaces use non-marking vinyl, and the unit features a 24" x 5" toe plate, flip-out casters for additional support on heavy loads, and an 8" cushion rubber wheel package. Durable red powder coat finish. Set up charge applies to orders under 10 units. Replacement parts available: WHL-8C 5/8, HW-SHAFT COLLAR 5/8", CAS-3HDTS, COM-RSS, BF-H, BF-V-72, CRA-1284AR, HDA-HA, HDA-LA, HDA-TP, HDA-TS, RB1284AR.
Technical Specifications
- Width (in): 24
- Depth (in): 15
- Overall Height (in): 72
- Weight (lbs): 72
- Toe Plate: 24 x 5
- Capacity (lbs): 800/1200 (when using back wheels)
- Material: Steel
- Handle Type: Loop
- Finish: Powder Coat
- Colour: Red
- Wheel Size (in): 8 x 2
- Wheel Type: Cushion Rubber
- Caster Size (in): 3x1-1/4
- Caster Type: Black Rubber
- Shipping Size (in): 24 x 15 x 72
Common Applications
- Appliance delivery and installation in residential and commercial settings
- Warehouse material handling and internal transport
- Distribution centers for loading and unloading heavy appliances
- Industrial facilities and maintenance departments for equipment movement
- Facility services requiring stairclimbing capacity
Safety and Stability
The unit combines an auto-rewind ratchet locking system with roller stairclimbers and flip-out casters to improve control on stairs and provide additional support for heavy loads. Non-marking vinyl contact surfaces reduce load slippage and protect product finishes.
Key Benefits
- High capacity: 800/1200 lbs when using back wheels for increased load handling
- Durable steel construction with powder coat finish for long service life
- Mobility: 8" cushion rubber wheels and roller stairclimbers for smooth transit
- Efficiency: auto-rewind ratchet reduces manual effort during positioning
- Stability: flip-out casters add support for heavy or awkward loads
Frequently Asked Questions
What is the load capacity?
Capacity is 800 lbs standard and 1200 lbs when using the back wheels configuration.
Are replacement parts available?
Yes. Replacement parts include WHL-8C 5/8, HW-SHAFT COLLAR 5/8", CAS-3HDTS, COM-RSS, BF-H, BF-V-72, CRA-1284AR, HDA-HA, HDA-LA, HDA-TP, HDA-TS, and RB1284AR.
Ordering and Shipping
To purchase or request volume pricing, contact Material Handling Canada. Visit materialhandlingcanada.com to order, arrange shipping, or inquire about set up charges and lead times.
