Description
xMobile Ladder Stand with Left Walk Through and Diamond Channel Grating
Allows for easy access to platforms and other raised surfaces (includes snap chain)
1" x 16 ga. round tube construction
22.5" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
400 lb. capacity
4H-5H ship fully assembled; 6H-20H ship knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 67 | Overall Height (in) | 114 | Weight (lbs) | 165 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 8 | Platform Height (in) | 72 | Platform Size (in) | 28 x 22.5 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 131 x 38 x 55 |
Specifications

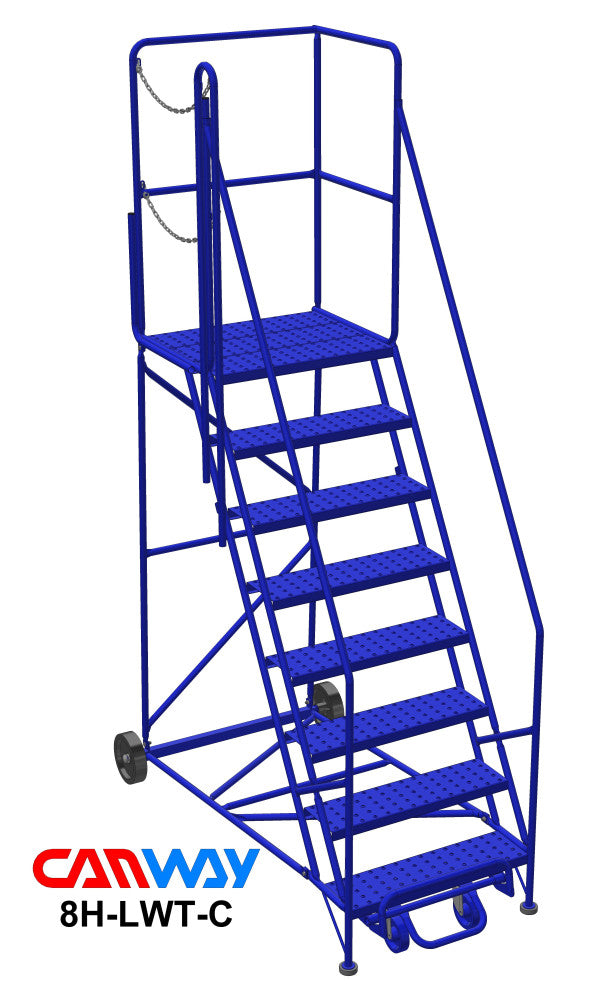

x8 Step 60° Mobile Ladder Stand w/Diamond Channel Grating, Left Walk Through
Mobile ladder stand with left walk through and non-slip diamond channel grating. Allows easy access to platforms and raised surfaces and includes snap chain. Constructed from 1" x 16 ga. round tube with a 22.5" platform depth and 7-1/2" deep treads. Positive floor locking trip step mechanism, 400 lb. maximum rated load (one person only). Durable blue powder coat finish. Complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851; tested and approved by an Ontario Professional Engineer for steel and stainless steel.
Technical Specifications
- Width (in): 38
- Depth (in): 67
- Overall Height (in): 114
- Weight (lbs): 165
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 8
- Platform Height (in): 72
- Platform Size (in): 28 x 22.5
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 131 x 38 x 55
Common Applications
- Warehouse picking and inventory access
- Distribution center order staging and mezzanine access
- Industrial production lines and equipment access
- Facility maintenance and servicing
- General elevated platform access for one-person tasks
Safety and Stability
The ladder features non-slip diamond channel grating treads, a positive floor locking trip step mechanism and is rated to 400 lb. It meets ANSI 14.7 and OSHA 1910.29 and complies with Ontario Regulation 851; engineered verification by an Ontario Professional Engineer ensures conformity for Canada and the USA.
Key Benefits
- High capacity: 400 lb. rated for single-user tasks
- Durable construction: 1" x 16 ga. steel tube and powder coat finish for long service life
- Mobility: polyolefin wheels and rubber swivel casters for easy repositioning
- Efficient access: 22.5" platform depth and 7-1/2" deep treads for stable footing
- Safety-focused: positive floor lock and compliant to applicable safety standards
Frequently Asked Questions
Does this ladder arrive assembled?
Units 4H-5H ship fully assembled; units 6H-20H ship knocked down for freight efficiency.
What is the maximum load capacity?
The ladder is rated to a maximum of 400 lb and intended for one person only.
