Description

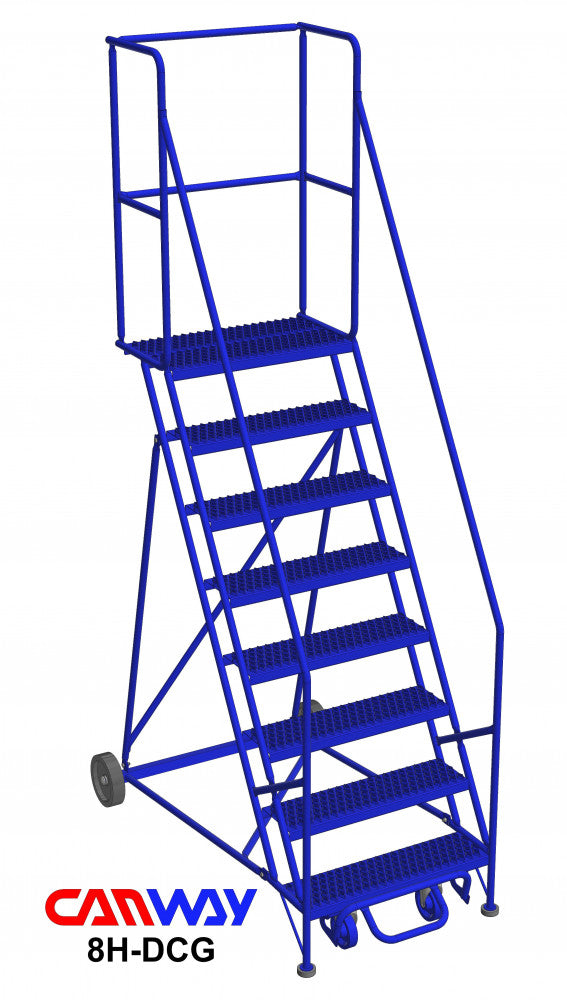

xMobile Ladder Stand with Diamond Channel Grating
1" x 16 ga. round tube construction
15" platform depth
Steps are 7-1/2" deep, non-slip diamond channel grating tread
Positive floor locking trip step mechanism
Ships knocked down
Durable blue powder coat finish
Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
Maximum rated load: 400 lbs (one person only)
| Width (in) | 38 | Depth (in) | 62 | Overall Height (in) | 114 | Weight (lbs) | 154 |
| Capacity (lbs) | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Polyolefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 8 | Platform Height (in) | 72 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 124 x 38 x 39 |
Specifications
x8 Step 60° Mobile Ladder Stand with Diamond Channel Grating
Canway Equipment's 8 Step 60° Mobile Ladder Stand with Diamond Channel Grating provides a durable, mobile access solution for industrial work environments. Constructed from 1" x 16 ga. round tube steel with a 15" platform depth and non-slip diamond channel grating treads, the unit features a positive floor locking trip step mechanism, blue powder coat finish, and ships knocked down for economical freight. The ladder complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario safety standards; tested and approved by an Ontario Professional Engineer. Maximum rated load: 400 lbs (one person only).
Technical Specifications
- Width (in): 38
- Depth (in): 62
- Overall Height (in): 114
- Weight (lbs): 154
- Capacity (lbs): 400
- Material: Steel
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 8
- Wheel Type: Polyolefin
- Caster Size (in): 5
- Caster Type: Rubber Swivel
- # of Steps (incl. Platform): 8
- Platform Height (in): 72
- Platform Size (in): 28 x 15
- Step Angle (°): 60
- Step Width (in): 28
- Handrail (in): 42
- Shipping Size (in): 124 x 38 x 39
Common Applications
- Warehouse picking and stock replenishment
- Distribution center order selection
- Industrial assembly and production access
- Facility maintenance and inventory inspections
Safety and Stability
The ladder is designed with non-slip diamond channel grating treads, a positive floor locking trip step mechanism and meets ANSI 14.7 and OSHA 1910.29 standards as well as applicable Ontario health and safety regulations to ensure stable, compliant use by one person up to a 400 lb rated load.
Key Benefits
- Capacity: 400 lb rated load for single-user tasks
- Durability: 1" x 16 ga. steel tube construction and powder coat finish
- Mobility: Polyolefin wheels and rubber swivel casters for easy positioning
- Efficiency: 15" platform depth and 7-1/2" deep steps for secure working area
- Compliance: Engineered and tested to meet regional and national safety standards
Frequently Asked Questions
What is the maximum load capacity?
The maximum rated load is 400 lbs and intended for one person only.
Does the ladder meet safety regulations?
Yes. It complies with ANSI 14.7, OSHA 1910.29 and applicable Ontario Occupational Health and Safety Act Regulation 851, and is tested and approved by an Ontario Professional Engineer.
Ordering and Shipping
To purchase or arrange shipping for the Canway Equipment 8 Step 60° Mobile Ladder Stand, contact Material Handling Canada through materialhandlingcanada.com for pricing, lead times and freight options.
