Description

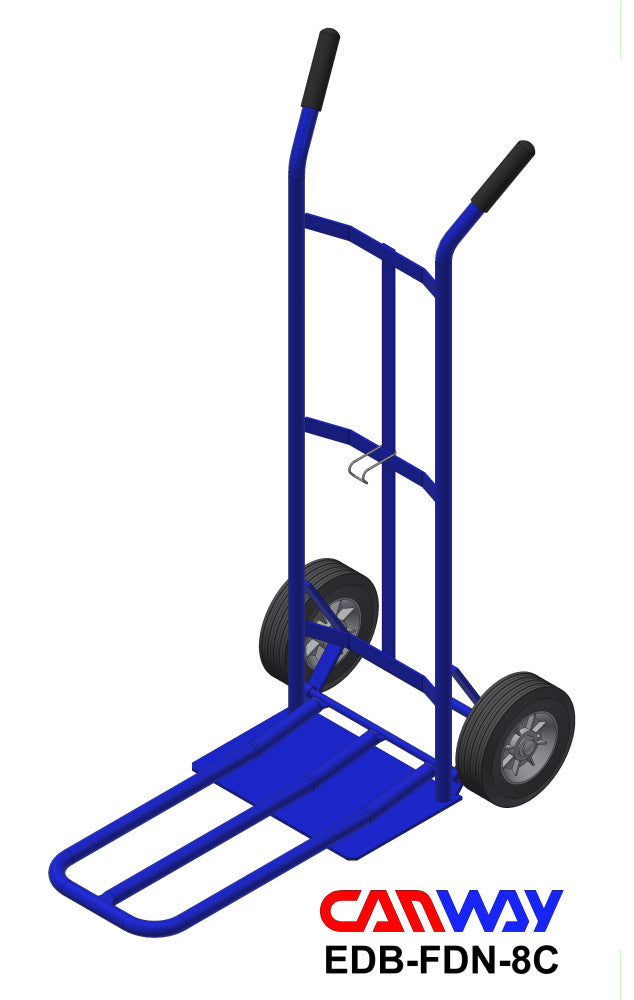

xStandard double grip handle handtruck with 23" fold down toe plate
Basket style back
1" x 16 ga. tube construction
14" wide x 8" deep toe plate
800 lbs. frame capacity
Durable blue powder coat finish
Set up charge applies to orders less than 10 units
Optional Features:
Toe plate extension - up to 15" max
Wheel guards
Replacement Parts:
WHL-10C
HW-SHAFT COLLAR 5/8"
COM-GH1
| Width (in) | 20 | Depth (in) | 19 | Height (in) | 47 | Overall Height (in) | 47 |
| Weight (lbs) | 39 | Toe Plate | 14 x 8 | Capacity (lbs) | 800 | Material | Steel |
| Handle Type | Double Grip | Finish | Powder Coat | Colour | Blue | Wheel Size (in) | 10 x 2.5 |
| Wheel Type | Cushion Rubber | Shipping Size (in) | 20 x 19 x 47 |
Specifications
xDouble Grip Handle Handtruck w/Fold Down Nose
Standard double grip handle handtruck with 23" fold down toe plate and basket style back. Constructed of 1" x 16 ga. steel tube with a durable blue powder coat finish. Features a 14" x 8" toe plate, 10" x 2.5" cushion rubber wheels and an 800 lb. frame capacity. Optional toe plate extension (up to 15" max) and wheel guards available. Replacement parts: WHL-10C, HW-SHAFT COLLAR 5/8", COM-GH1. Set up charge applies to orders less than 10 units.
Technical Specifications
- Width (in): 20
- Depth (in): 19
- Height (in): 47
- Overall Height (in): 47
- Weight (lbs): 39
- Toe Plate: 14 x 8
- Capacity (lbs): 800
- Material: Steel
- Handle Type: Double Grip
- Finish: Powder Coat
- Colour: Blue
- Wheel Size (in): 10 x 2.5
- Wheel Type: Cushion Rubber
- Shipping Size (in): 20 x 19 x 47
Common Applications
- Warehouse material transport and order picking
- Distribution center receiving and put-away
- Industrial shop and manufacturing floor moves
- Facility maintenance and custodial supply handling
Safety and Stability
Steel tube construction and basket-style back provide structural stability for loads up to 800 lbs. Cushion rubber wheels and optional wheel guards improve traction and protection on typical facility surfaces. Follow rated capacity and proper loading practices.
Key Benefits
- High load capacity: 800 lb. frame rating for heavy handling
- Durable construction: 1" x 16 ga. steel tube with powder coat finish for longevity
- Fold-down nose: 23" fold-down toe plate for versatile loading and compact storage
- Mobility: 10" x 2.5" cushion rubber wheels for smooth transport
- Serviceability: common replacement parts available
Frequently Asked Questions
What is the toe plate size and can it be extended?
The standard toe plate measures 14" x 8" with a 23" fold-down nose; an optional toe plate extension is available up to 15" max.
What wheels are used and are replacement parts available?
Equipped with 10" x 2.5" cushion rubber wheels. Replacement parts listed include WHL-10C, HW-SHAFT COLLAR 5/8", and COM-GH1.
Ordering and Shipping
To order or request a quote, contact Material Handling Canada through materialhandlingcanada.com. Our team can provide pricing, lead times, and shipping details for single units or volume purchases; note set up charges apply for orders under 10 units.
