Description
xWe've engineered our 1 3/4" by 16' Logistic Ratchet Strap with Series F 1" Hole Track Butterfly Fittings to provide you with the webbing and hardware you need for a successful tie down job. Able to handle a working load limit of 670 Lbs. / 305 Kgs., this is the Logistic Strap you want for your trailer.

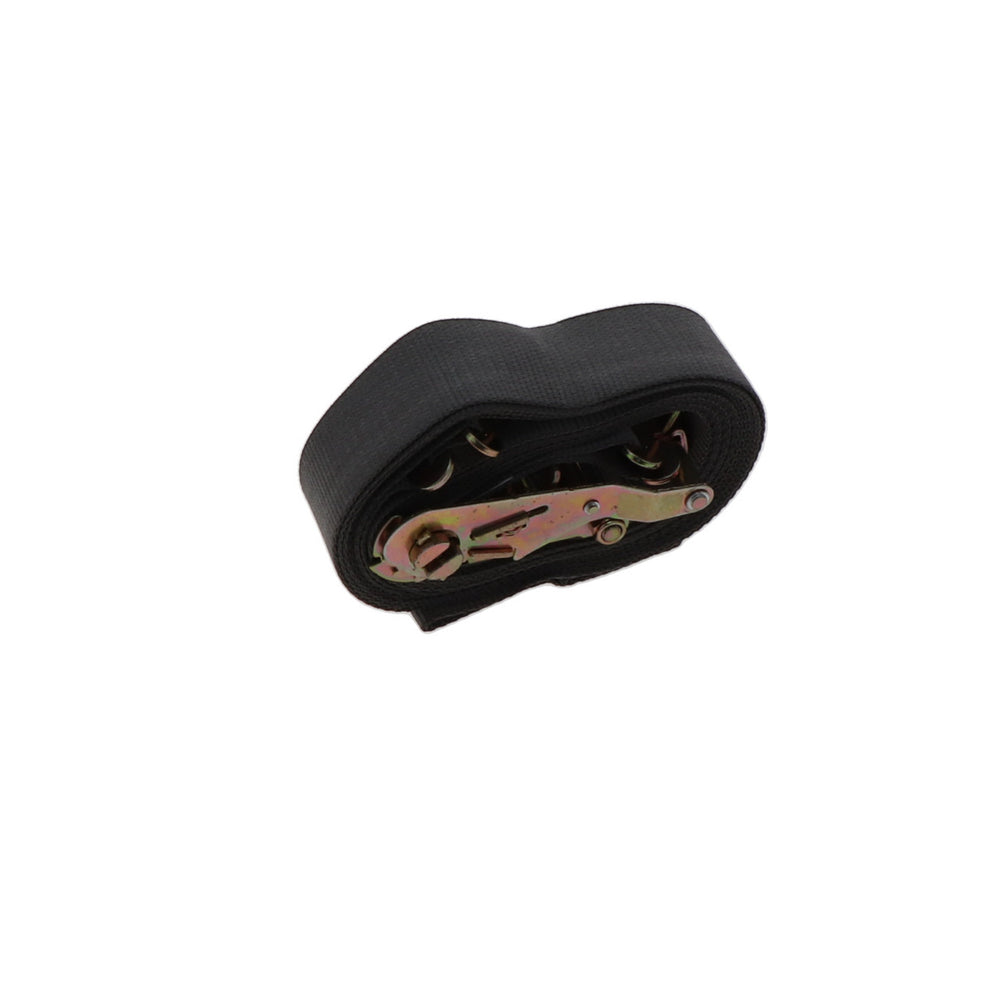

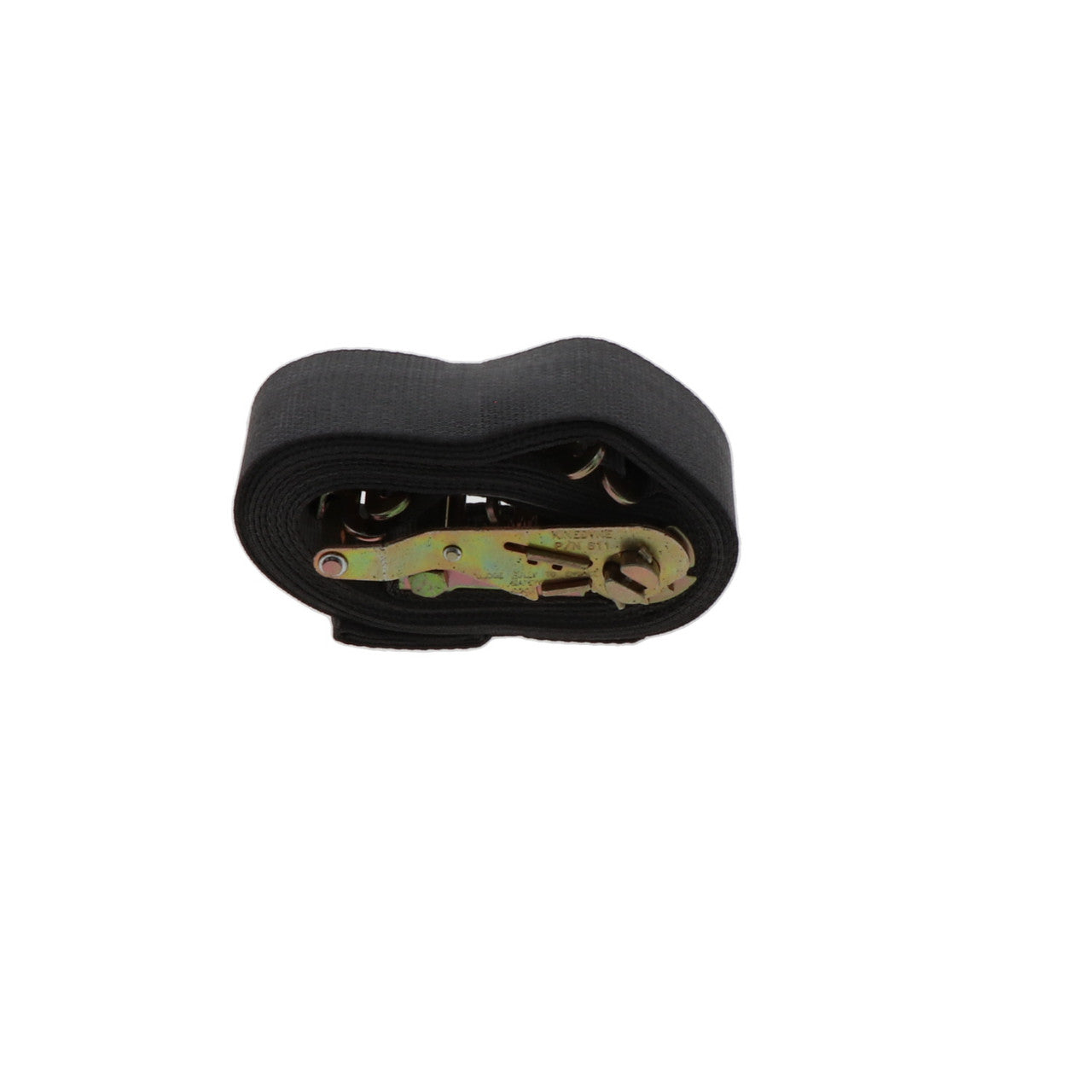

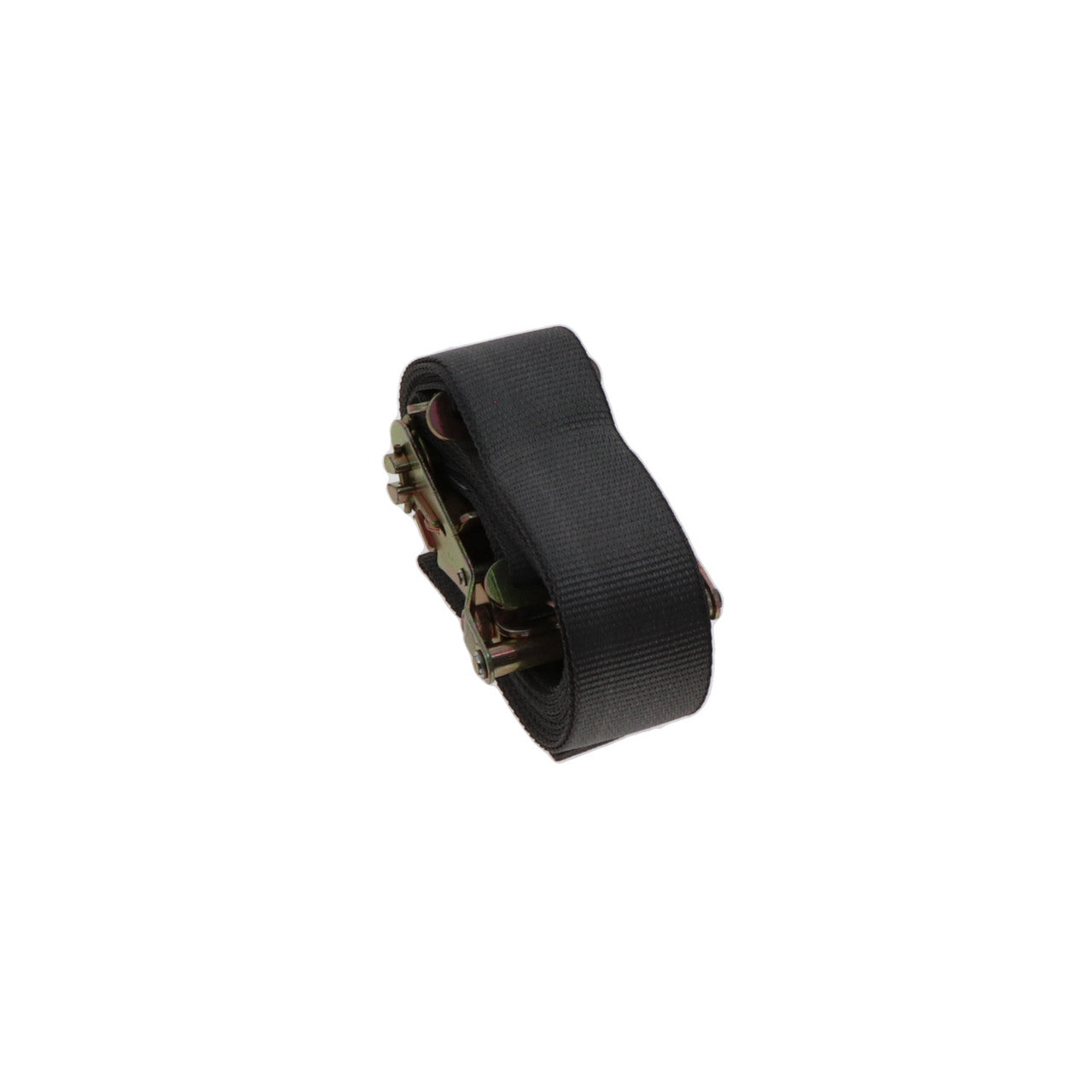

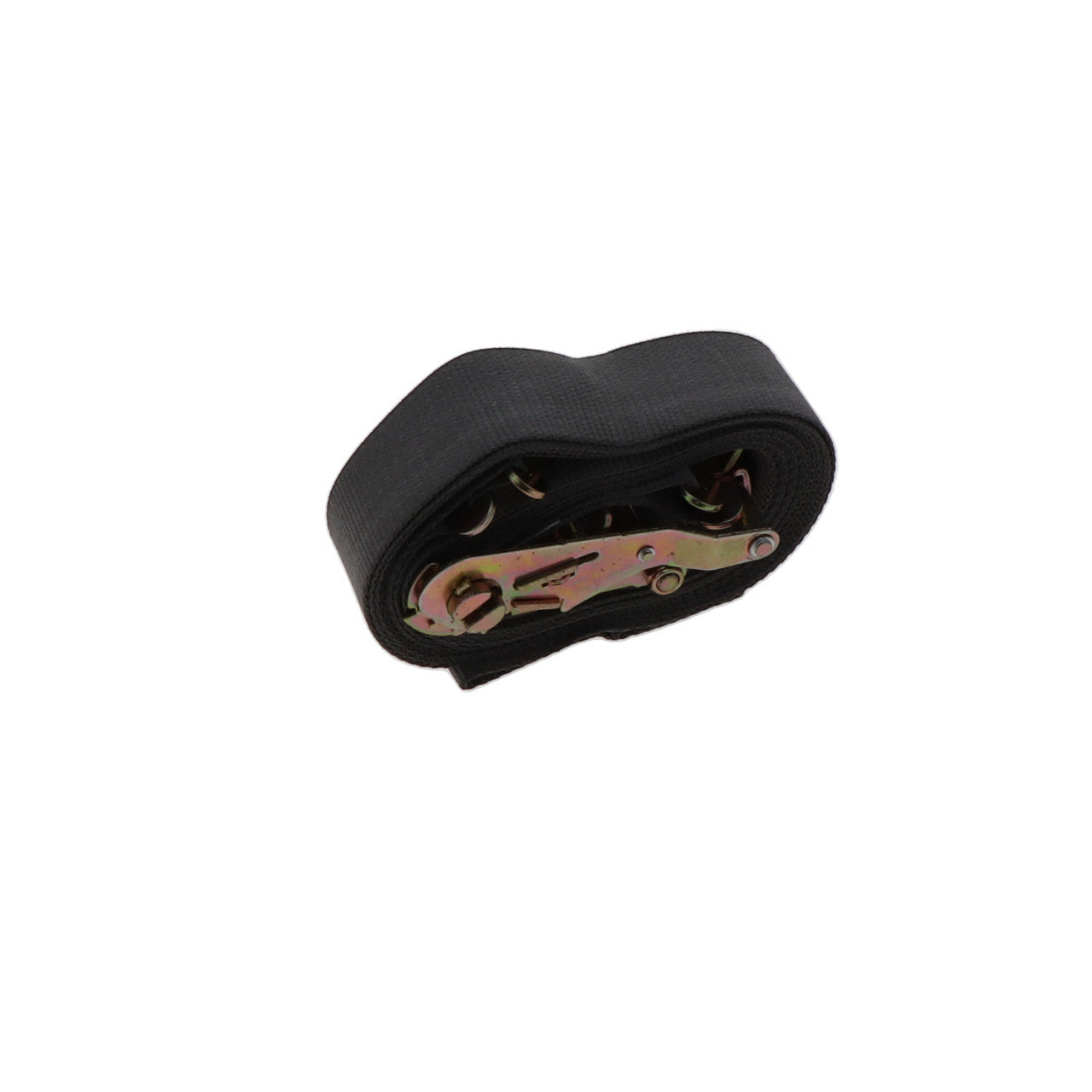

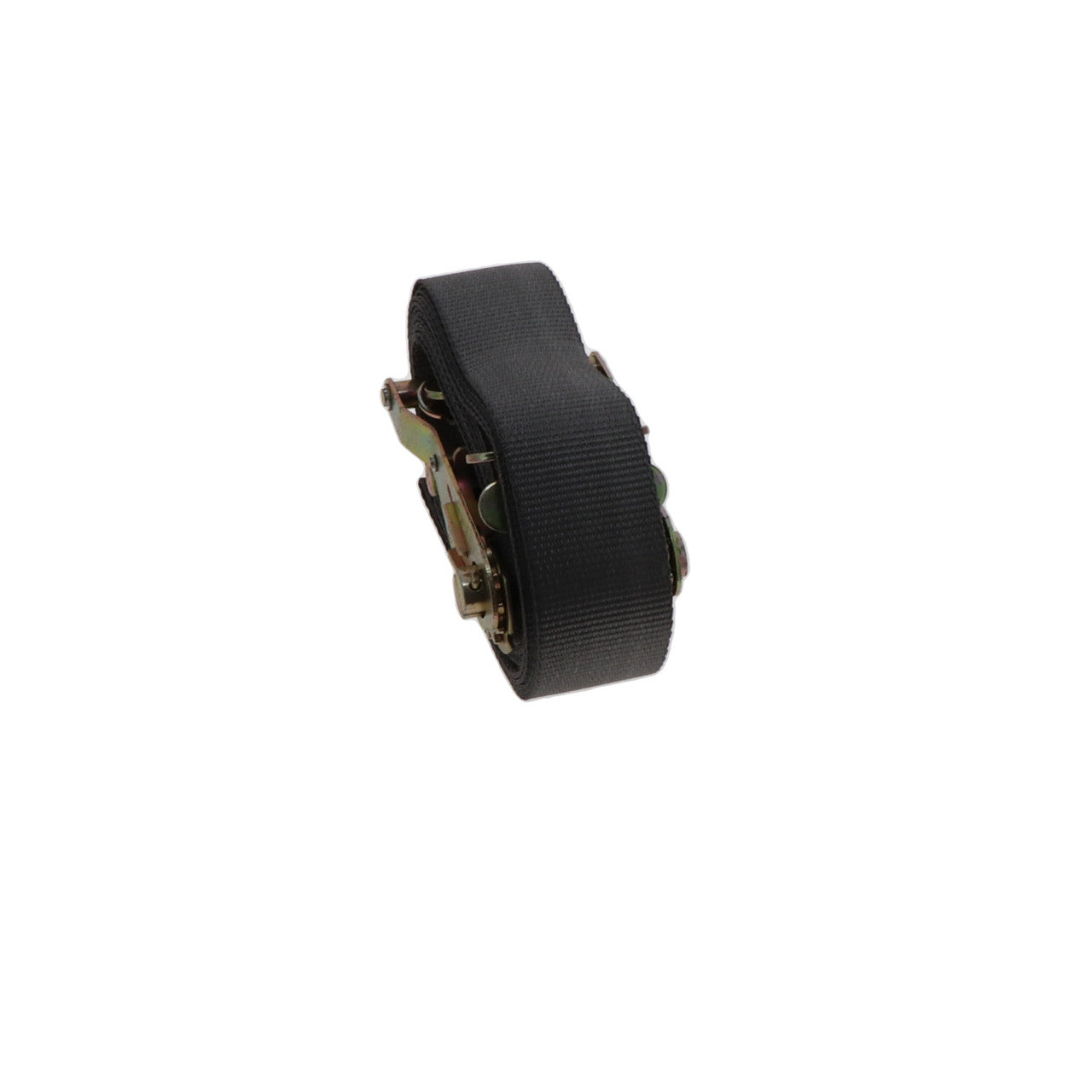

1 3/4-Inch x 16-Foot Series F Butterfly Logistic Ratchet Strap
Flexibility is important when it comes to securing your cargo within your trailer. That's why Kinedyne engineered our 1 3/4-Inch x 16-Foot Logistic Ratchet Strap with Series F 1-Inch Hole Track Butterfly Fittings to provide the kind of flexible strength needed for an effective and efficient tie down job. With a working load limit of 670 Lbs. / 305 Kgs., this Logistic Strap can be used with nearly any kind of cargo, no matter its shape or size.
In order to provide you with a reliable tie down strap, we've combined durable webbing with strong hardware. Our Kinedyne grey 1802G webbing is engineered under our direct quality control with a tight weave to enhance its durability. The webbing is also constructed with a polyester thread to offer minimum stretch when compared to other materials.

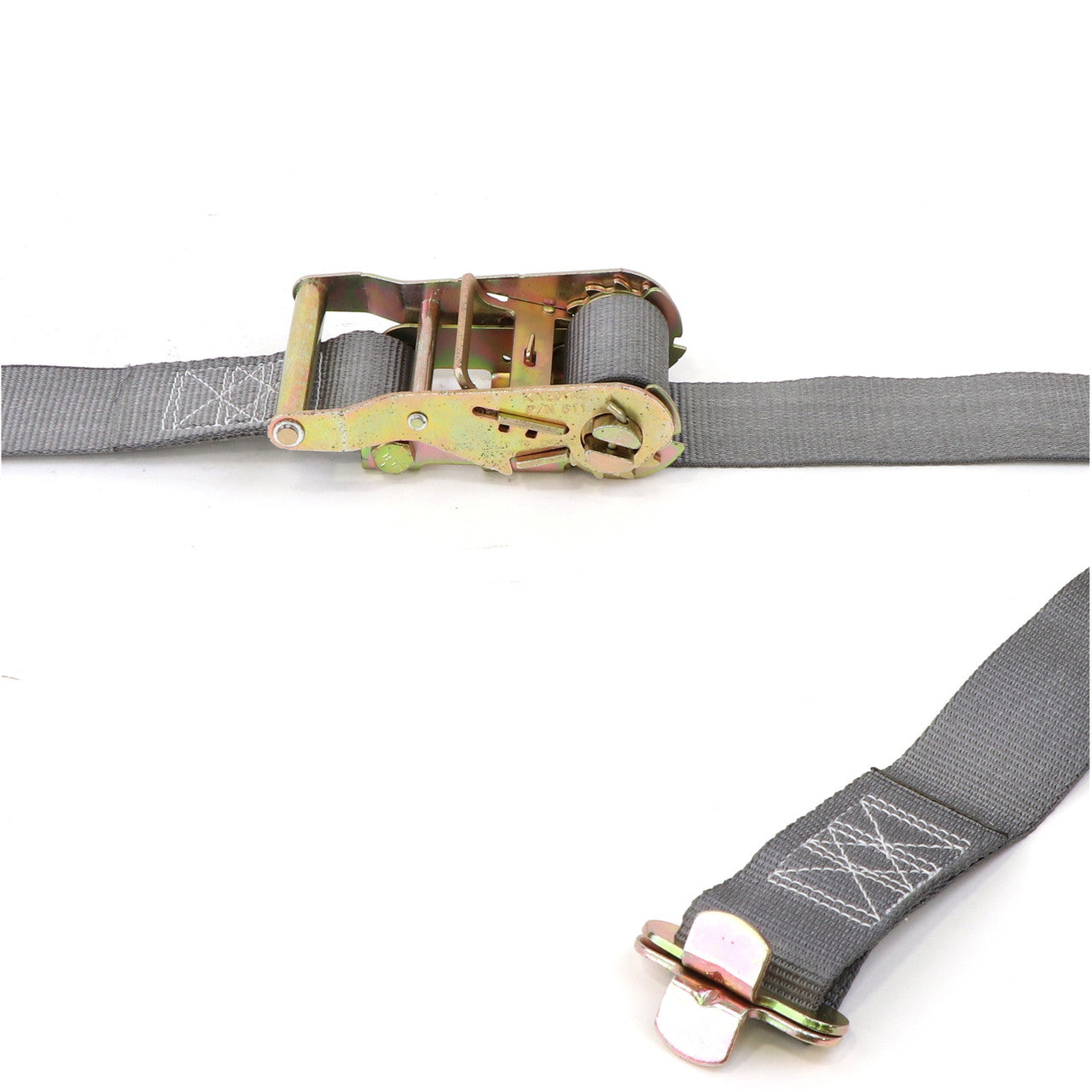

Our Logistic Strap's hardware is built from high-quality heat-treated carbon steel for extra strength. The Kinedyne 811 Standard Handle Ratchet is designed to help you achieve optimal tension with minimum effort. It only takes a few cranks to tighten down the strap to just how you want it. Working together with the Ratchet is a pair of our durable Kinedyne C1831 Series F 1" Hole Track Butterfly Fittings that provide quick and easy attachment to the Series F Track. These Fittings retain a strong grip on the Track for a reliable hold over your cargo.
1 3/4" by 16' Butterfly Logistic Ratchet Strap – 37D1618 Quick Specs:
- Working Load Limit: 670 Lbs. / 305 Kgs.
- Series Type: Series F Canada
- Width: 1 3/4 Inches
- Length: 16 Feet
- Weight: 1.99 Lbs. / 0.90 Kgs.
- Webbing: Kinedyne Grey 1802G Webbing
- Fixed End Length: 4 Feet
- Type of Tension Device: Kinedyne 811 Standard Handle Ratchet
- End Fitting: Kinedyne C1831 Series F 1 Inch Hole Track Butterfly Fitting
Specifications
xKinedyne 1 3/4" by 16' Butterfly Logistic Ratchet Strap
We've engineered our 1 3/4" by 16' Logistic Ratchet Strap with Series F 1" Hole Track Butterfly Fittings to provide you with the webbing and hardware you need for a successful tie down job. Able to handle a working load limit of 670 Lbs. / 305 Kgs., this is the Logistic Strap you want for your trailer.
Flexibility is important when it comes to securing your cargo within your trailer. That's why Kinedyne engineered our 1 3/4-Inch x 16-Foot Logistic Ratchet Strap with Series F 1-Inch Hole Track Butterfly Fittings to provide the kind of flexible strength needed for an effective and efficient tie down job. With a working load limit of 670 Lbs. / 305 Kgs., this Logistic Strap can be used with nearly any kind of cargo, no matter its shape or size.
In order to provide you with a reliable tie down strap, we've combined durable webbing with strong hardware. Our Kinedyne grey 1802G webbing is engineered under our direct quality control with a tight weave to enhance its durability. The webbing is also constructed with a polyester thread to offer minimum stretch when compared to other materials.
Our Logistic Strap's hardware is built from high-quality heat-treated carbon steel for extra strength. The Kinedyne 811 Standard Handle Ratchet is designed to help you achieve optimal tension with minimum effort. It only takes a few cranks to tighten down the strap to just how you want it. Working together with the Ratchet is a pair of our durable Kinedyne C1831 Series F 1" Hole Track Butterfly Fittings that provide quick and easy attachment to the Series F Track. These Fittings retain a strong grip on the Track for a reliable hold over your cargo.
Technical Specifications
- Working Load Limit: 670 Lbs. / 305 Kgs.
- Series Type: Series F Canada
- Width: 1 3/4 Inches
- Length: 16 Feet
- Weight: 1.99 Lbs. / 0.90 Kgs.
- Webbing: Kinedyne Grey 1802G Webbing
- Fixed End Length: 4 Feet
- Type of Tension Device: Kinedyne 811 Standard Handle Ratchet
- End Fitting: Kinedyne C1831 Series F 1 Inch Hole Track Butterfly Fitting
Common Applications
- Truck and trailer cargo restraint
- Warehouse load securement
- Distribution center freight handling
- Industrial transport and logistics
- Facility and maintenance equipment securing
Safety and Stability
Use the strap within its 670 lb (305 kg) working load limit and inspect webbing and fittings prior to each use. The heat-treated carbon steel hardware and tightly woven polyester webbing minimize stretch and maintain reliable tension when properly applied.
Key Benefits
- Rated capacity supports common trailer and cargo tie-down needs
- Durable Kinedyne 1802G webbing for reduced stretch and extended service life
- Heat-treated carbon steel ratchet and fittings for enhanced strength
- Butterfly Series F fittings allow quick attachment to Series F track systems
- Standard handle ratchet provides efficient tensioning with minimal effort
Frequently Asked Questions
What is the working load limit of this strap?
The working load limit is 670 Lbs. / 305 Kgs.
What fittings and ratchet are included?
Includes Kinedyne C1831 Series F 1" Hole Track Butterfly Fittings and a Kinedyne 811 Standard Handle Ratchet.
Ordering and Shipping
To order or request volume pricing, contact Material Handling Canada. Visit materialhandlingcanada.com for product availability, lead times, and shipping options or to speak with a sales representative.
