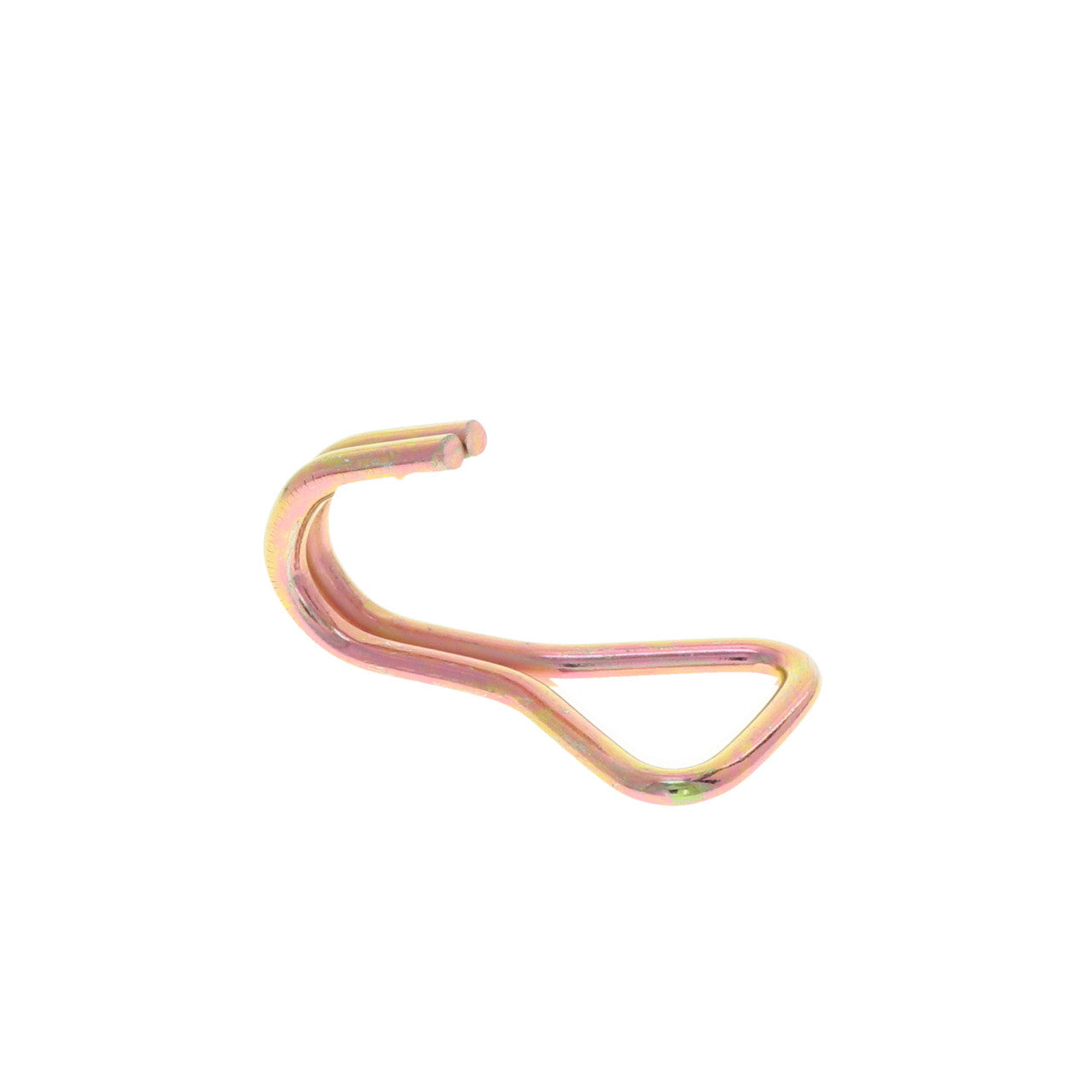

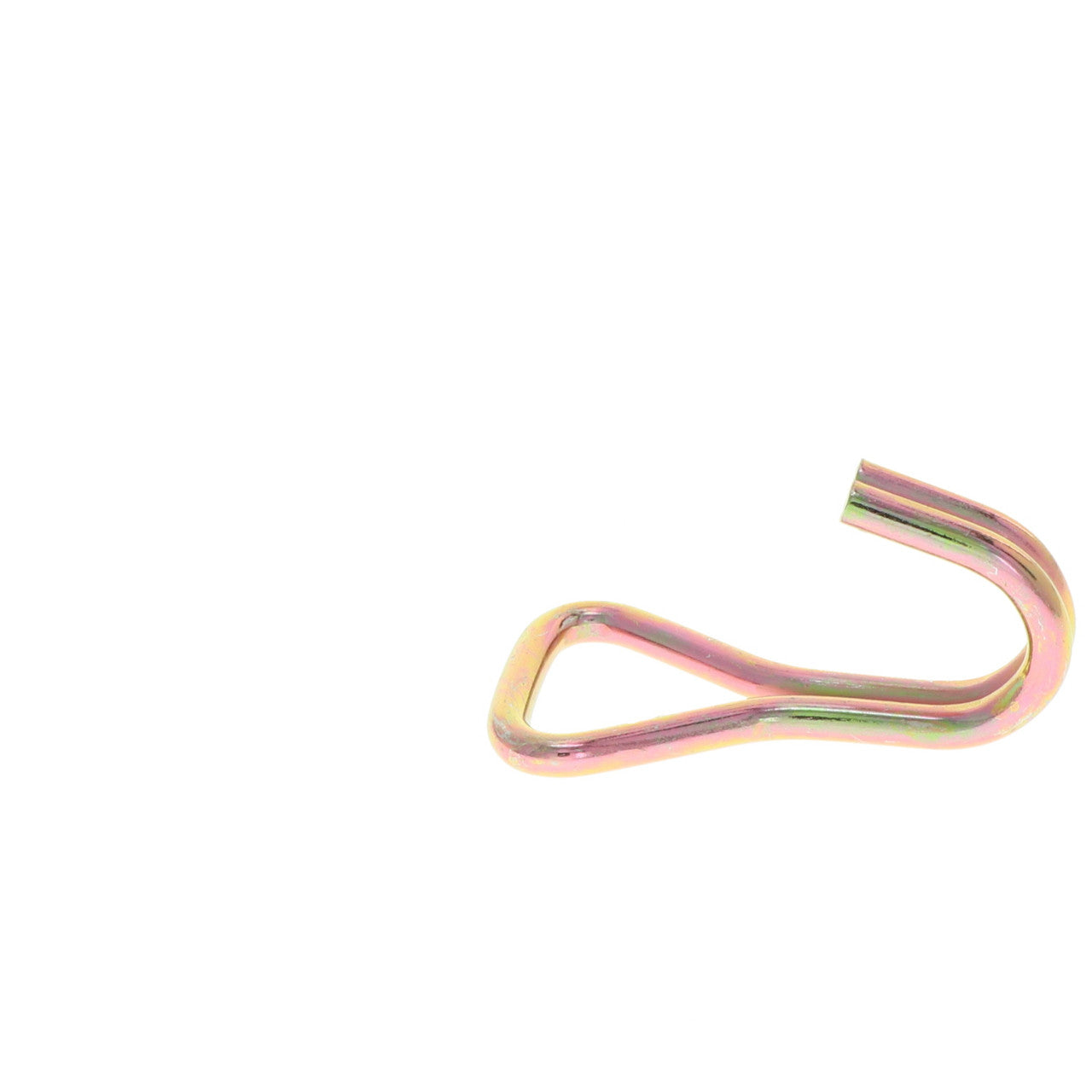

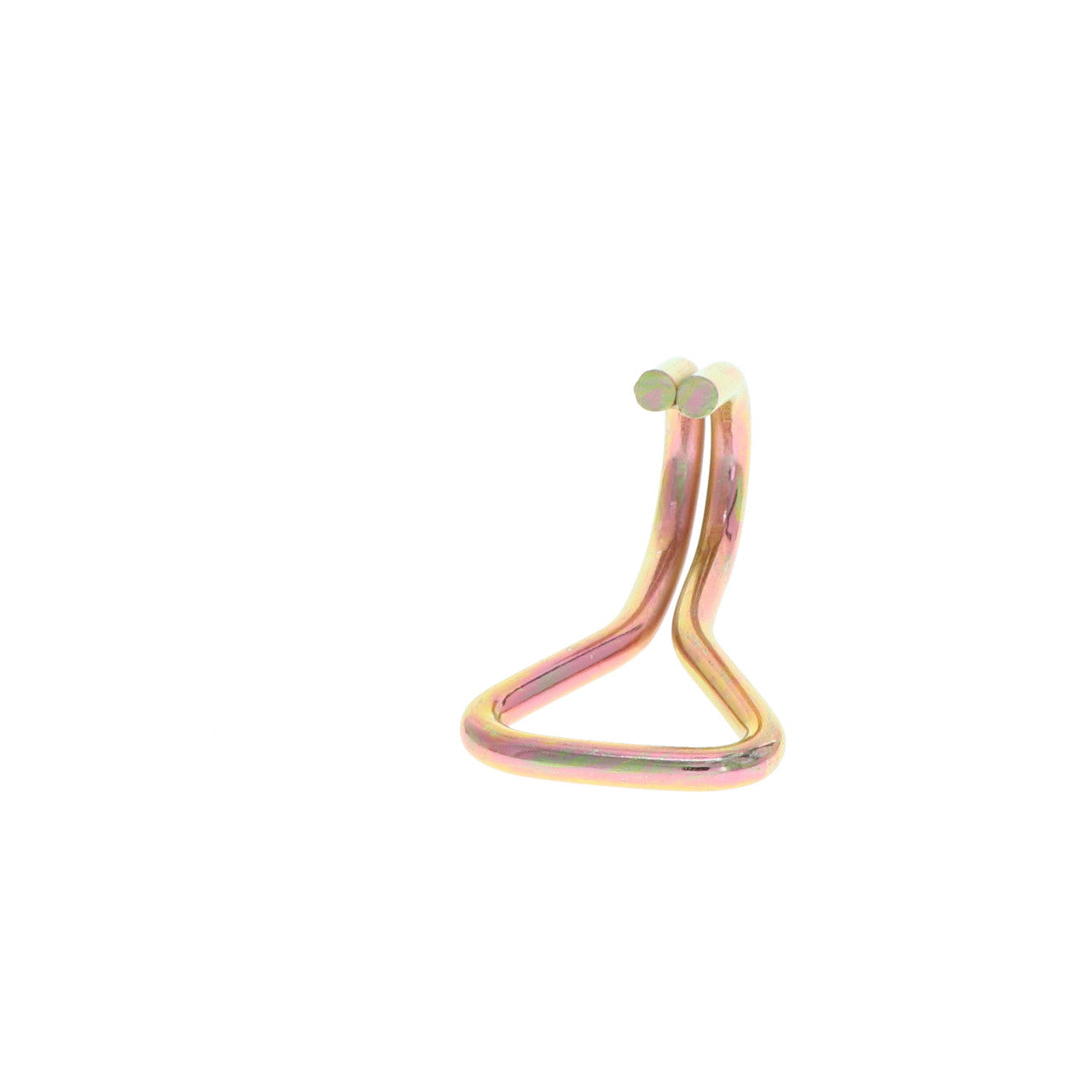

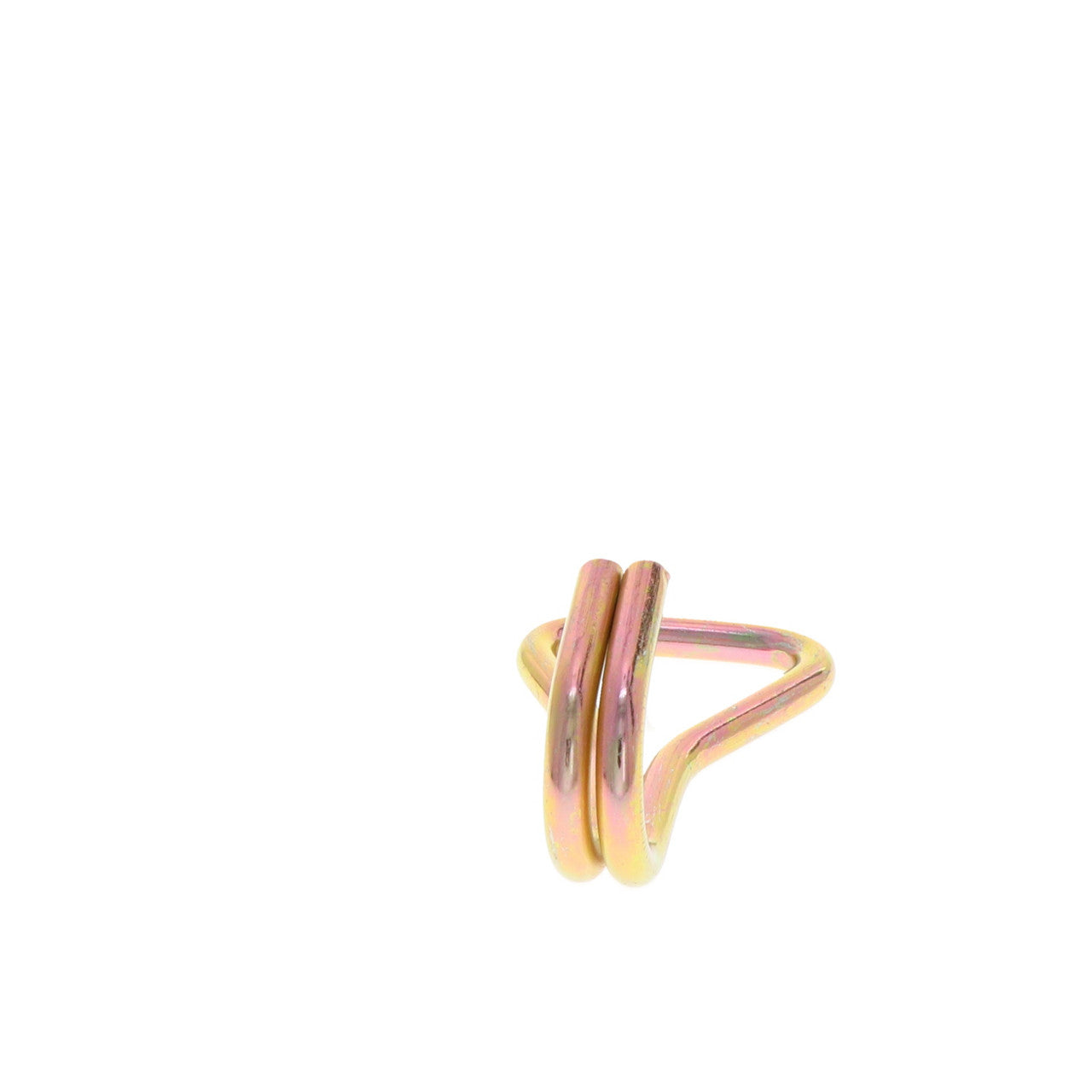

Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook

Kinedyne 1" U Hook

Vendor: Kinedyne
SKU: C1003
Availability: Processing Required
Product type: Cargo Handling
Notice: This product can be ordered, but in-store availability may vary.
Please call 1-888-799-7225 to confirm.
$0.89
$0.89
$0.89
Save $0.00
color: Gold Chromate
Subtotal: $0.89
Kinedyne 1" U Hook

Kinedyne 1" U Hook

$0.89
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook zinc-plated heat-treated carbon steel tie-down hook by Kinedyne for narrow anchor points
Kinedyne 1" U Hook

Kinedyne 1" U Hook

$0.89
color: Gold Chromate
Description
Description
x

For the narrower anchor points, try Kinedyne's slim 1" U Hook that can handle a working load limit of 167 Lbs. / 76 Kgs.

1-Inch U Hook

When the space between your vehicle and your anchor point is limited, you need the narrow form of Kinedyne's 1-inch U Hook to reach in there and get a good enough grip. This heat-treated carbon steel hook is designed to easily fit into your vehicle's anchor points for quick securement, saving you time and energy for a quicker tie down job. It then works with the strap and the tensioning device to provide you with a strong hold over your cargo. To increase its durability, the U Hook is coated in a zinc plated finish to protect it from corrosive damage.

1" U Hook – C1003 Quick Specs:

  • Working Load Limit: 167 Lbs. / 76 Kgs.
  • Size of Webbing Used With: 1 Inch
  • Overall Width: 1.38 Inches
  • Overall Height: 1.24 Inches
  • Overall Length: 2.61 Inches
  • Wire Thickness: 0.19 Inch
  • Width of Webbing Slot: 1 Inch
  • Width of Hook: 0.41 Inch
  • Hook Opening Width: 0.38 Inch
  • Weight: 0.07 Lbs. / 0.03 Kgs.
Specifications
Specifications
x

Kinedyne 1" U Hook

For the narrower anchor points, try Kinedyne's slim 1" U Hook that can handle a working load limit of 167 Lbs. / 76 Kgs. When the space between your vehicle and your anchor point is limited, the narrow form of Kinedyne's 1-inch U Hook reaches in to provide a reliable connection. This heat-treated carbon steel hook fits vehicle anchor points for quick securement and works with webbing and tensioning devices to hold cargo. The zinc-plated finish increases corrosion resistance for longer service life.

Technical Specifications

  • Working Load Limit: 167 Lbs. / 76 Kgs.
  • Size of Webbing Used With: 1 Inch
  • Overall Width: 1.38 Inches
  • Overall Height: 1.24 Inches
  • Overall Length: 2.61 Inches
  • Wire Thickness: 0.19 Inch
  • Width of Webbing Slot: 1 Inch
  • Width of Hook: 0.41 Inch
  • Hook Opening Width: 0.38 Inch
  • Weight: 0.07 Lbs. / 0.03 Kgs.

Common Applications

  • Truck and trailer load securement
  • Warehouse pallet and equipment tie-downs
  • Distribution and logistics transport restraint
  • Industrial and facility cargo handling
  • Maintenance and fleet securing tasks

Safety and Stability

The 1" U Hook is heat-treated carbon steel with a zinc-plated finish to resist corrosion. Use within the specified 167 lb / 76 kg working load limit and inspect hooks and webbing regularly for wear, deformation, or corrosion to maintain safe performance.

Key Benefits

  • Capacity: Rated 167 lb (76 kg) working load for light securement tasks
  • Durability: Heat-treated carbon steel construction with zinc plating
  • Mobility: Slim 1" width fits narrow anchor points for versatile placement
  • Efficiency: Quick-fit design enables faster tie-downs and reduced handling time
  • Safety: Defined load rating and corrosion protection support consistent restraint

Frequently Asked Questions

What webbing size is compatible with this hook?

The Kinedyne 1" U Hook is designed for use with 1-inch webbing and has a 1-inch webbing slot.

What is the working load limit and material?

The hook has a working load limit of 167 Lbs. / 76 Kgs and is made of heat-treated carbon steel with a zinc-plated finish.
