Description
xFor anyone who's moving large amounts of cargo and wants to experience reliable security, you need Kinedyne's Powder Coated Series E Vertical Logistic Track for your trailer. Once this Track is installed, you'll have anchor points wherever you need them.

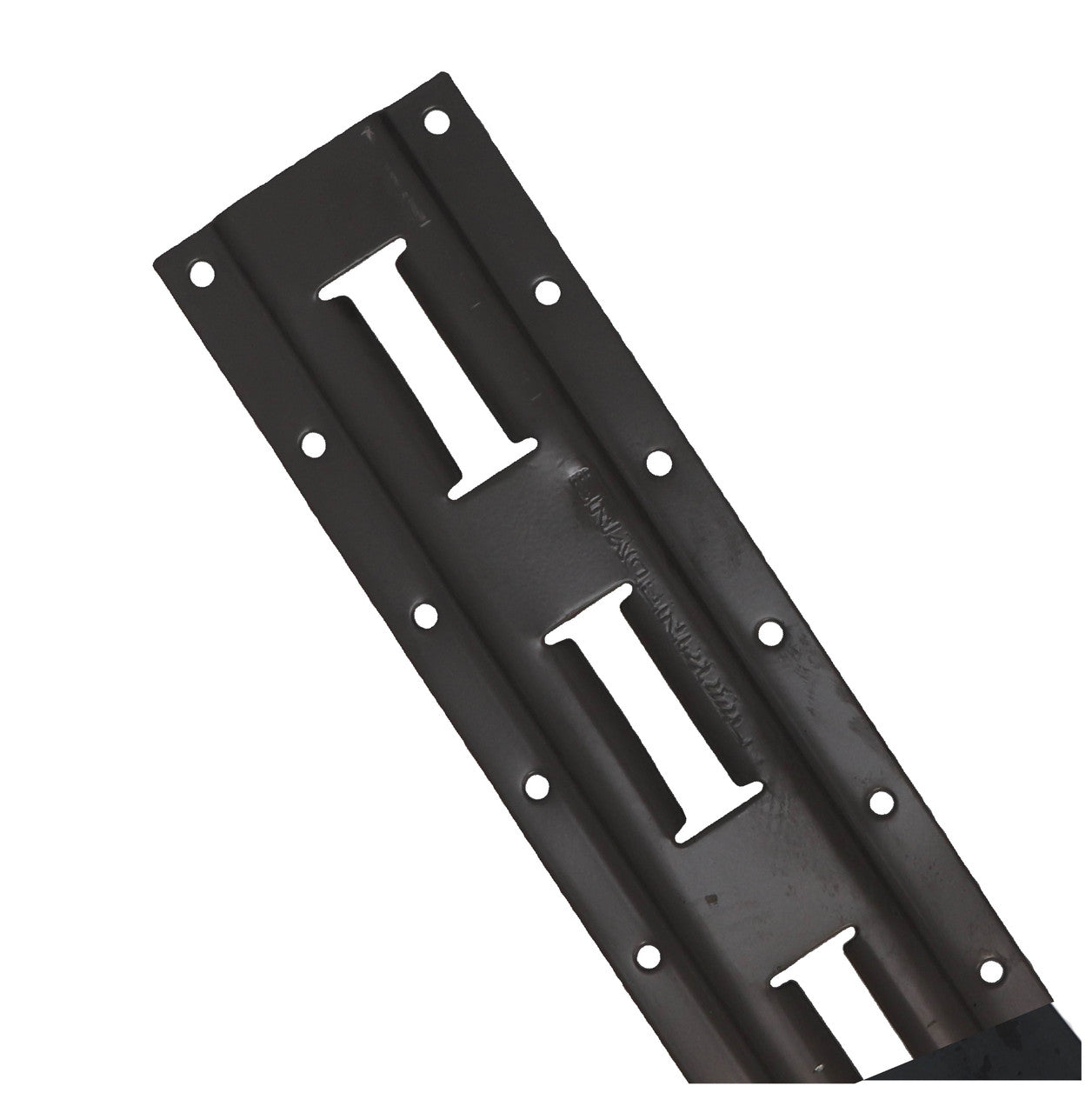

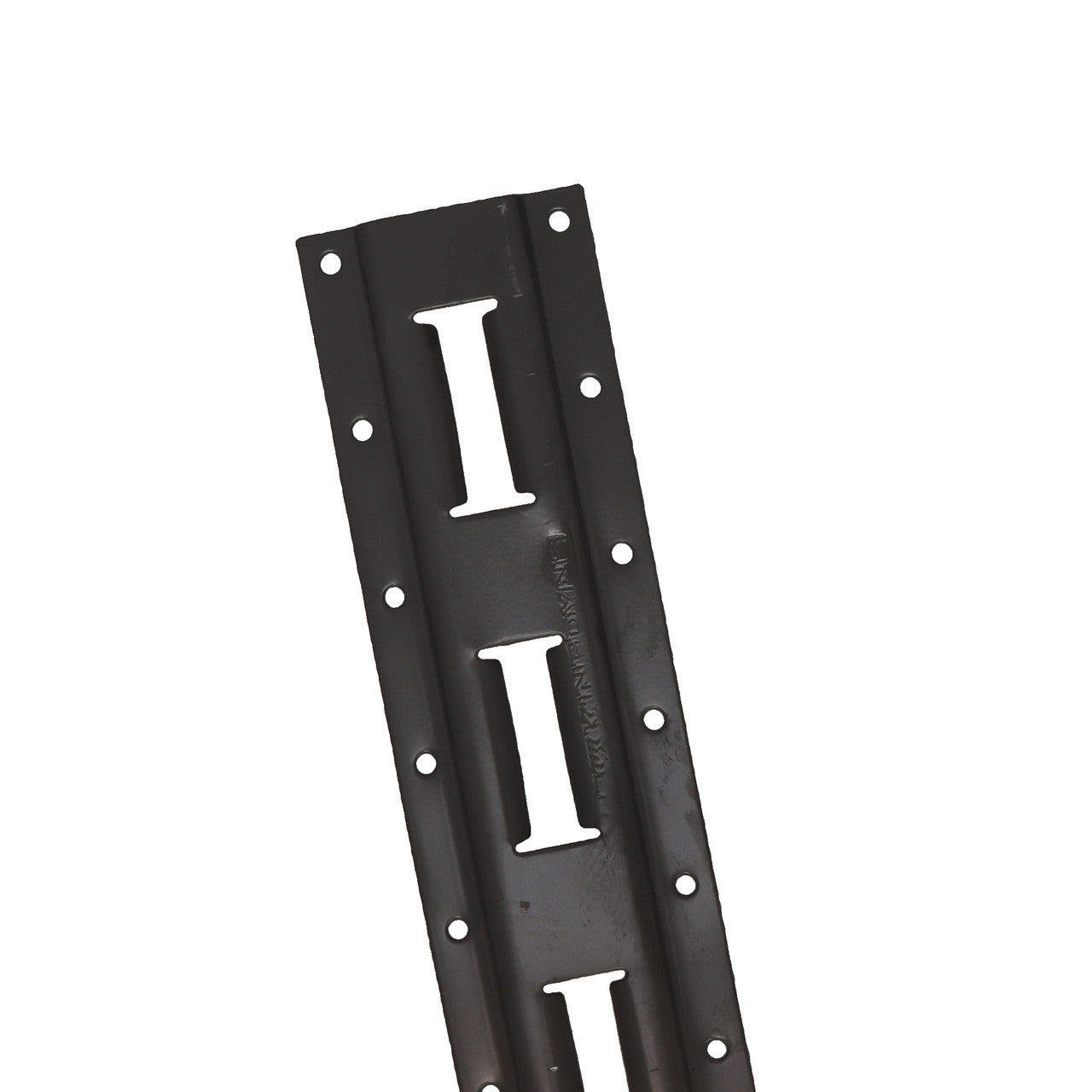

10-Foot Series E Powder Coated Vertical Logistic Track
You'll be able to experience the security of having multiple anchor points for your cargo securement job once you install Kinedyne's Powder Coated Series E Vertical Logistic Track. Measuring 10 feet, our Series E Vertical Logistic Track is constructed from high strength steel for extra strength. With our reliable Series E Track, you can attach your e-fittings to form your own custom tie down, attach your Logistic Straps to tighten down your load or attach your Decking/Shoring Beams to create an extra layer of support. With a Vertical Track such as this one, you can attach your anchor points that have D-Rings on them so that they will hang perpendicular to the floor for an easier tie down method.

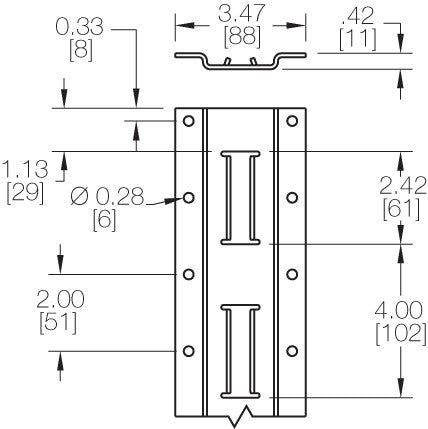

10' Series E Powder Coated Vertical Logistic Track ‚Äì 2019 Quick Specs:
- Series Type: Series E
- Width: 3.47 Inches
- Length: 10 Feet
- Height: 0.42 Inch
- Weight: 13.01 Lbs. / 5.90 Kgs.
- Gauge: 11
- Minimum Yield PSI: 50,000 PSI
Specifications
xKinedyne 10' Series E Powder Coated Vertical Logistic Track
For anyone moving large amounts of cargo and needing reliable security, the Kinedyne 10' Series E Powder Coated Vertical Logistic Track provides anchor points wherever required. Constructed from high-strength steel, the 10-foot Series E Track accepts e-fittings, logistic straps, decking/shoring beams and D-Ring anchor points for perpendicular hanging and efficient tie-downs.
Technical Specifications
- Series Type: Series E
- Width: 3.47 Inches
- Length: 10 Feet
- Height: 0.42 Inch
- Weight: 13.01 Lbs. / 5.90 Kgs.
- Gauge: 11
- Minimum Yield PSI: 50,000 PSI
Common Applications
- Trailer cargo securement in warehouse and distribution fleets
- Industrial freight transportation and logistics operations
- Facility and maintenance equipment for load restraint
- Supply chain and cross-dock transport vehicles
Safety and Stability
The Series E track is fabricated from high-strength steel and powder coated for corrosion resistance; when properly installed to vehicle structure it provides stable, repeatable anchor locations for certified fittings and straps to maintain load control during transport.
Key Benefits
- Durability: high-strength steel construction and protective powder coat
- Flexibility: multiple anchor points for custom tie-down configurations
- Efficiency: supports quick attachment of e-fittings, straps and beams
- Safety: enables perpendicular D-Ring orientation for consistent tie-down angles
- Compact profile: low height while maximizing usable attachment points
Frequently Asked Questions
What fittings are compatible with the Series E Vertical Logistic Track?
Standard e-fittings, D-Ring anchor fittings and decking/shoring beam attachments designed for Series E track are compatible.
What material and protective finish does the track have?
The track is made from high-strength steel with a powder coated finish for corrosion resistance.
