Description
xAttach and stay attached to your vehicle's anchor points when you use the versatile strength of Kinedyne's reliable 3" Narrow Wire Hook with an impressive working load limit of 7,000 Lbs. / 3,330 Kgs.

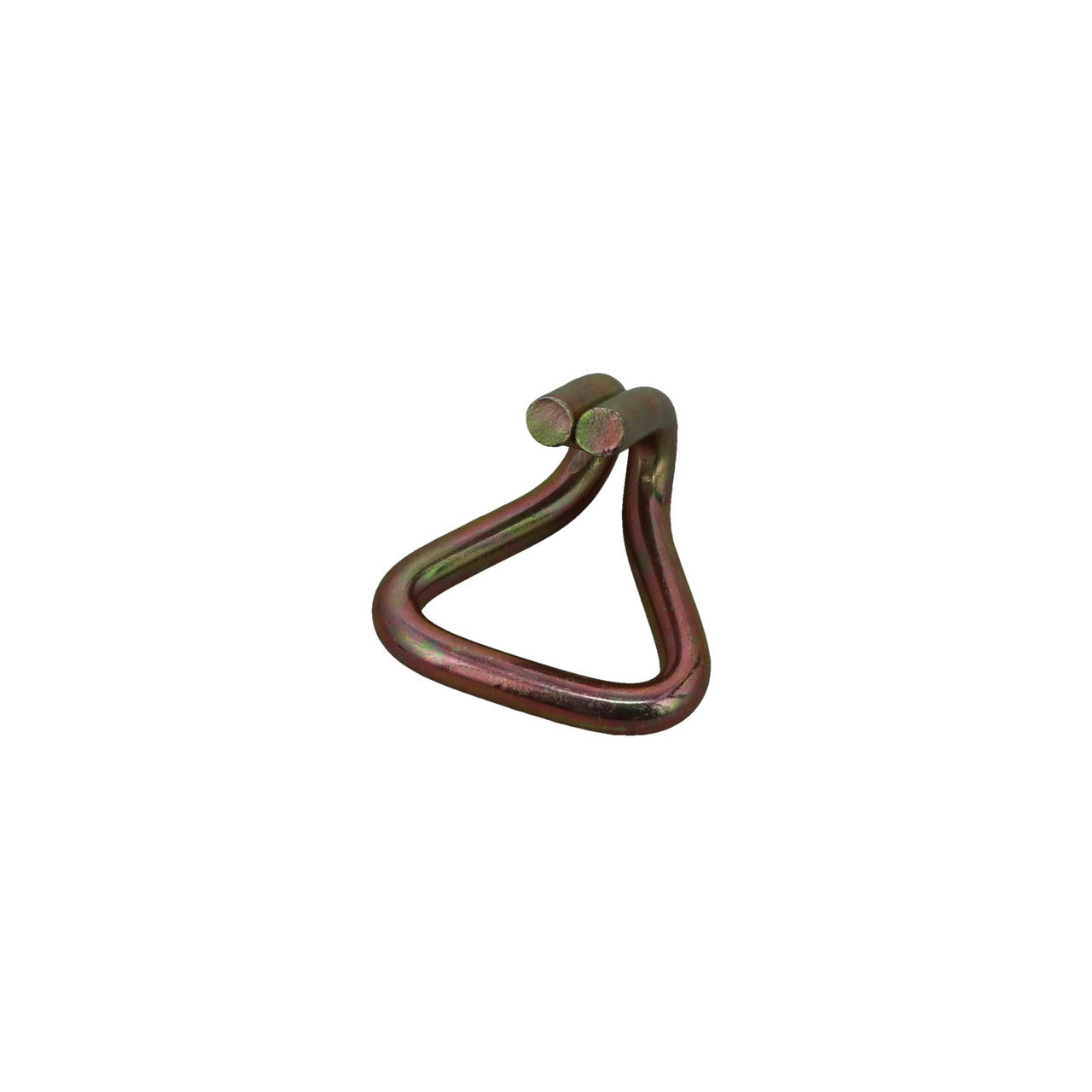

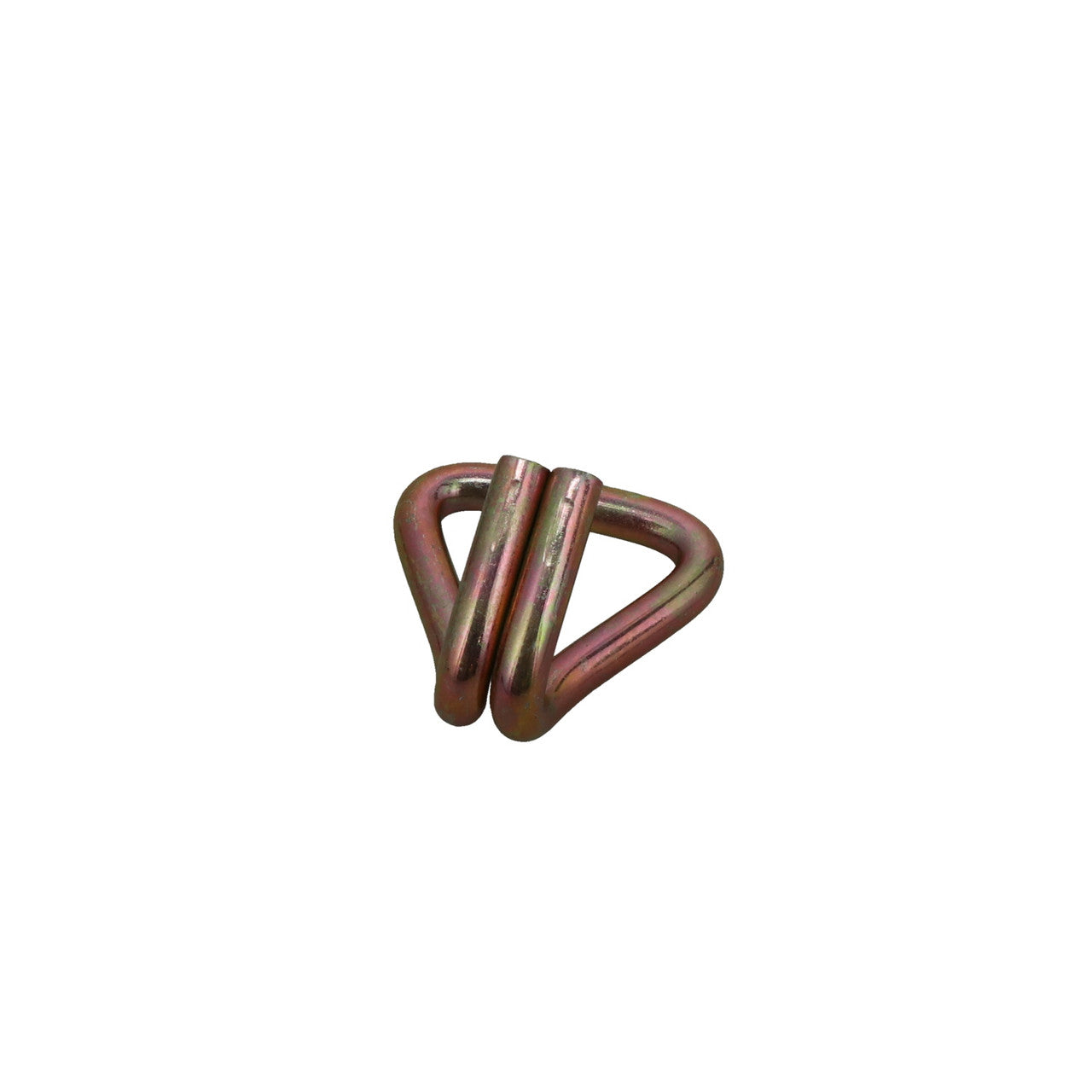

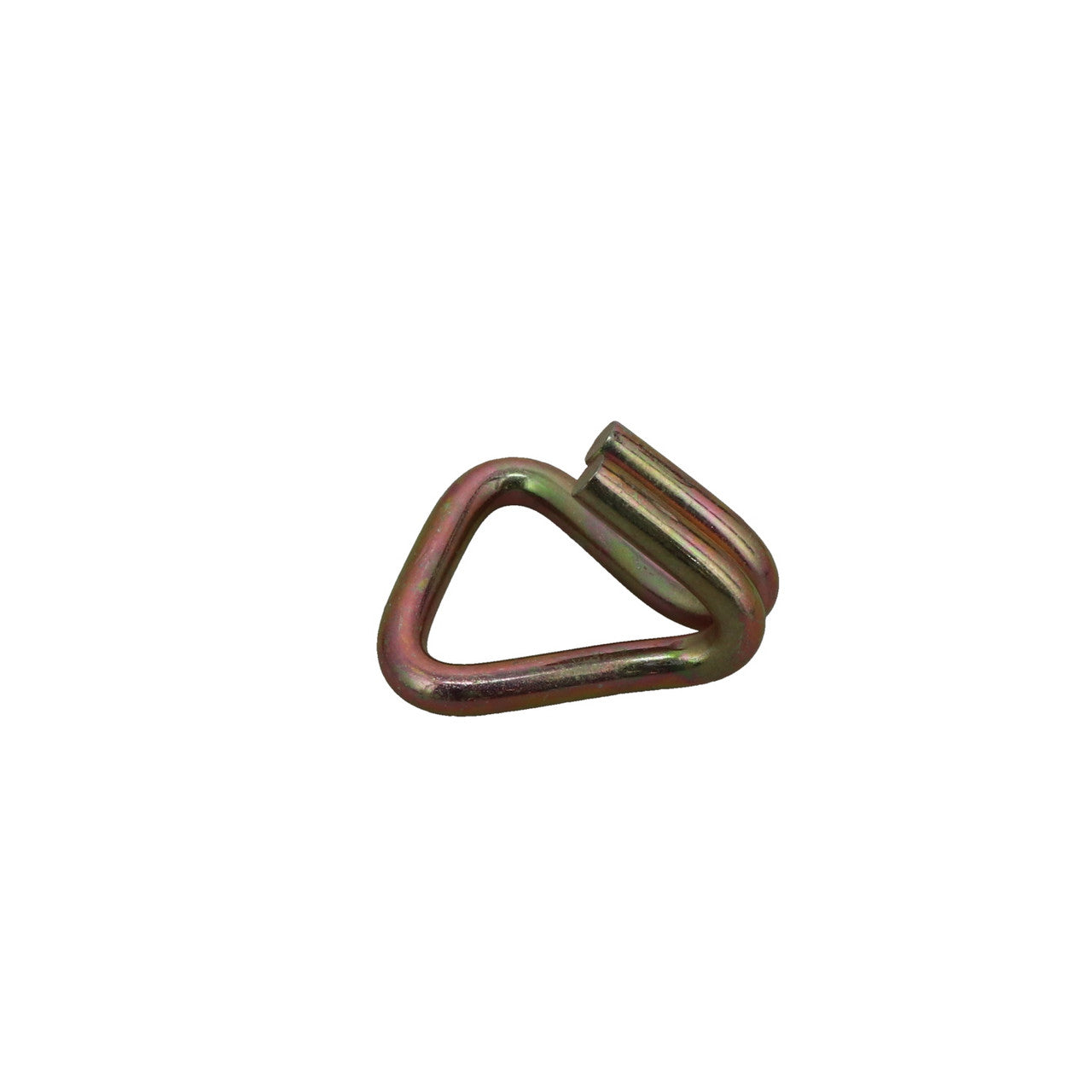

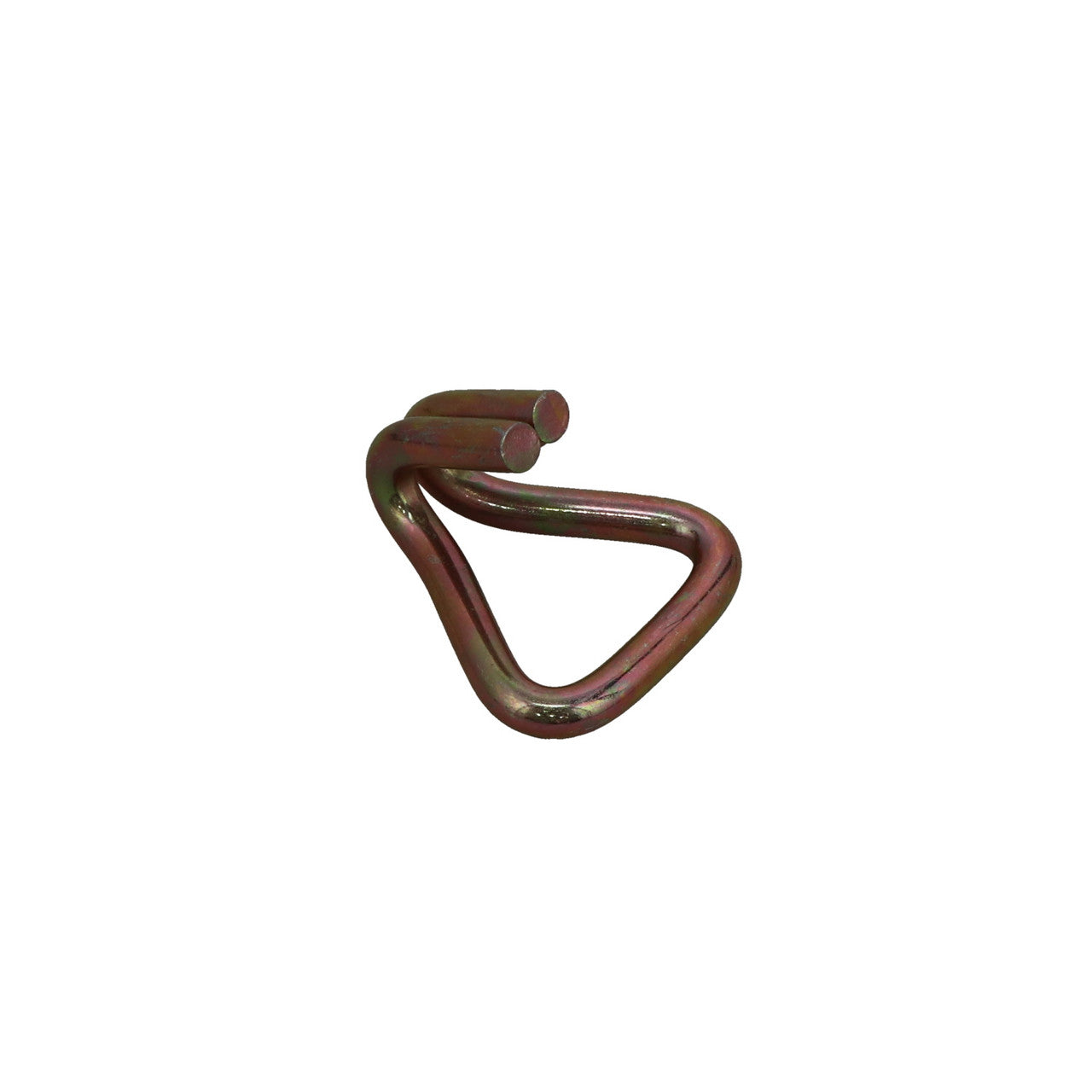

3-Inch Narrow Wire Hook
Designed to be both adaptable and strong, Kinedyne's 3-inch Narrow Wire Hook has a wide frame to accommodate the heavy-duty 3-inch wide Ratchet Straps and Winch Straps, making it the ideal end fitting for nearly any heavy-duty tie down job where strength is the primary factor. This is the kind of end fitting you want to use for those tough securement jobs thanks to its reliability and durability. Our Narrow Wire Hook is also versatile as it can slip onto your vehicle's anchor points no matter how hard they are to reach. This combination of strength and flexibility is definitely handy in the cargo control industry.

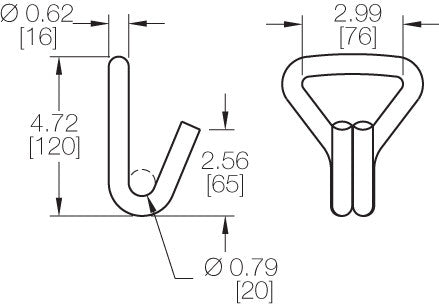

3" Narrow Wire Hook – 1016 Quick Specs:
- Working Load Limit: 7,000 Lbs. / 3,330 Kgs.
- Size of Webbing Used With: 3 Inches
- Overall Width: 4.23 Inches
- Overall Height: 2.8 Inches
- Overall Length: 4.72 Inches
- Wire Thickness: 0.62 Inch
- Width of Webbing Slot: 2.99 Inches
- Width of Hook: 1.24 Inches
- Hook Opening Width: 0.79 Inch
- Weight: 1.4 Lbs. / 0.6 Kgs.
Specifications
xKinedyne 3" Narrow Wire Hook
Attach and stay attached to your vehicle's anchor points when you use the versatile strength of Kinedyne's reliable 3" Narrow Wire Hook with an impressive working load limit of 7,000 Lbs. / 3,330 Kgs.
Designed to be both adaptable and strong, the 3-inch Narrow Wire Hook has a wide frame to accommodate heavy-duty 3-inch wide ratchet and winch straps. It is suitable as an end fitting for heavy-duty tie-down jobs where strength and reliable securement are required. The narrow wire profile allows the hook to slip onto vehicle anchor points that are hard to reach, offering a balance of strength and flexibility for cargo control applications.
Technical Specifications
- Working Load Limit: 7,000 Lbs. / 3,330 Kgs.
- Size of Webbing Used With: 3 Inches
- Overall Width: 4.23 Inches
- Overall Height: 2.8 Inches
- Overall Length: 4.72 Inches
- Wire Thickness: 0.62 Inch
- Width of Webbing Slot: 2.99 Inches
- Width of Hook: 1.24 Inches
- Hook Opening Width: 0.79 Inch
- Weight: 1.4 Lbs. / 0.6 Kgs.
Common Applications
- Securing heavy cargo on transport trailers and flatbeds
- Use with 3" ratchet straps and winch straps for freight transport
- Warehouse and distribution load securement
- Industrial and facility equipment relocation
- Maintenance and fleet securement operations
Safety and Stability
Use the hook within its 7,000 lb (3,330 kg) working load limit and inspect for wear, deformation, or corrosion before each use. Ensure compatible 3" webbing and proper attachment to rated anchor points to maintain safe securement.
Key Benefits
- High capacity: 7,000 lb working load limit for heavy-duty loads
- Durable construction for long service life in demanding environments
- Compatible with 3" webbing for broad use with standard ratchet and winch straps
- Compact narrow wire design improves access to tight anchor points
- Improves operational efficiency by simplifying end fitting attachment
Frequently Asked Questions
What webbing size is this hook designed for?
The Kinedyne 3" Narrow Wire Hook is designed for use with 3-inch webbing, including 3" ratchet and winch straps.
What is the working load limit?
The working load limit is 7,000 Lbs. (3,330 Kgs.). Do not exceed this limit; follow industry safe use practices.
Ordering and Shipping
To purchase or receive a quote for the Kinedyne 3" Narrow Wire Hook, contact Material Handling Canada. Visit materialhandlingcanada.com or reach out to our sales team for inventory, lead times, and shipping options tailored to your fleet or facility needs.
