Description
xWhen you need to secure the extra-rough type of loads, Kinedyne's 5/16" x 30' Wire Rope with Chain Assembly with a working load limit of 3,000 Lbs. / 1,360 Kgs. has the durability you need.

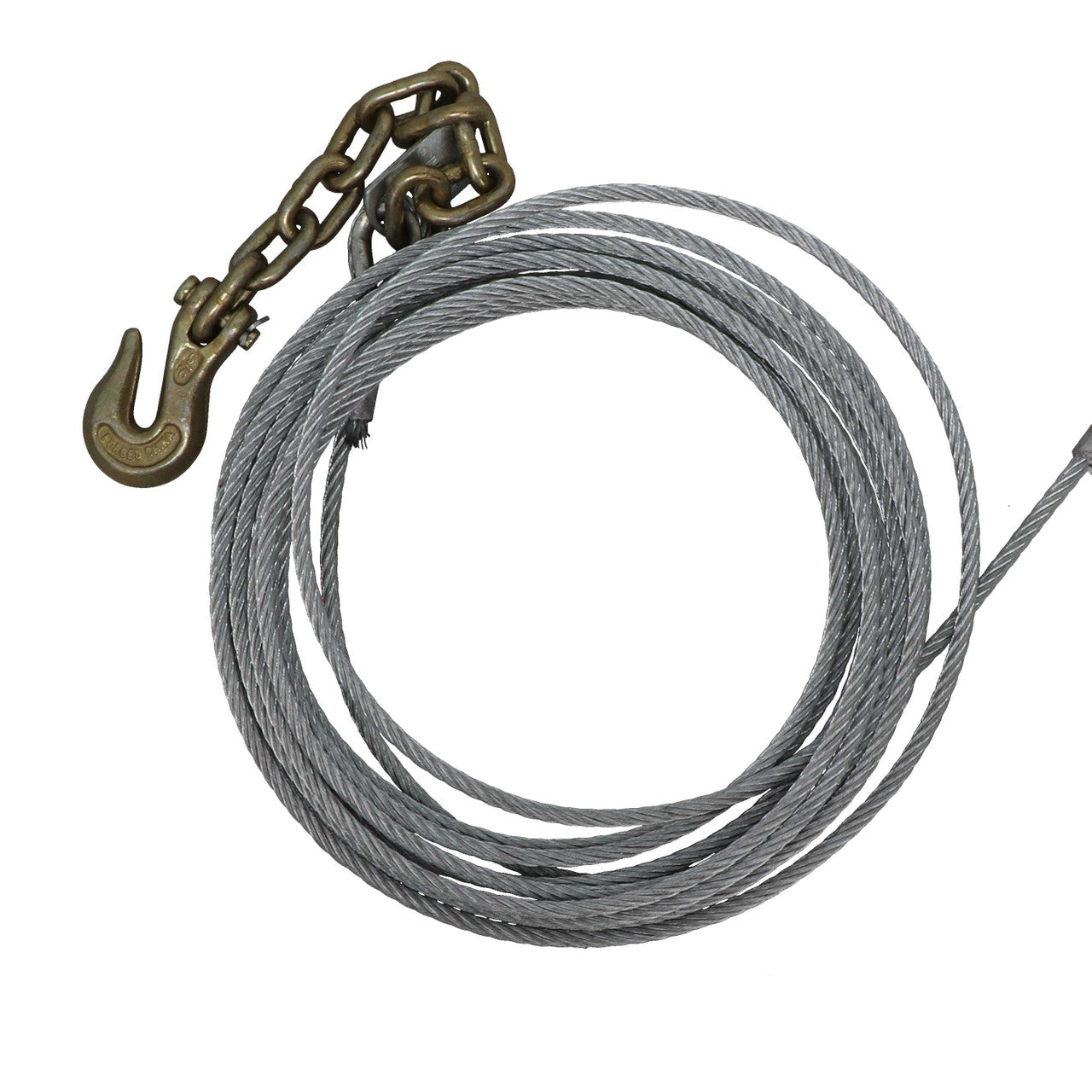

5/16-Inch x 30-Foot Wire Rope Chain Assembly
Stone. Brick. Timber. Concrete. These types of rougher materials are nothing when faced with the durability of Kinedyne's 5/16-inch x 30-foot Wire Rope with Chain Assembly that can handle a working load limit of 3,000 Lbs. / 1,360 Kgs. Made from high-quality Air Craft Grade wire rope with Grade 70 chain and Clevis Grab Hook, this extra-durable Wire Rope with Chain Assembly is engineered to be lightweight but more than strong enough to handle the tougher tie down jobs. When straps just won't cut it without being cut, our Wire Rope with Chain Assembly is here to get the job done.
5/16" by 30' Wire Rope Chain Assembly – 15496 Quick Specs:
- Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
- Diameter of Cable: 5/16 Inch
- Overall Length: 30 Feet
- Weight of Assembly: 6.71 Lbs. / 3.04 Kgs.
- Type of Cable: Air Craft Grade
- Type of Hook: Clevis Grab
- Size of Hook: 5/16 Inch
- Grade of Chain: 70
- Size of Chain: 5/16 Inch
Specifications
xKinedyne 5/16" by 30' Wire Rope Chain Assembly
When you need to secure the extra-rough type of loads, Kinedyne's 5/16" x 30' Wire Rope with Chain Assembly with a working load limit of 3,000 Lbs. / 1,360 Kgs. has the durability you need.
Stone, brick, timber and concrete are nothing when faced with the durability of Kinedyne's 5/16-inch x 30-foot Wire Rope with Chain Assembly. Made from high-quality Air Craft Grade wire rope with Grade 70 chain and a Clevis Grab Hook, this extra-durable assembly is engineered to be lightweight yet strong enough for tougher tie-down jobs where straps may fail.
Technical Specifications
- Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
- Diameter of Cable: 5/16 Inch
- Overall Length: 30 Feet
- Weight of Assembly: 6.71 Lbs. / 3.04 Kgs.
- Type of Cable: Air Craft Grade
- Type of Hook: Clevis Grab
- Size of Hook: 5/16 Inch
- Grade of Chain: 70
- Size of Chain: 5/16 Inch
Common Applications
- Securing industrial loads such as stone, brick, timber and concrete
- Use in warehouse load restraint and staging
- Distribution fleet tie-downs for heavy, abrasive cargo
- Facility maintenance and rigging tasks requiring high abrasion resistance
- Construction and landscaping material transport
Safety and Stability
Designed and rated for a 3,000 lb (1,360 kg) working load limit, this assembly uses Grade 70 chain and an aircraft-grade cable to provide consistent strength and abrasion resistance. Inspect before each use and replace components showing wear, deformation or corrosion to maintain rated capacity.
Key Benefits
- High capacity: 3,000 lb working load limit for heavy-duty restraint
- Durability: aircraft-grade wire rope and Grade 70 chain resist abrasion and cutting
- Reliability: clevis grab hook provides positive engagement and load security
- Efficiency: ready-made assembly reduces rigging time compared to assembling components in the field
- Safety: engineered components and clear WLL support regulatory and site safety requirements
Frequently Asked Questions
What is the working load limit?
The working load limit is 3,000 Lbs. (1,360 Kgs.).
What materials make up the assembly?
The assembly uses aircraft-grade wire rope, Grade 70 chain and a clevis grab hook sized 5/16".
