Description
xAt Kinedyne, versatility is our middle name. Do you have a trailer equipped with a Series F 1-Inch Hole Logistic Track, but don't have the strap with the proper end fitting? No worries! By combining our 6" Rope Tie-Off for Series F 1" Hole Logistic Track to your straps, you create a strong hold over your cargo.

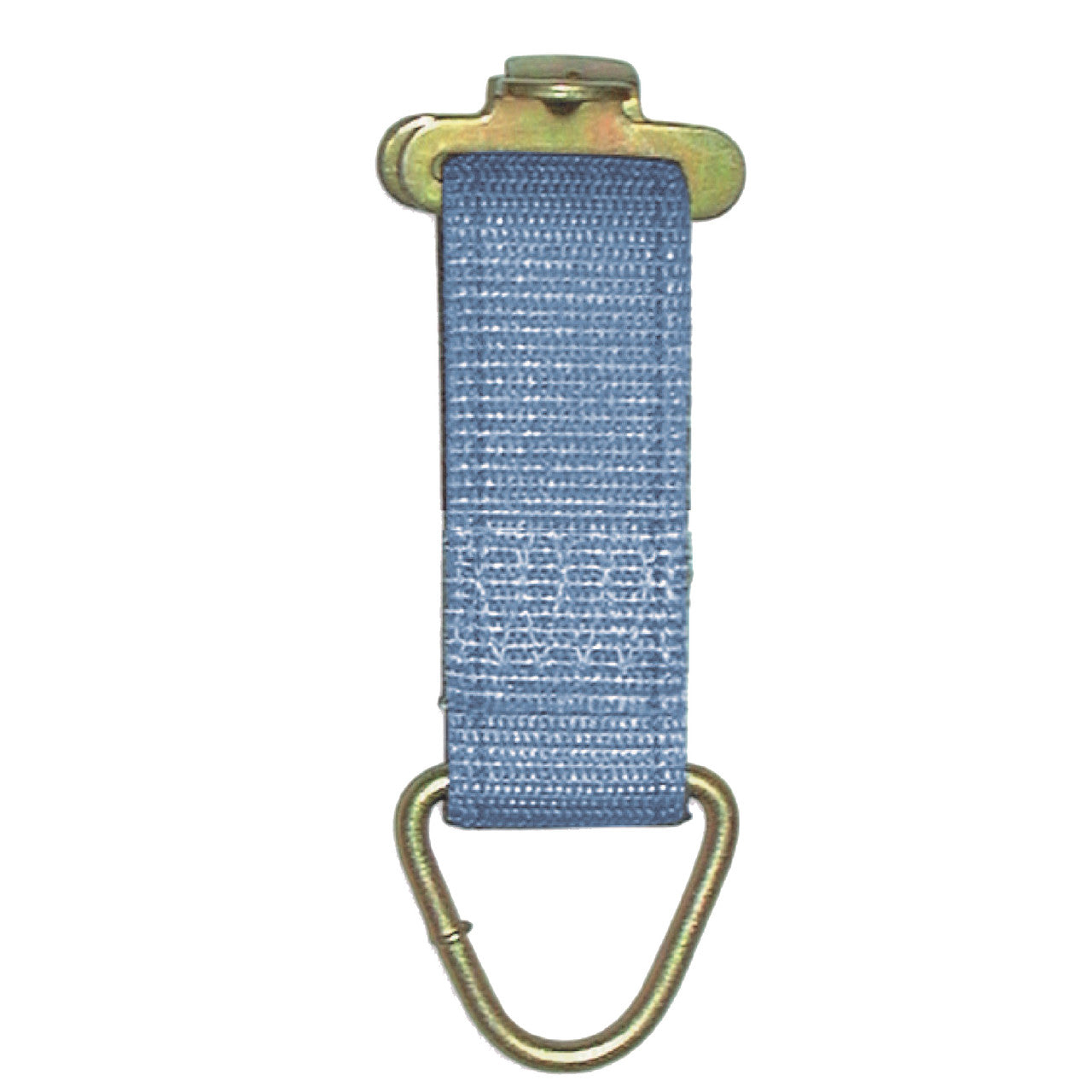

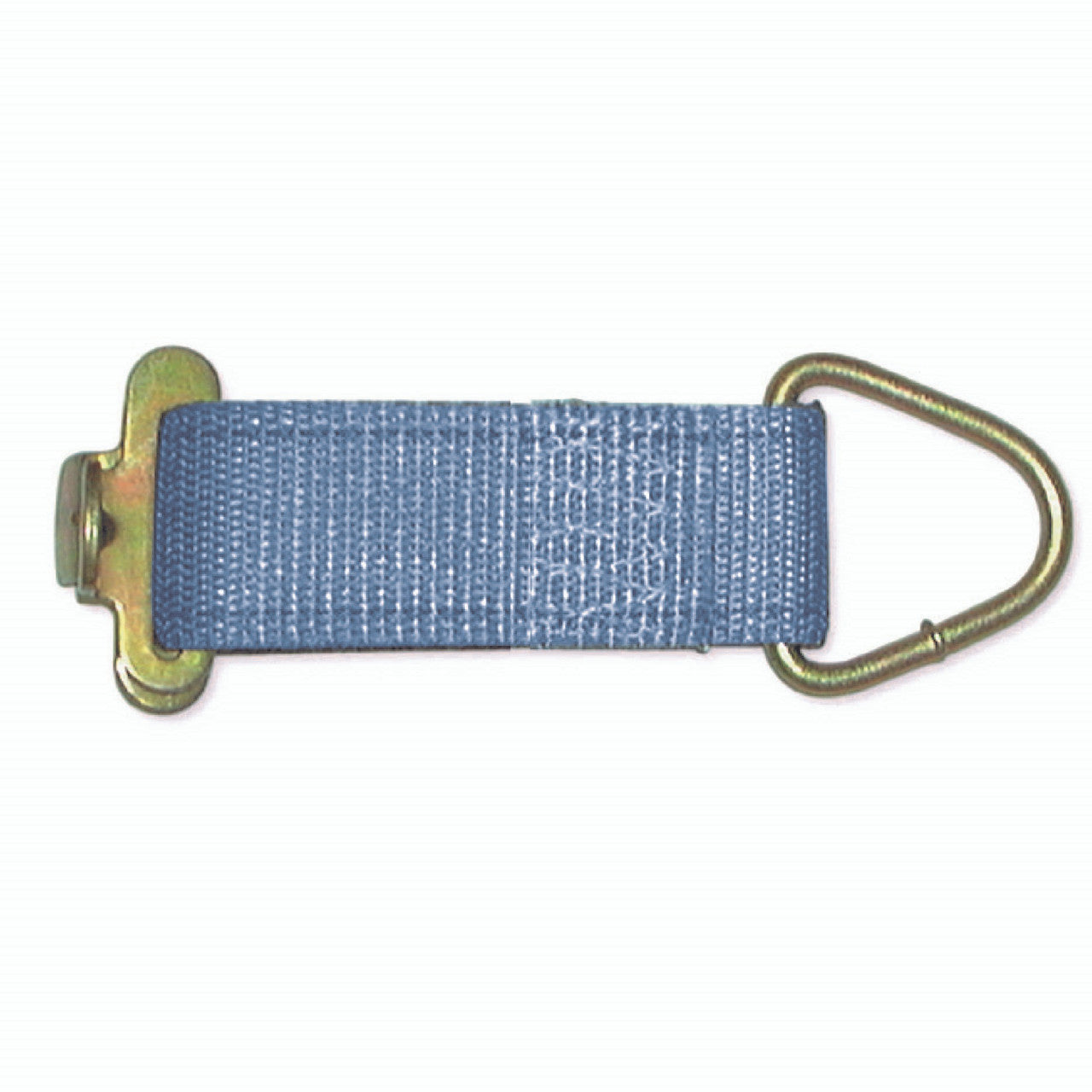

6-Inch Series F 1-Inch Hole Butterfly Rope Tie-Off
For a strong and reliable connection, you'll want to use the strength of our Series F 1-Inch Hole 6-Inch Rope Tie-Off with Butterfly Fitting for your next tie down job. This Rope Tie-Off is equipped with all the necessary hardware you need for a strong connection between the Series F Track and the tie down strap of your choice.
To help you with your tie down job, our Rope Tie-Off is constructed from high-quality materials. The Kinedyne grey 4900G polyester webbing offers a strong grip. The heat-treated carbon steel Kinedyne C1831 Series F 1" Hole Track Butterfly Fitting easily and smoothly glides into the Series F Track while the Kinedyne 1027 D-Ring can be used as a strong and reliable anchor for your tie down strap's end fitting.
We've tagged all of our Rope Tie-Offs with the working load limit and the Kinedyne name and logo in compliance with North American Cargo Securement standards.
6" Series F 1" Hole Butterfly Rope Tie-Off – 660018 Quick Specs:
- Series Type: Series F Canada
- Working Load Limit: 670 Lbs. / 305 Kgs.
- Width: 2 Inches
- Length: 6 Inches
- Weight: 0.3 Lbs. / 0.1 Kgs.
- Webbing: Kinedyne Grey 4900G Webbing
- Logistic Hardware End Fitting: Kinedyne C1831 Series F 1" Hole Track Butterfly Fitting
- D-Ring End Fitting: Kinedyne 1027 D-Ring
Specifications
xKinedyne 6" Series F 1" Hole Butterfly Rope Tie-Off
At Kinedyne, versatility is our middle name. For trailers equipped with a Series F 1-Inch Hole Logistic Track, the 6" Rope Tie-Off with Butterfly Fitting creates a strong hold over cargo when combined with compatible straps. Constructed from Kinedyne grey 4900G polyester webbing with a heat-treated carbon steel C1831 Series F 1" Hole Track Butterfly Fitting and a Kinedyne 1027 D-Ring, this assembly provides a reliable anchor and smooth engagement with Series F track. All rope tie-offs are tagged with the working load limit and Kinedyne identification to comply with North American cargo securement standards.
Technical Specifications
- Series Type: Series F Canada
- Working Load Limit: 670 Lbs. / 305 Kgs.
- Width: 2 Inches
- Length: 6 Inches
- Weight: 0.3 Lbs. / 0.1 Kgs.
- Webbing: Kinedyne Grey 4900G Webbing
- Logistic Hardware End Fitting: Kinedyne C1831 Series F 1" Hole Track Butterfly Fitting
- D-Ring End Fitting: Kinedyne 1027 D-Ring
Common Applications
- Securing cargo in dry van and refrigerated trailers with Series F track
- Warehouse load restraint and container staging
- Distribution center transport and handling
- Industrial and facility material movement
- Maintenance and fleet securement operations
Safety and Stability
The assembly is tagged with its working load limit and manufacturer identification per North American cargo securement standards. Use within the rated WLL and inspect fittings and webbing for wear before each use to maintain safe, stable cargo restraint.
Key Benefits
- Capacity: 670 lb (305 kg) working load limit for predictable restraint capacity
- Durability: heat-treated carbon steel fitting and quality polyester webbing for long service life
- Compatibility: butterfly fitting designed to glide into Series F 1" hole logistic track
- Efficiency: quick engagement with track and simple D-ring anchor for rapid installation
- Traceability: product tagging with WLL and Kinedyne identification for compliance
Frequently Asked Questions
Is this tie-off compatible with Series F 1" hole logistic track?
Yes. The C1831 butterfly fitting is designed specifically for Series F 1" hole track and engages smoothly.
What is the working load limit and how is it labeled?
The working load limit is 670 lbs (305 kgs) and the tie-off is tagged with the WLL and Kinedyne identification in compliance with North American standards.
