Description

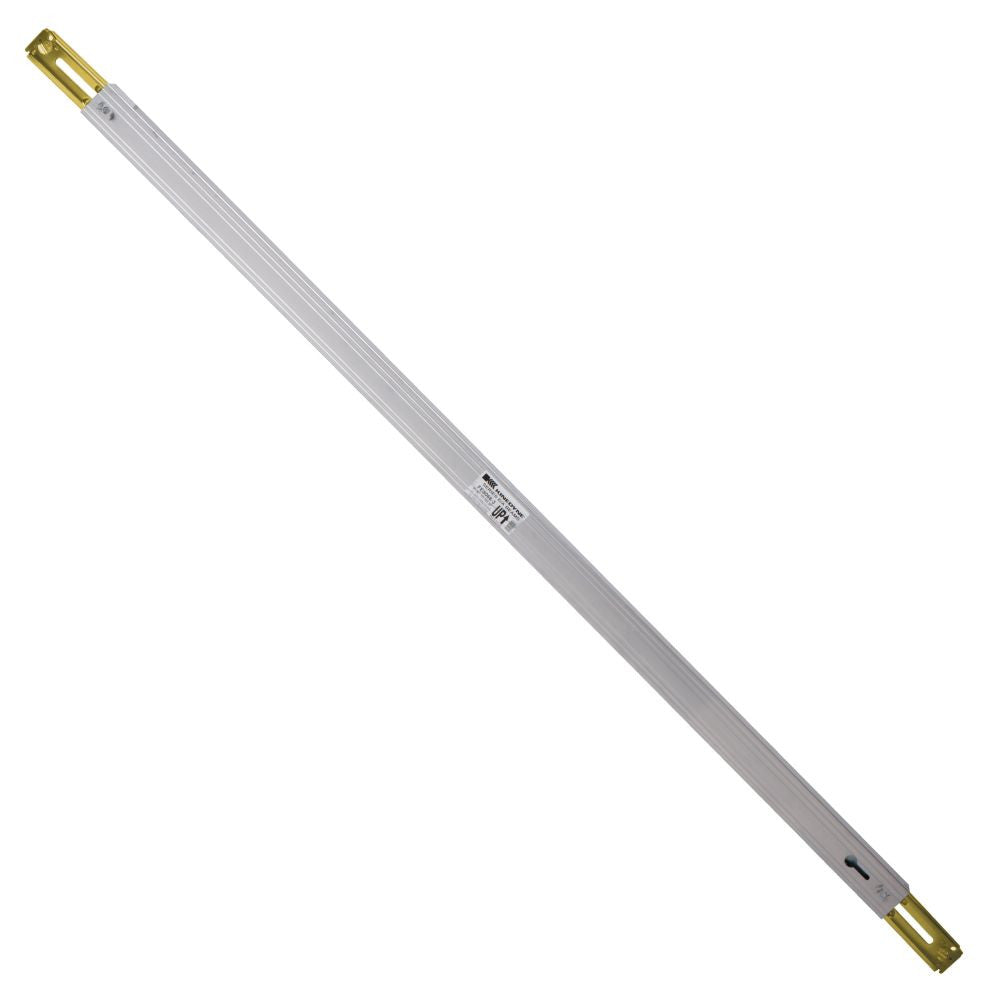

xHere at Kinedyne, we've designed our Series E or A Aluminum Decking/Shoring Beam with KwikLatch Release Tab, adjusts from 84.6" to 95", to give you maximum strength with minimum weight. This Decking/Shoring Beam can handle a decking working load limit of 2,200 Lbs. / 1,000 Kgs. and a shoring working load limit of 2,000 Lbs. / 910 Kgs.
84-Inch to 95-Inch Series E or A Aluminum Deck/Shoring Beam
A quick and easy way to keep your trailer organized, Kinedyne's Series E or A Aluminum Decking/Shoring Beams can adjust from 84.6 inches to 95 inches, making it a good choice for your trailer. Keep your cargo separated and secure against this sturdy Beam.
What makes our Decking/Shoring Beam stand out among the rest is our unique KwikLatch Release Tab. Standard beams use a tab style button to release the beam from the track. This button extends past the top surface of the beam, making it prone to damage and difficult to engage while wearing gloves or while it's in an elevated position.
Our KwikLatch Release Tab is Kinedyne's solution to those problems. Our ergonomic finger tab is located on both sides of the beam head, making it less prone to damage and much easier to reach for releasing the beam, even if you're wearing gloves.

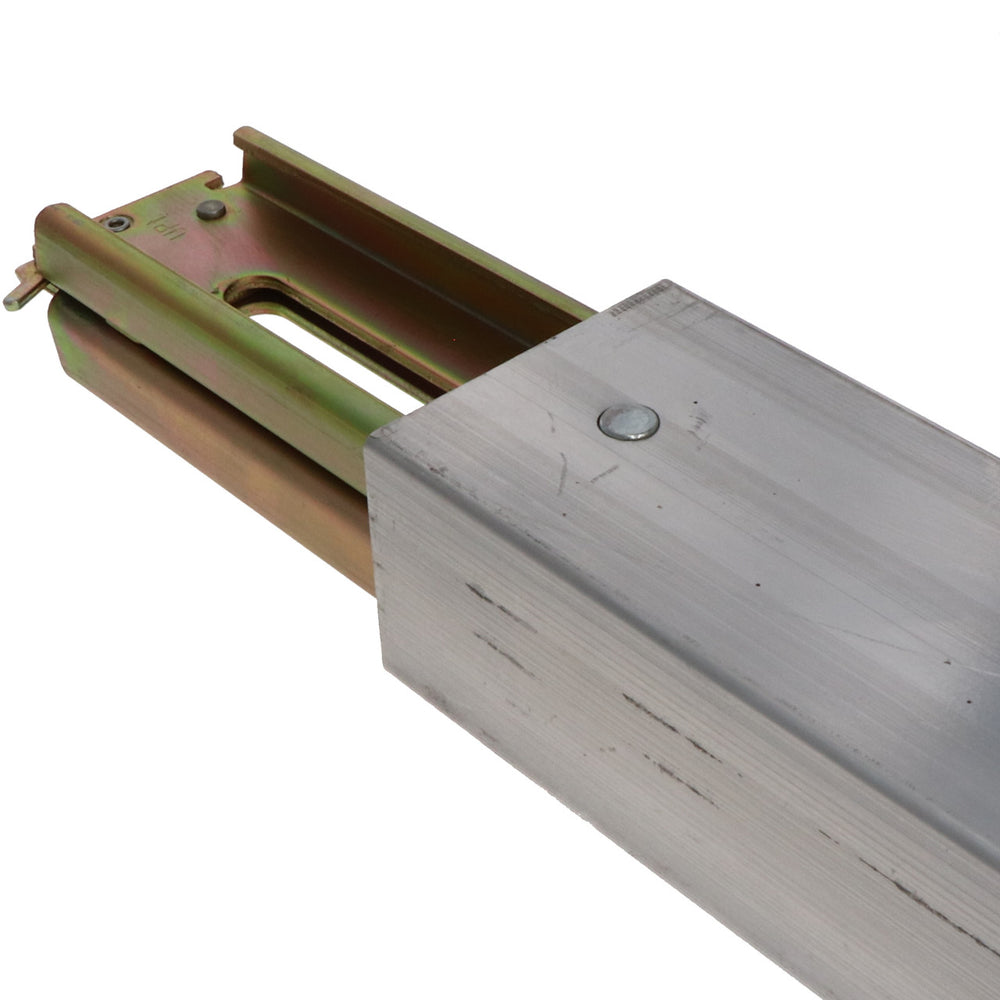

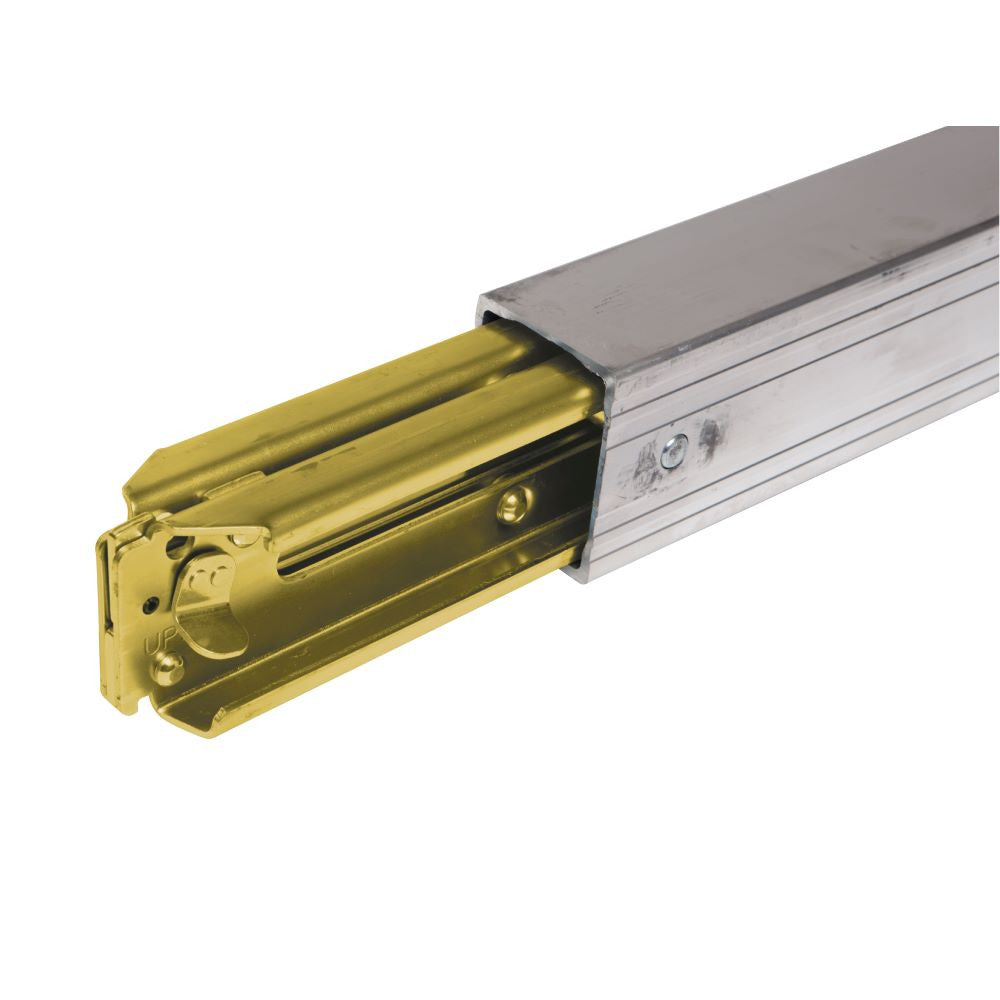

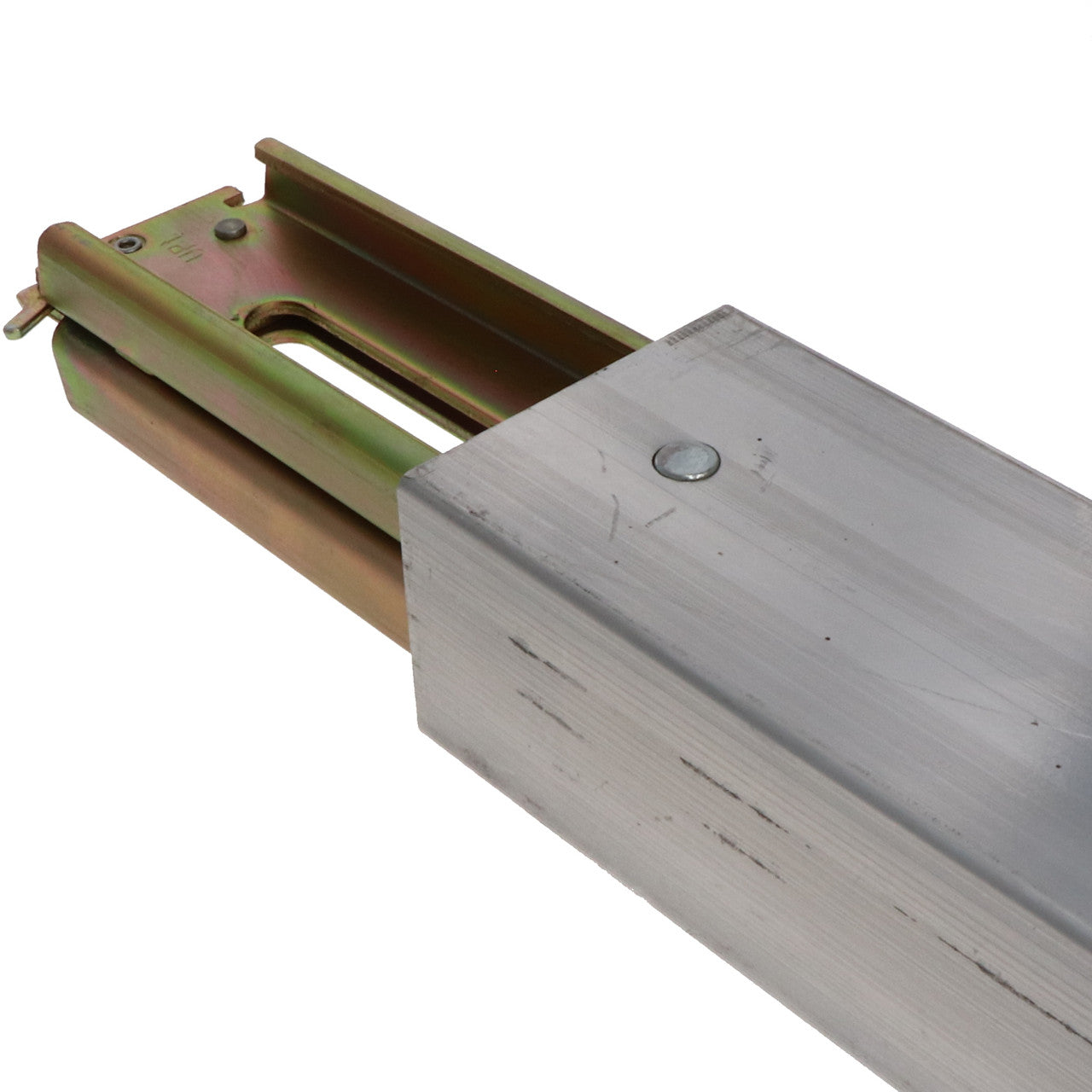

Our Series E or A Decking/Shoring Beam are made from extruded high strength aluminum in order to provide you with maximum strength at minimum weight. The head assembly is built tough from hardened steel with a zinc plated finish so that it can keep a firm hold with the Series E or A Track.
84" - 95" Series E or A Aluminum Decking/Shoring Beam – FE8066-1 Quick Specs:
- For Trailer Size (Wide): 96 Inch Wide Trailers
- Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A
- Width: 2.57 Inches
- Height: 3.22 Inches
- Minimum Length: 84.6 Inches
- Maximum Length: 95 Inches
- Weight: 19.5 Lbs. / 8.8 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Specifications
xKinedyne 84" - 95" Series E or A Aluminum Decking/Shoring Beam
Here at Kinedyne, we've designed our Series E or A Aluminum Decking/Shoring Beam with KwikLatch Release Tab, adjusts from 84.6" to 95", to give you maximum strength with minimum weight. This Decking/Shoring Beam can handle a decking working load limit of 2,200 Lbs. / 1,000 Kgs. and a shoring working load limit of 2,000 Lbs. / 910 Kgs.
A quick and easy way to keep your trailer organized, Kinedyne's Series E or A Aluminum Decking/Shoring Beams adjust from 84.6 inches to 95 inches, making it a good choice for 96 inch wide trailers. Keep cargo separated and secure using the ergonomic KwikLatch Release Tab located on both sides of the beam head for easier release when wearing gloves. The beams are extruded from high strength aluminum for maximum strength at minimum weight; the head assembly is hardened steel with a zinc plated finish for reliable engagement with Series E or A Track.
Technical Specifications
- For Trailer Size (Wide): 96 Inch Wide Trailers
- Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A
- Width: 2.57 Inches
- Height: 3.22 Inches
- Minimum Length: 84.6 Inches
- Maximum Length: 95 Inches
- Weight: 19.5 Lbs. / 8.8 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Common Applications
- Decking and shoring in 96" wide trailers for freight transport
- Load separation and lateral restraint in distribution and warehouse trailers
- Industrial logistics operations requiring adjustable load barriers
- Facility and maintenance use for organizing cargo during transport
Safety and Stability
The extruded high strength aluminum beam combined with a hardened steel, zinc-plated head assembly provides dependable engagement with Series E or A Track. Use within stated decking and shoring working load limits to maintain safety and stability.
Key Benefits
- Capacity: 2,200 lb decking and 2,000 lb shoring working load limits for robust load control
- Durability: hardened steel head assembly with zinc plating for corrosion resistance and reliable hold
- Efficiency: adjustable 84.6" to 95" length covers common trailer widths without modification
- Ergonomics: KwikLatch Release Tab on both sides for easier operation, even with gloves
- Weight savings: extruded aluminum construction minimizes added weight while maintaining strength
Frequently Asked Questions
What is the adjustable length range?
The beam adjusts from a minimum length of 84.6 inches to a maximum length of 95 inches.
What are the working load limits?
Decking working load limit is 2,200 Lbs. / 1,000 Kgs.; shoring working load limit is 2,000 Lbs. / 910 Kgs.
