Description
xEngineered for strength and designed for durability, Kinedyne's Heavy-Duty Series E or A Aluminum Decking/Shoring Beam with Kinedyne's KwikLatch Release Tab that adjusts from 91.9" to 102.3" is ideal for your trailer. Keep a good, strong hold over your cargo with this Beam.

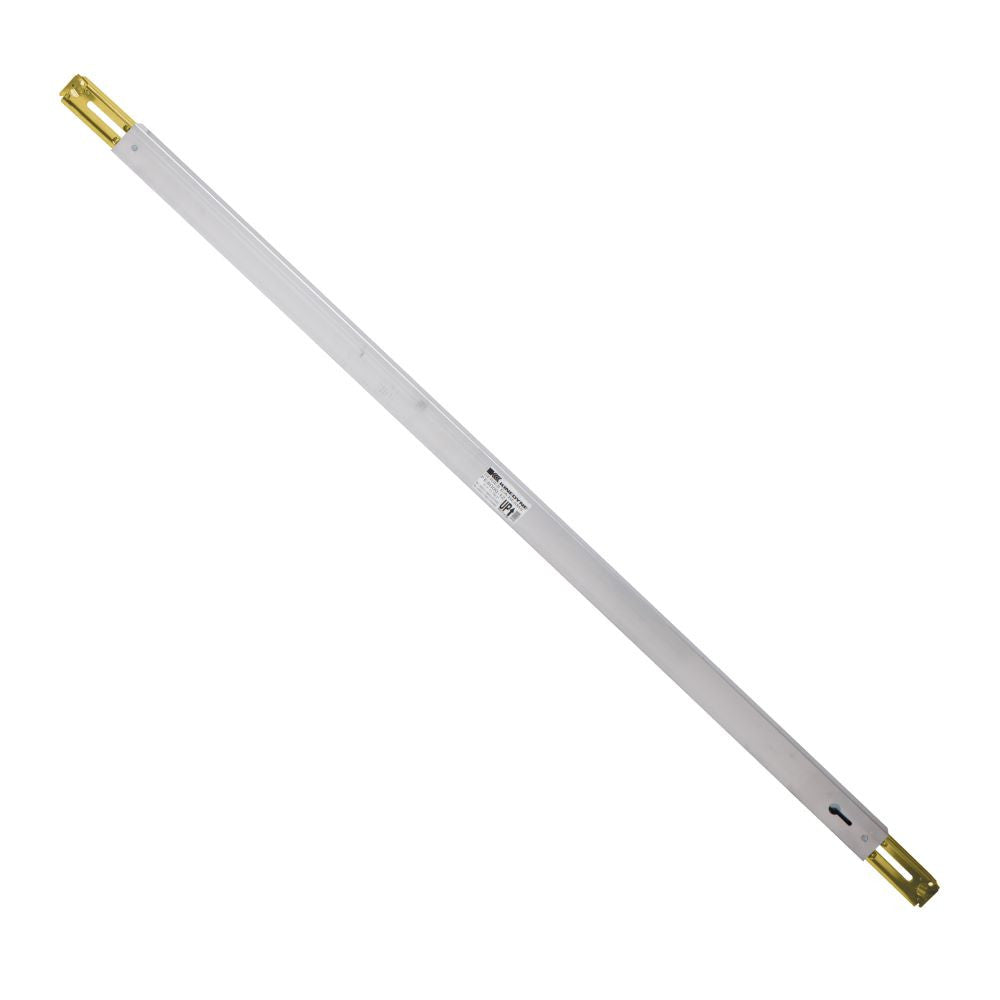

91-Inch to 102-Inch Heavy-Duty E or A Aluminum Deck/Shoring Beam
Engineered with the user in mind, Kinedyne's Heavy-Duty Series E or A Aluminum Decking/Shoring Beam is the cost-effective way to maximize your trailer capacity while reducing potential cargo damages. Manufactured from extruded high strength aluminum, our Decking/Shoring Beam is designed to keep your many heavy-duty items securely in place in the back of your trailer.
Built tough to take abuse while protecting your cargo, our Decking/Shoring Beam is simple to operate. All you need to do is position your load to where you want it, then insert the hardened steel zinc plated head assembly into the Series E or A Track with just a simple push. Once engaged, this Beam can adjust from 91.9 inches to 102.3 inches and can be used for shoring with a working load limit of 2,500 Lbs. / 1,135 Kgs. as it works to prevent your cargo from shifting during the move. The Beam also lets you double deck with a decking working load limit of 3,000 Lbs. / 1,360 Kgs. so you can get optimal usage out of your trailer space.

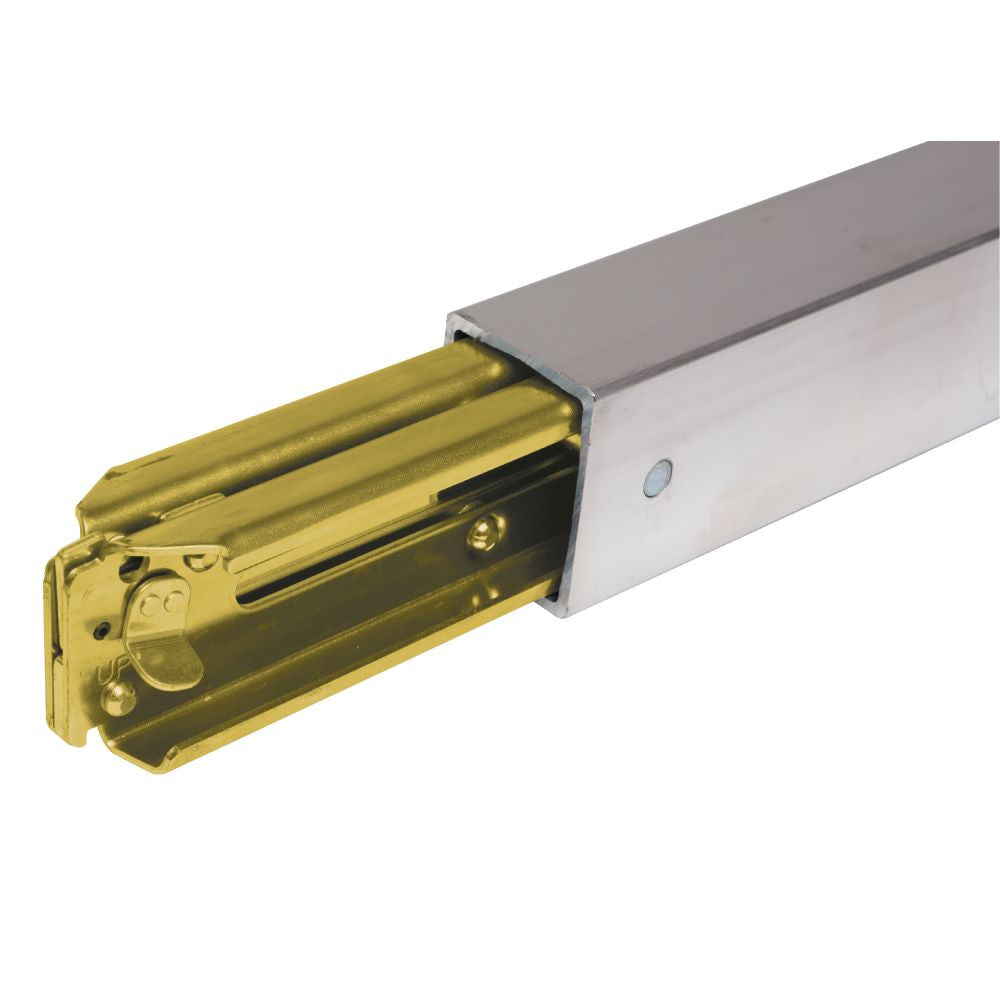

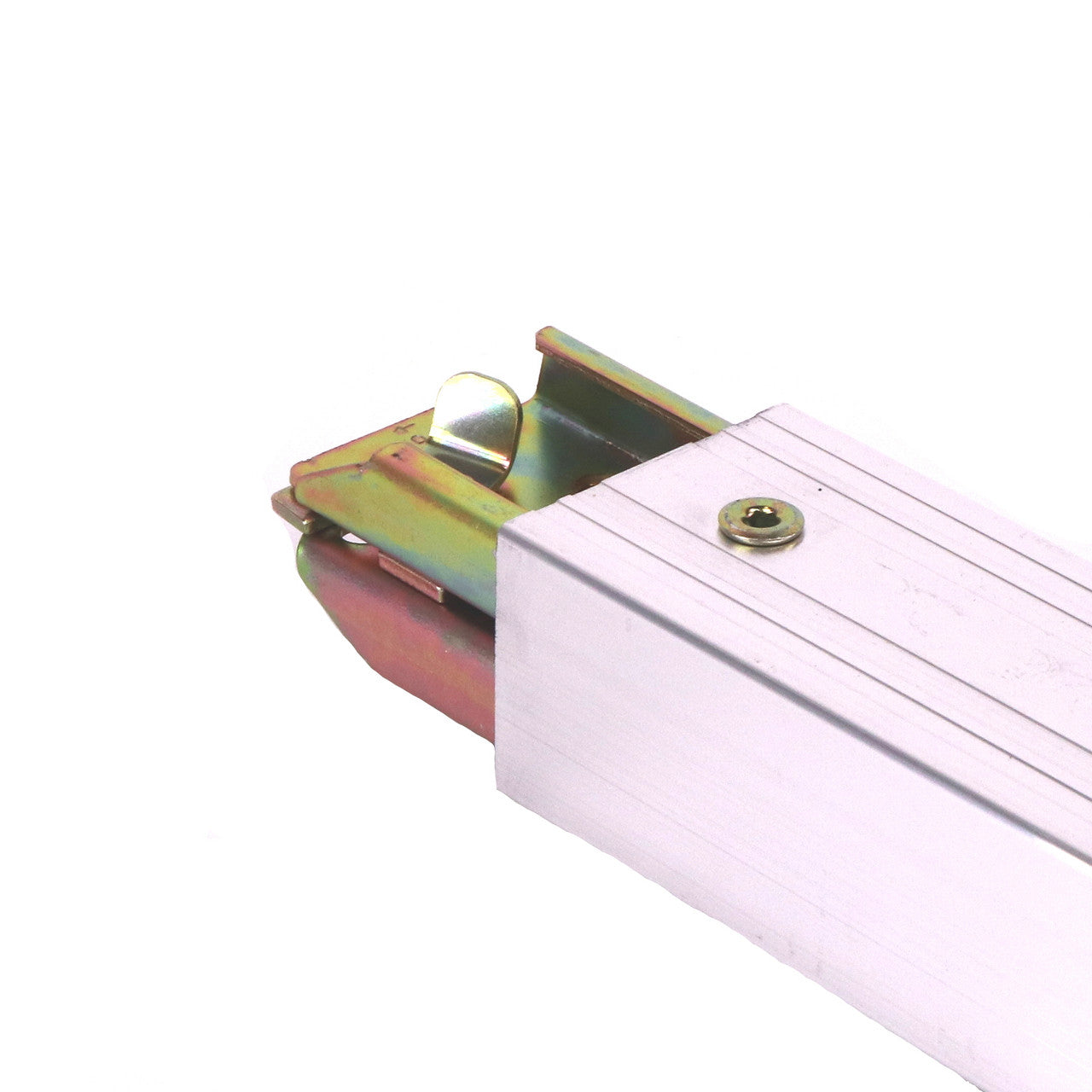

Our extruded high strength aluminum Heavy-Duty Series E or A Decking/Shoring Beam comes with our ergonomic KwikLatch Release Tab that's designed to make it easier to engage the Beam Head with the Series E or A Track from any position. Since it's located on the sides of the head assembly, this tab is less prone to damage and is easier to operate.
91" - 102" Heavy-Duty Series E or A Aluminum Decking/Shoring Beam – FE8000-12 Quick Specs:
- For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
- Decking Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
- Shoring Working Load Limit: 2,500 Lbs. / 1,135 Kgs.
- Series Type: Series E or A
- Width: 2.59 Inches
- Height: 3.77 Inches
- Minimum Length: 91.9 Inches
- Maximum Length: 102.3 Inches
- Weight: 22.7 Lbs. / 10.3 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Specifications
xKinedyne 91" - 102" Heavy-Duty Series E or A Aluminum Decking/Shoring Beam
Engineered for strength and designed for durability, Kinedyne's Heavy-Duty Series E or A Aluminum Decking/Shoring Beam with Kinedyne's KwikLatch Release Tab that adjusts from 91.9" to 102.3" is ideal for your trailer. Keep a good, strong hold over your cargo with this Beam.
Technical Specifications
- For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
- Decking Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
- Shoring Working Load Limit: 2,500 Lbs. / 1,135 Kgs.
- Series Type: Series E or A
- Width: 2.59 Inches
- Height: 3.77 Inches
- Minimum Length: 91.9 Inches
- Maximum Length: 102.3 Inches
- Weight: 22.7 Lbs. / 10.3 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Common Applications
- Trailer double-decking to increase payload capacity
- Shoring cargo to prevent load shift during transport
- Warehouse and distribution center trailer outfitting
- Industrial and facility material handling operations
- Maintenance fleets and logistics service providers
Safety and Stability
Manufactured from extruded high-strength aluminum with a hardened steel zinc-plated head assembly and ergonomic KwikLatch Release Tab, this beam provides rated decking and shoring working load limits to maintain cargo stability and reduce shifting during transit.
Key Benefits
- High capacity: 3,000 lb decking and 2,500 lb shoring working load limits
- Durable construction: extruded high-strength aluminum resists wear and corrosion
- Adjustable length: 91.9" to 102.3" for flexible trailer fitment
- Quick engagement: KwikLatch head assembly simplifies insertion into Series E or A track
- Space efficiency: enables safe double-decking to maximize trailer utilization
Frequently Asked Questions
How do I install the beam into a Series E or A track?
Position the beam at the desired location, then insert the hardened steel zinc-plated head assembly into the Series E or A track with a simple push until engaged.
What are the working load limits for decking and shoring?
Decking working load limit is 3,000 lbs (1,360 kgs). Shoring working load limit is 2,500 lbs (1,135 kgs).
Ordering and Shipping
To order or request shipping information for the Kinedyne 91" - 102" Heavy-Duty Series E or A Aluminum Decking/Shoring Beam, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team for pricing, lead times, and delivery options.
