Description
xAble to adjust from 91.9" to 102.3", Kinedyne's Series E or A Aluminum Decking/Shoring Beam is equipped with our KwikLatch Release Tab for easier use. With this Beam, you'll be able to add anchor points anywhere in your trailer.

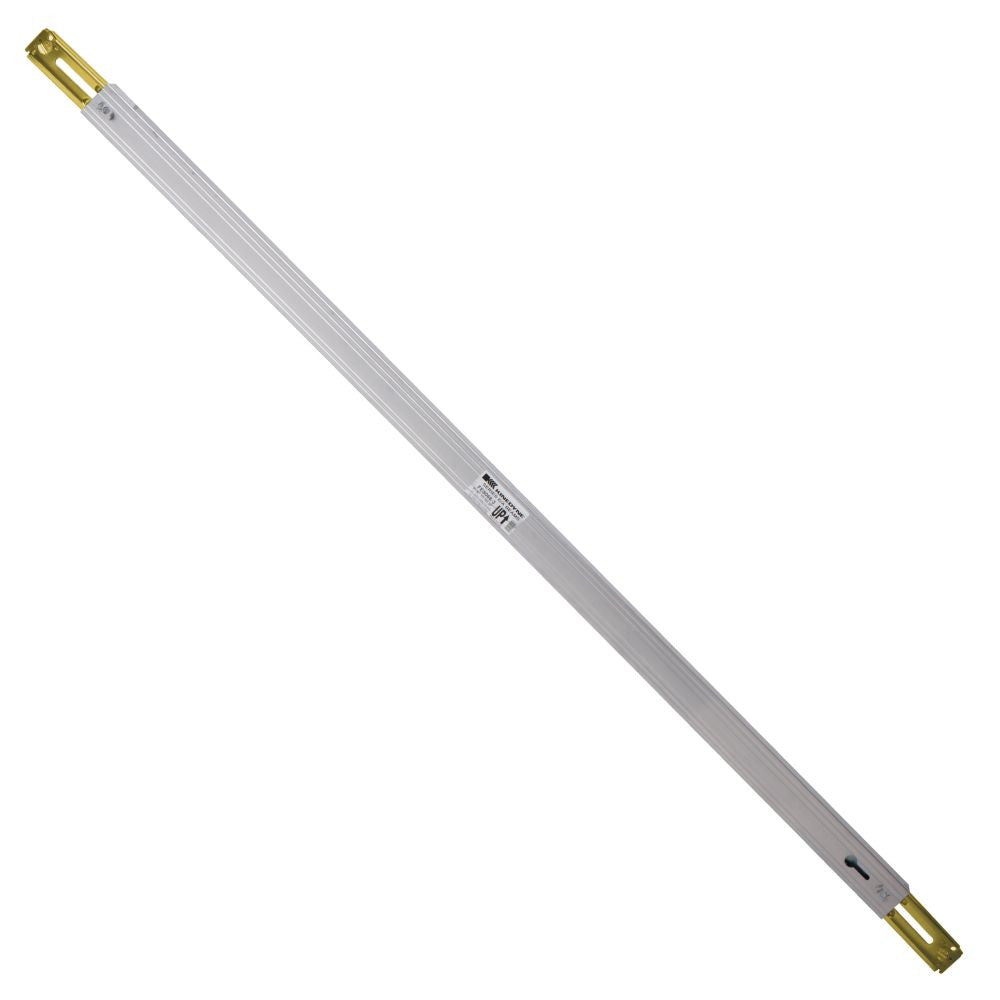

91-Inch to 102-Inch Series E or A Aluminum Deck/Shoring Beam
Kinedyne's Series E or A Aluminum Decking/Shoring Beam, which can adjust from 91.9 inches to 102.3 inches, is the ideal choice for your trailer. This Beam, made from extruded high strength aluminum, is designed to give you the strength you need for stacking your cargo with a decking working load limit of 2,200 Lbs. / 1,000 Kgs. or for keeping your cargo steady with a shoring working load limit of 2,000 Lbs. / 910 Kgs. When you use our Series E or A Aluminum Decking/Shoring Beam, your cargo does not move around in the back of your trailer, no matter how uneven the road is.
This Series E or A Aluminum Decking/Shoring Beam is equipped with our convenient KwikLatch Release Tab. Unlike standard beams in which the release tab is located at the top of the head where it's more susceptible to damage, Kinedyne's side-mount KwikLatch Release Tab reduces that potential damage while making it easier to disengage the Beam from the Track.

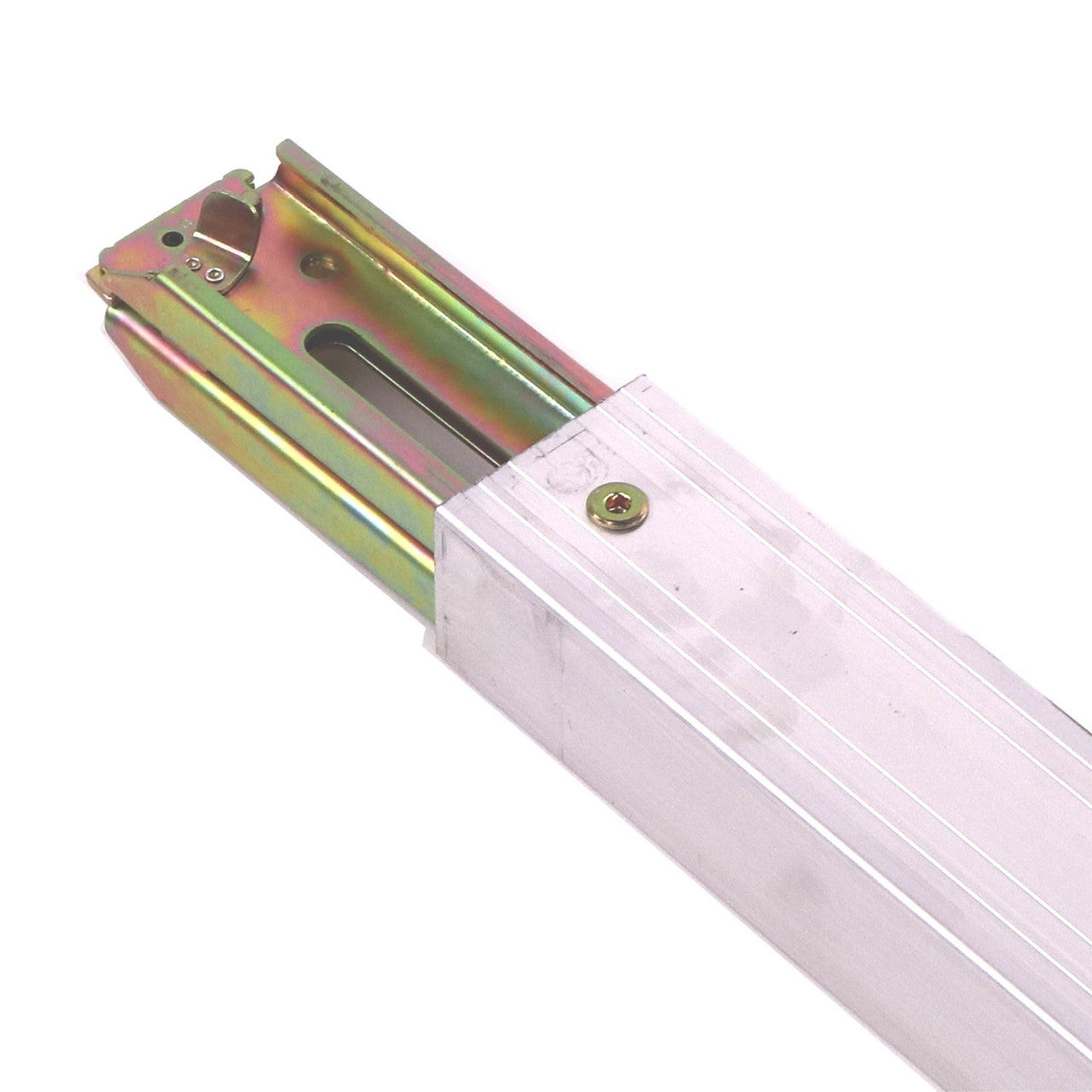

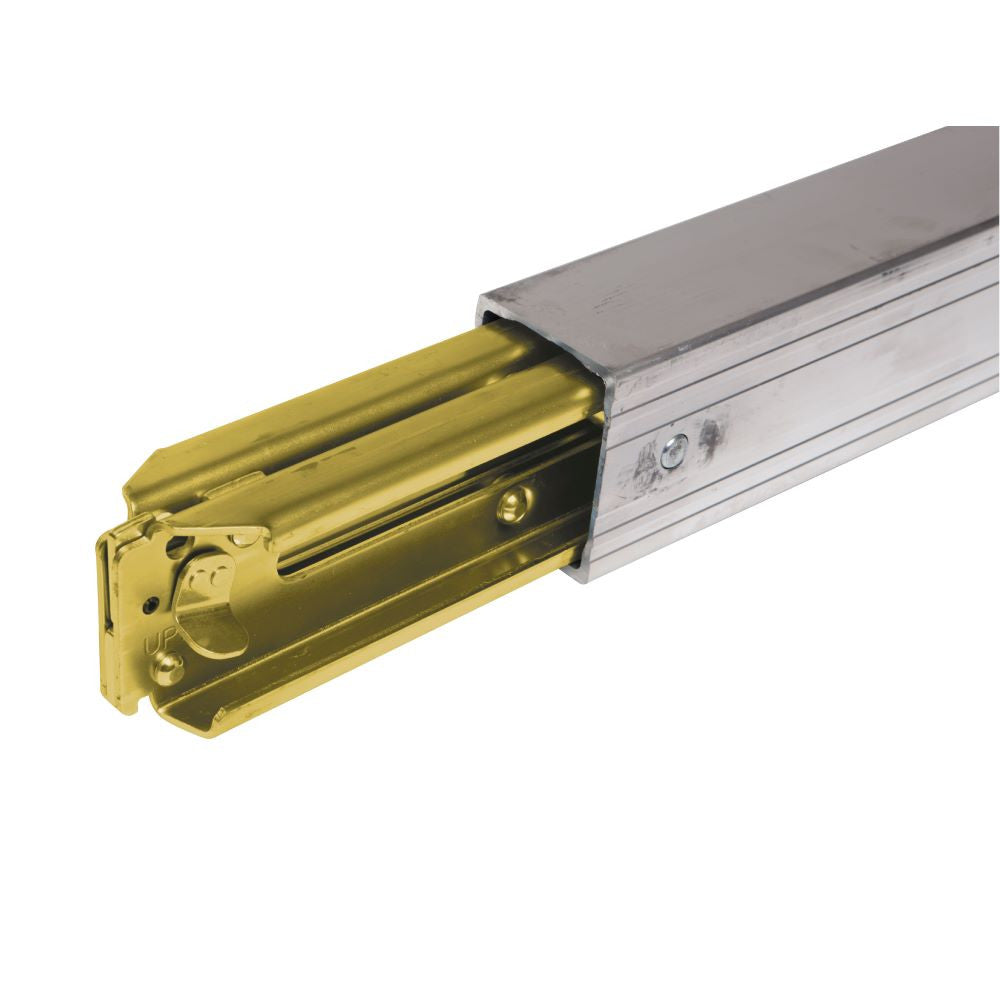

The head assembly of this Beam is made from hardened steel for extra strength and is coated in a zinc plated finish for extra durability. Equipped with our unique KwikLatch Release Tab, this head quickly and easily attaches to and detaches from your Series E or A Track with just a push. Once connected, our Series E or A Aluminum Decking/Shoring Beam stays firmly in place and works to keep your cargo secured throughout transit.
91" - 102" Series E or A Aluminum Decking/Shoring Beam – FE8066-3 Quick Specs:
- For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
- Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A
- Width: 2.57 Inches
- Height: 3.22 Inches
- Minimum Length: 91.9 Inches
- Maximum Length: 102.3 Inches
- Weight: 20.5 Lbs. / 9.3 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Specifications
xKinedyne 91" - 102" Series E or A Aluminum Decking/Shoring Beam
Able to adjust from 91.9" to 102.3", Kinedyne's Series E or A Aluminum Decking/Shoring Beam is equipped with the KwikLatch Release Tab for easier use. Made from extruded high-strength aluminum, the beam supports a decking WLL of 2,200 lbs (1,000 kg) and a shoring WLL of 2,000 lbs (910 kg). The side-mount KwikLatch Release Tab reduces exposure to damage and simplifies engagement with Series E or A track. The head assembly is hardened steel with a zinc-plated finish for added durability; once connected the beam holds securely in place throughout transit.
Technical Specifications
- For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
- Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
- Series Type: Series E or A
- Width: 2.57 Inches
- Height: 3.22 Inches
- Minimum Length: 91.9 Inches
- Maximum Length: 102.3 Inches
- Weight: 20.5 Lbs. / 9.3 Kgs.
- Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
Common Applications
- Trailer decking for intermodal and regional transport
- Load shoring within distribution and warehouse trailers
- Industrial cargo restraint for manufacturing shipments
- Facility material stacking and storage support
- Maintenance crews deploying temporary decking or shoring
Safety and Stability
The beam's extruded high-strength aluminum profile combined with a hardened steel, zinc-plated head assembly provides predictable performance under rated loads. Proper engagement with Series E or A track and use within specified working load limits are required to maintain safety and stability during transit.
Key Benefits
- High capacity: 2,200 lb decking and 2,000 lb shoring working load limits
- Durable construction: extruded aluminum body with hardened, zinc-plated steel head
- Improved serviceability: side-mount KwikLatch reduces damage and eases release
- Adjustable length: 91.9" to 102.3" for flexible trailer fit
- Secure engagement: KwikLatch head assembly locks reliably into Series E or A track
Frequently Asked Questions
What is the adjustable range of this beam?
The beam adjusts from 91.9 inches to 102.3 inches to fit common 96" and 102" wide trailers.
What are the working load limits?
Decking working load limit is 2,200 lbs (1,000 kg); shoring working load limit is 2,000 lbs (910 kg). Always use within rated limits.
