Description
xIf you want reliable security, then you need Kinedyne's Bottom Mount Bolt-On Winch that has a working load limit of 5,500 Lbs. / 2,500 Kgs. Once installed, you'll be able to secure nearly any kind of heavy-duty load to your flatbed.

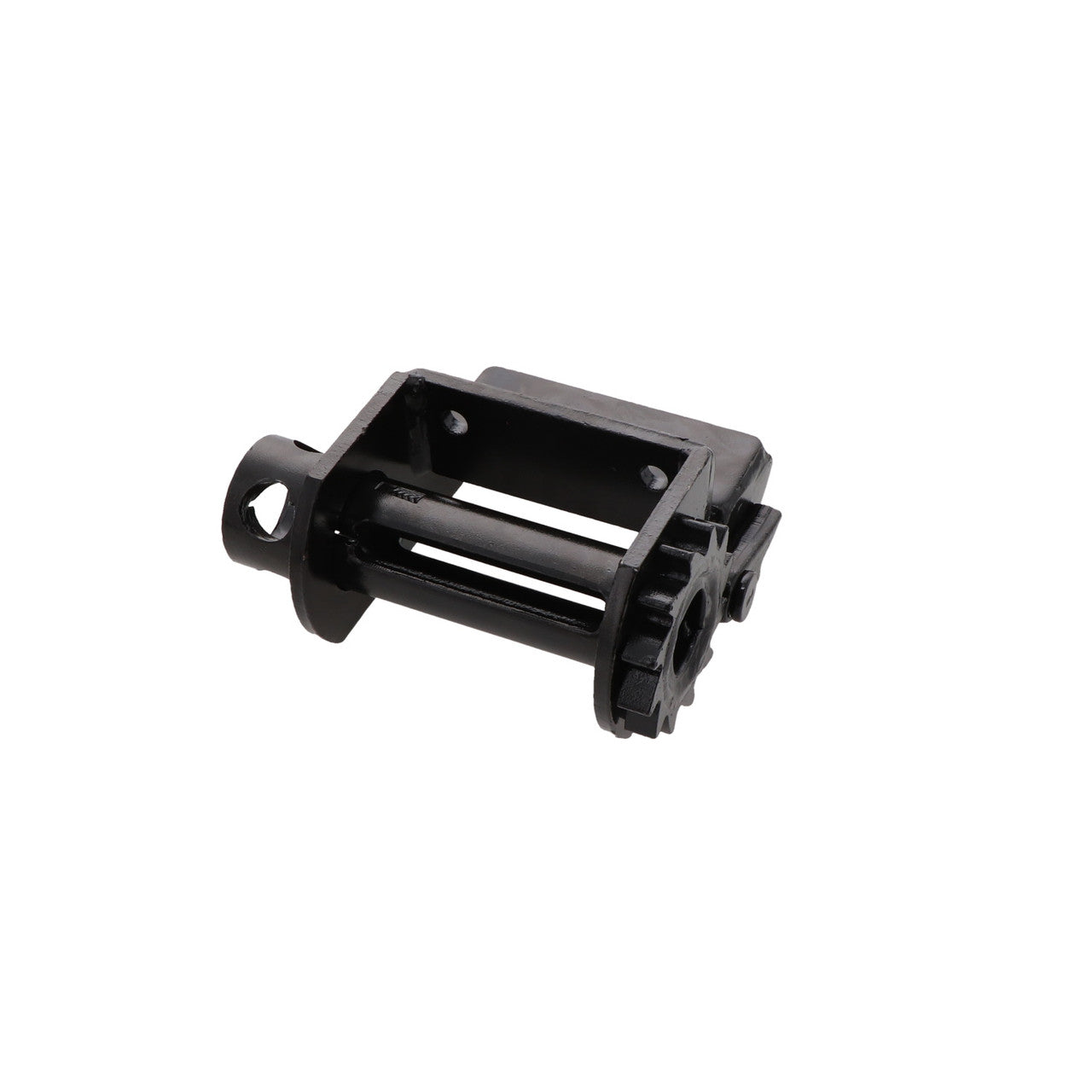

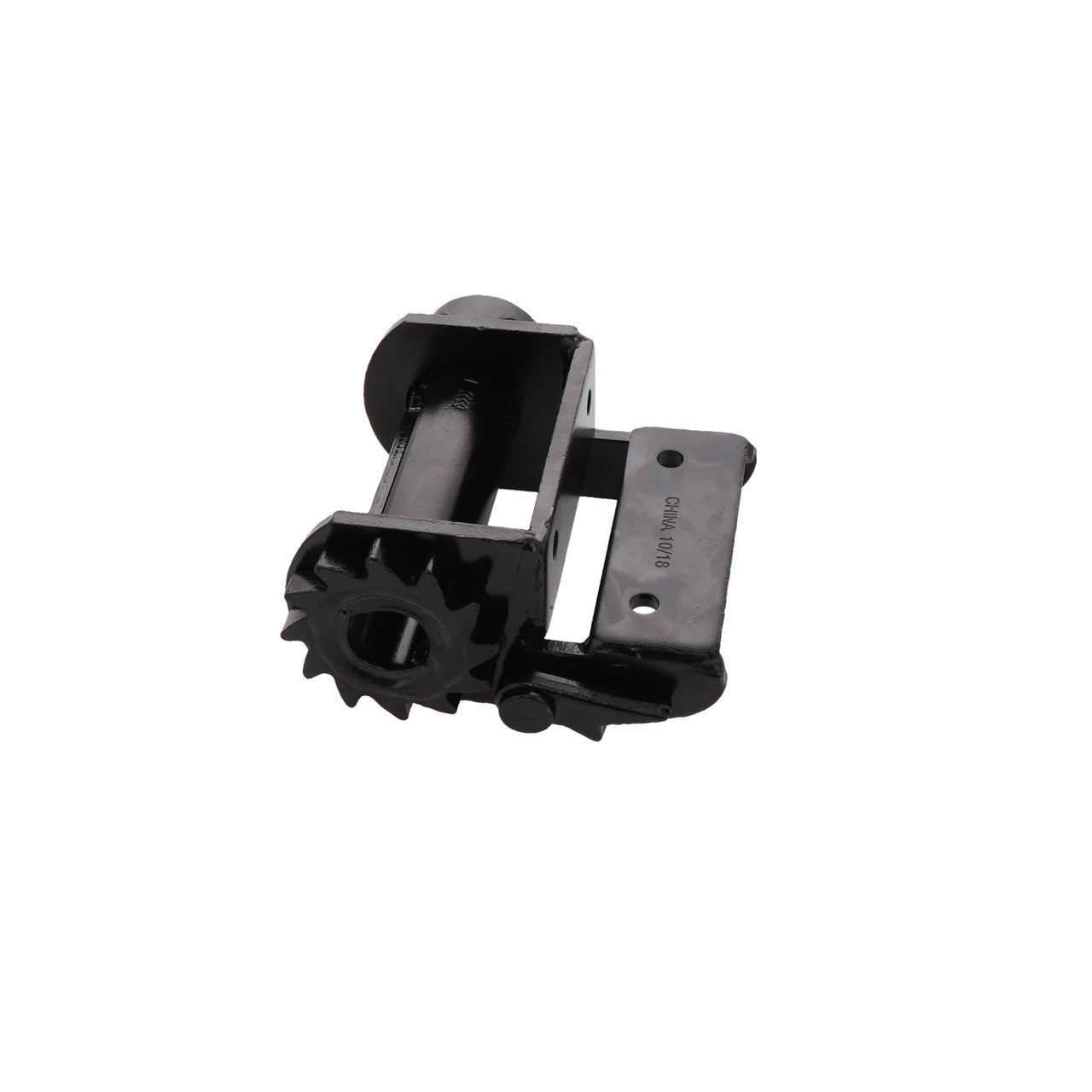

Bottom Mount Bolt-On Winch
Transporting important cargo can be tricky when you don't have the right kind of equipment. With Kinedyne's Bottom Mount Bolt-On Winch with a working load limit of 5,500 Lbs. / 2,500 Kgs. installed on the bottom flange of your vehicle's side rail, you'll be ready for nearly any kind of tie down job that needs to get done. Able to properly function in any type of weather, this winch will see your cargo firmly secured along your flatbed trailer in no time, saving you a lot of effort in the long run.
In order to provide you with a secure method of tying down your valuable cargo, we've engineered our Bottom Mount Bolt-On Winch using high-quality heat-treated carbon steel for both enhanced strength and extra durability. This winch is built to last while standing up to the many demands of the industry. Before using the winch, be sure to make a quick inspection to help make sure the winch is undamaged, free of buildup, and working properly.
Kinedyne winches are engineered to meet the regulations and standards of the North American Cargo Securement, CHP, WSTDA, DOT, and Canadian 905. Our winches are stamped with their country of origin, manufactured date, and working load limit in order to comply with North American Regulations. Winches shall not be loaded in excess of their working load limit.
Bottom Mount Bolt-On Winch – 12004BM Quick Specs:
- Working Load Limit: 5,500 Lbs. / 2,500 Kgs.
- Height: 6.88 Inches
- Width: 3.5 Inches
- Length: 7.87 Inches
- Weight: 8.2 Lbs. / 3.7 Kgs.
- Storage Capacity (Webbing Length): 30 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Specifications
xKinedyne Bottom Mount Bolt-On Winch
If you want reliable security, then you need Kinedyne's Bottom Mount Bolt-On Winch that has a working load limit of 5,500 Lbs. / 2,500 Kgs. Once installed, you'll be able to secure nearly any kind of heavy-duty load to your flatbed.
Transporting important cargo can be tricky when you don't have the right kind of equipment. With Kinedyne's Bottom Mount Bolt-On Winch with a working load limit of 5,500 Lbs. / 2,500 Kgs. installed on the bottom flange of your vehicle's side rail, you'll be ready for nearly any kind of tie down job that needs to get done. Able to properly function in any type of weather, this winch will see your cargo firmly secured along your flatbed trailer in no time, saving you a lot of effort in the long run.
In order to provide you with a secure method of tying down your valuable cargo, we've engineered our Bottom Mount Bolt-On Winch using high-quality heat-treated carbon steel for both enhanced strength and extra durability. This winch is built to last while standing up to the many demands of the industry. Before using the winch, be sure to make a quick inspection to help make sure the winch is undamaged, free of buildup, and working properly.
Kinedyne winches are engineered to meet the regulations and standards of the North American Cargo Securement, CHP, WSTDA, DOT, and Canadian 905. Our winches are stamped with their country of origin, manufactured date, and working load limit in order to comply with North American Regulations. Winches shall not be loaded in excess of their working load limit.
Technical Specifications
- Working Load Limit: 5,500 Lbs. / 2,500 Kgs.
- Height: 6.88 Inches
- Width: 3.5 Inches
- Length: 7.87 Inches
- Weight: 8.2 Lbs. / 3.7 Kgs.
- Storage Capacity (Webbing Length): 30 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
Common Applications
- Flatbed cargo securement on transportation trailers
- Commercial trucking and freight operations
- Warehouse and distribution center load restraint for outbound shipments
- Industrial facility and maintenance fleet tie-downs
Safety and Stability
This winch is designed for permanent bolt-on installation to the bottom flange of side rails and must not be loaded above its stamped working load limit. Regular inspection for damage, corrosion, and proper function is required to maintain secure load restraint and compliance with North American cargo securement standards.
Key Benefits
- High capacity: 5,500 lb (2,500 kg) working load limit for heavy-duty loads
- Durable construction: heat-treated carbon steel for industry longevity
- Compact footprint: low-profile dimensions suit side-rail mounting
- All-weather performance: components engineered for outdoor transport conditions
- Regulatory compliance: marked with origin, manufacture date, and WLL for inspections
Frequently Asked Questions
What is the working load limit?
The working load limit is 5,500 Lbs. / 2,500 Kgs. Do not exceed this limit.
How is the winch installed?
The winch is bolt-mounted to the bottom flange of a vehicle side rail; follow the Kinedyne instruction manual linked in Technical Specifications for torque and installation guidance.
Ordering and Shipping
To purchase or request lead times, contact Material Handling Canada. Visit materialhandlingcanada.com or contact our sales team to order, arrange shipping, or request technical support for the Kinedyne Bottom Mount Bolt-On Winch.
