Description

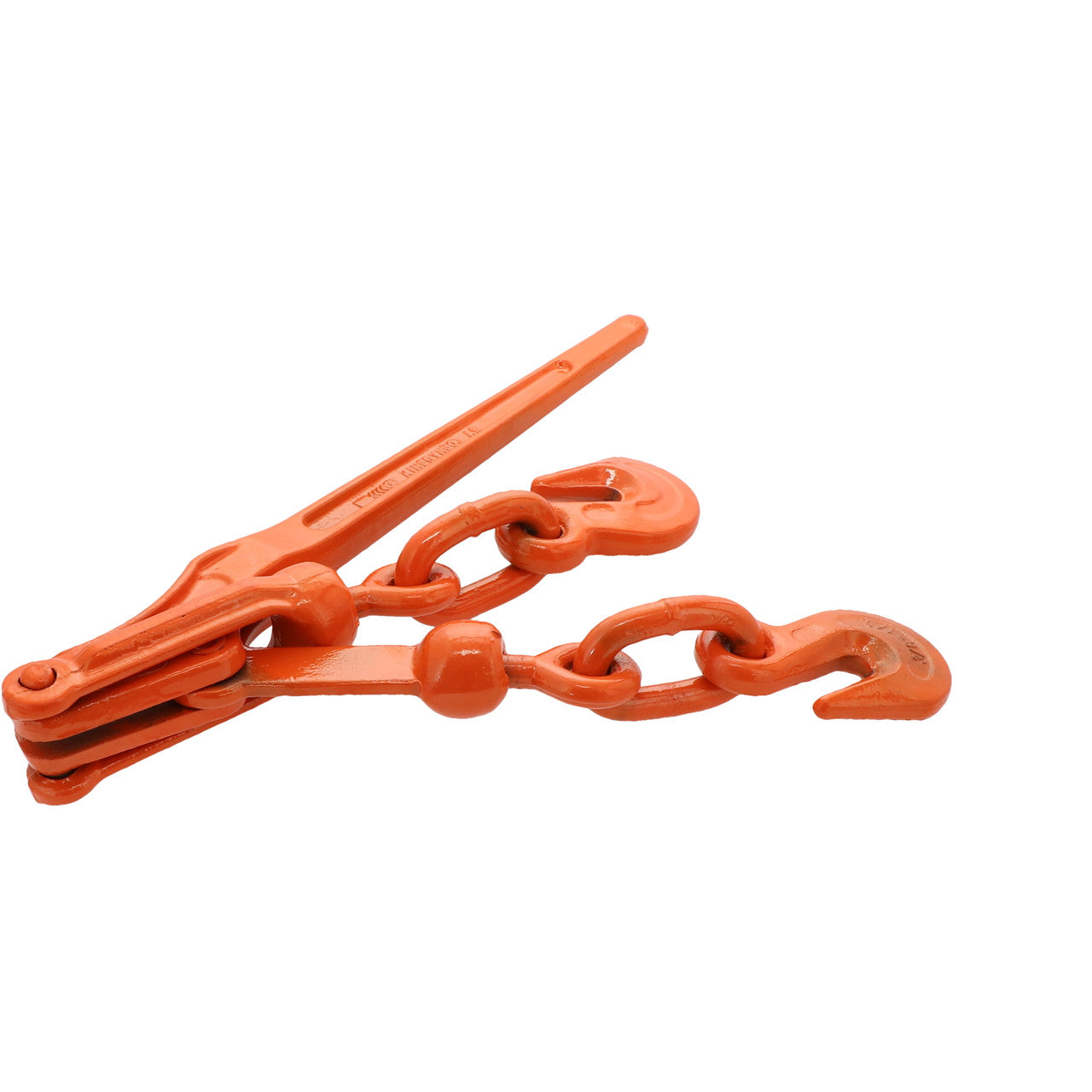

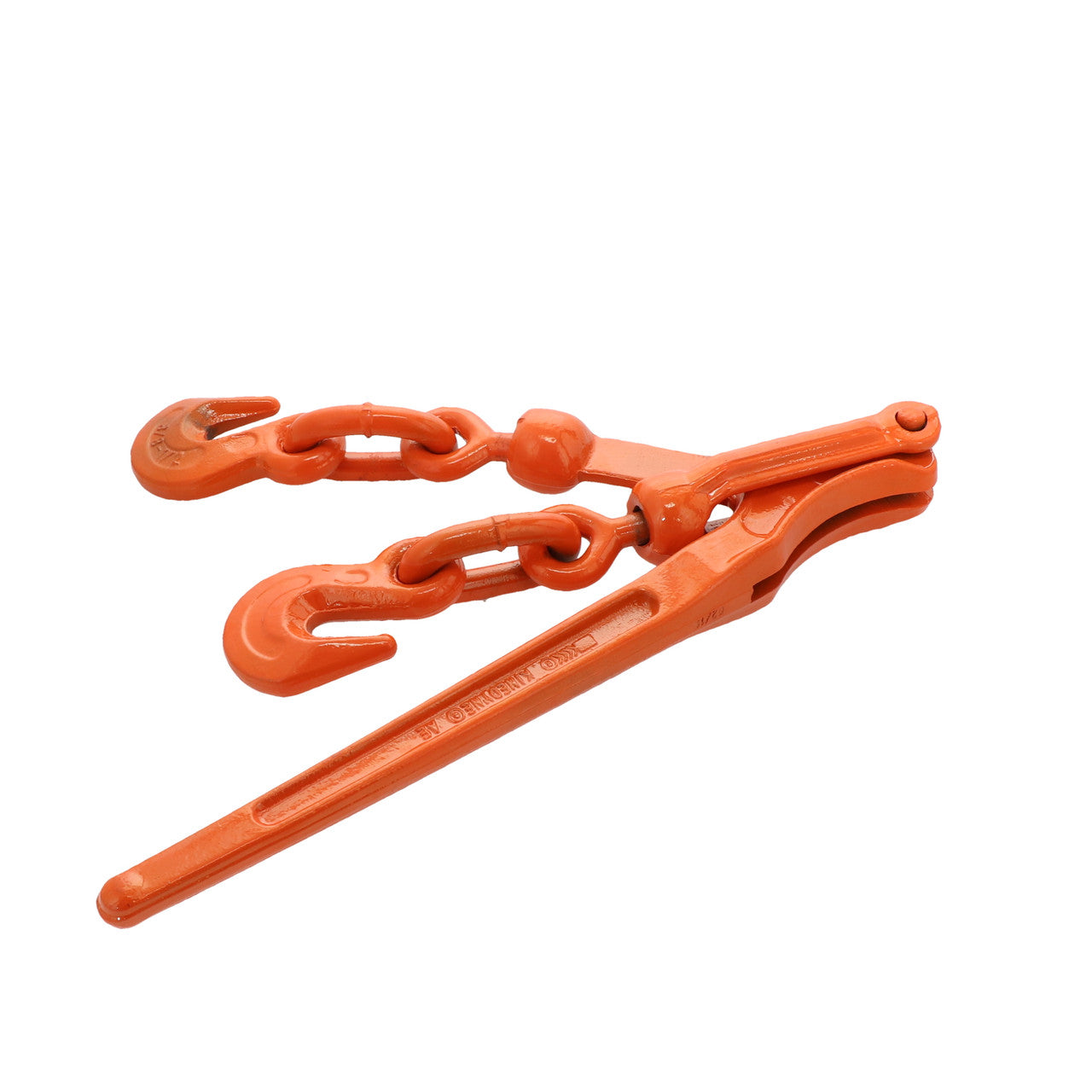

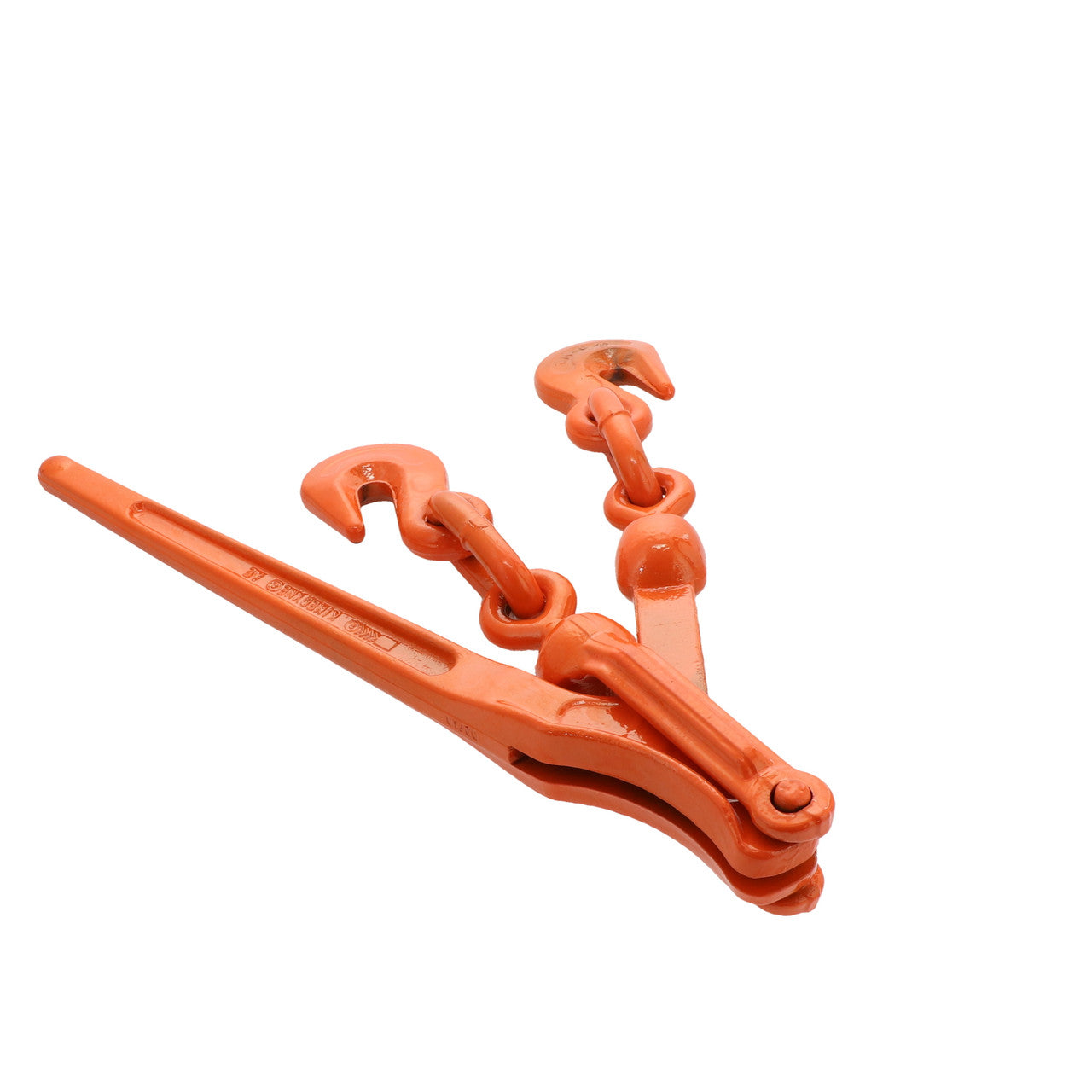

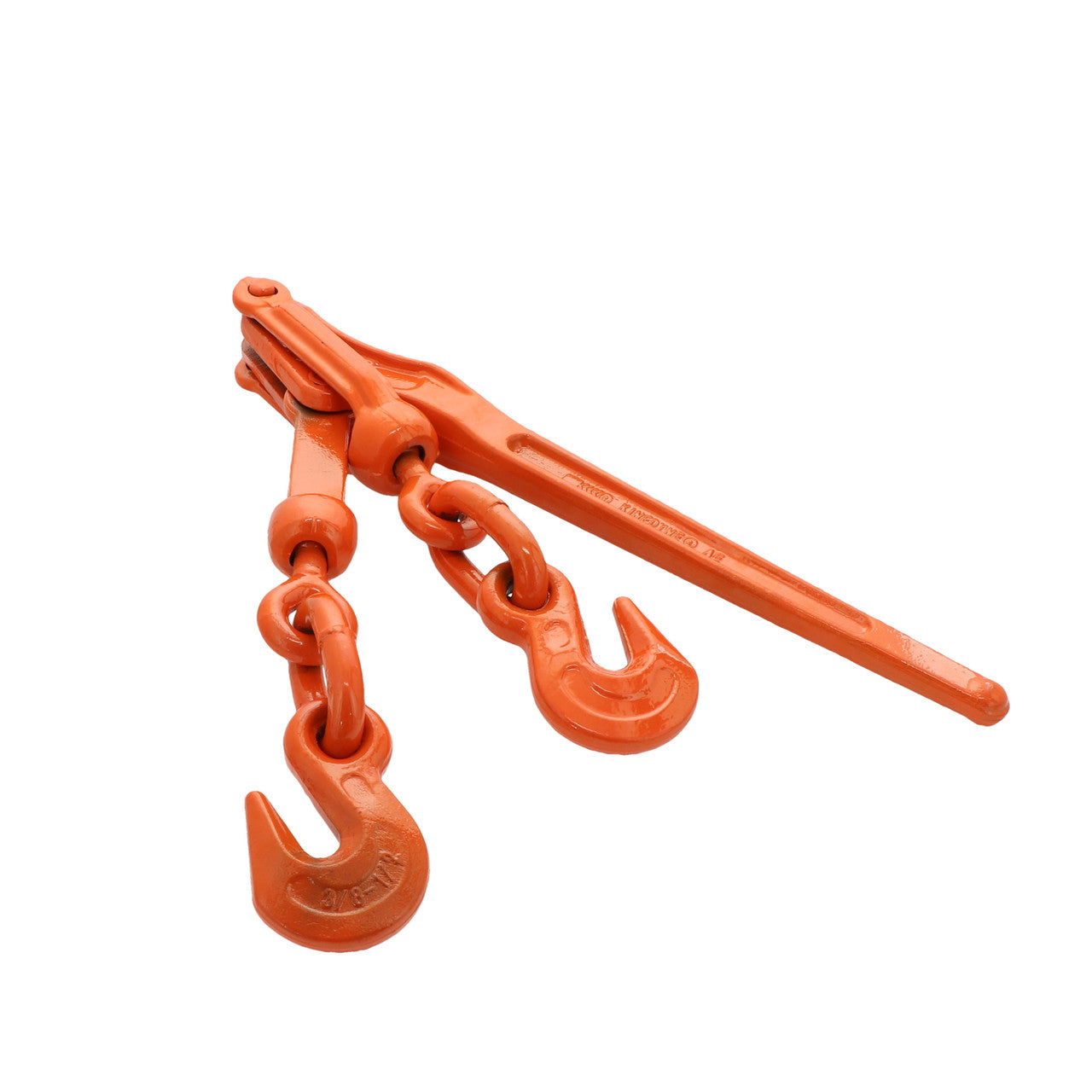

xKinedyne's Lever Style Chain Binder for Chain Sizes 1/2 inch to 5/8 inch is a simple and easy device that can handle an impressive working load limit of 13,000 Lbs. / 5,910 Kgs. Your heavy-duty loads are secure when you use this tensioning device.
Lever Style Chain Binder for 1/2-Inch to 5/8-Inch Chains
Able to handle a working load limit of 13,000 Lbs. / 5,910 Kgs., Kinedyne's Lever Style Chain Binder for Chain Sizes 1/2 inch to 5/8 inch is the ideal tensioning device for anyone in the agricultural, industrial, or cargo control industry that needs to secure their equipment or cargo with confidence. This is a quick and easy tool that is designed to make your tie down job as simple and straightforward as possible.
Our strong and sturdy Lever Style Chain Binder is equipped with the right hardware to get the job done. Our handle is manufactured from formed steel to provide you with a comfortable and reliable grip to gain optimal leverage over your load. Once the lever locks after rotating around the hinge 180 degrees, it stabilizes your load by providing powerful tensioning through the 5/8-inch Clevis Grab Hooks that keep a firm and solid grip upon the chain. These hooks are coated in a zinc plated finish to protect them against corrosion.
When tightening the lever's handle, be aware of any ice, snow, oil, rain, or other slippery substances under your feet that can cause slippage. Always make sure that your footing is secure. Also, always ensure that the load is stable before tightening or releasing tension.
Lever Style Chain Binder for 1/2" - 5/8" Chains – 10036XHD Quick Specs:
- Working Load Limit: 13,000 Lbs. / 5,910 Kgs.
- Width: 19 Inches
- Length: 31 Inches
- Weight: 19.4 Lbs. / 8.8 Kgs.
- Type/Style of Chain Binder: Lever
- Type of Hook: Clevis Grab
- Size of Hook: 5/8 Inch
Specifications
xKinedyne Lever Style Chain Binder for 1/2" - 5/8" Chains
Kinedyne's Lever Style Chain Binder for Chain Sizes 1/2 inch to 5/8 inch is a simple and easy device that can handle an impressive working load limit of 13,000 Lbs. / 5,910 Kgs. Your heavy-duty loads are secure when you use this tensioning device.
Technical Specifications
- Working Load Limit: 13,000 Lbs. / 5,910 Kgs.
- Width: 19 Inches
- Length: 31 Inches
- Weight: 19.4 Lbs. / 8.8 Kgs.
- Type/Style of Chain Binder: Lever
- Type of Hook: Clevis Grab
- Size of Hook: 5/8 Inch
Common Applications
- Cargo securement for commercial trucking and transport
- Load tie-down in distribution and warehouse operations
- Industrial and facility equipment restraint
- Agricultural equipment and implements
- Maintenance and shop use for securing heavy components
Safety and Stability
The lever style chain binder provides positive mechanical tensioning with clevis grab hooks and a formed steel handle for leverage. Operators should ensure stable footing and clear working surfaces before tensioning or releasing to avoid slippage and load shift.
Key Benefits
- High capacity: 13,000 lb working load limit for heavy-duty loads
- Durable construction: formed steel handle and zinc-plated clevis grab hooks for corrosion resistance
- Efficient operation: lever action provides rapid tensioning and release
- Secure retention: clevis grab hooks maintain firm grip on compatible chain
- Portable and serviceable: compact weight and dimensions for field use and storage
Frequently Asked Questions
What chain sizes does this binder support?
The binder is designed for chain sizes from 1/2 inch to 5/8 inch and uses 5/8-inch clevis grab hooks.
What is the working load limit?
The working load limit is 13,000 Lbs. (5,910 Kgs.). Follow applicable regulations and use compatible chain rated for this capacity.
